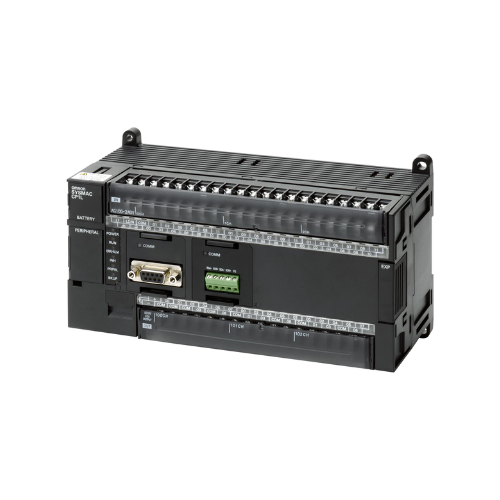

CP1L-M60DR-A | Omron M-Series PLC CPU with 36 DC Inputs
- Regular price
- $1,445.00
- Sale price
- $1,445.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CP1L-M60DR-A
Description
The Omron CP1L-M60DR-A is a compact M-series PLC CPU module with 36 DC inputs, 24 relay outputs, and AC supply voltage. It supports 10K program steps and 32K words of data memory for versatile control in mid-size automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC & PAC Control Systems |
| Part Number | CP1L-M60DR-A |
| Subcategory | CPU Modules |
| Series | CP1 |
| Supply Voltage Type | 100–240 VAC |
| Frequency | 50/60 Hz |
| Number of Inputs | 36 |
| Input Type | DC (PNP/NPN) |
| Number of Outputs | 24 |
| Output Type | Relay |
| Program Capacity | 10K Steps |
| Data Memory Capacity | 32K Words |
| Logic Execution Time | 0.55 μs |
| USB Ports | 1 |
| RS-232/RS-422/RS-485 | Optional (via adapter) |
| Number of Encoder Inputs | 4 Channels (Max. 100 kHz) |
| Max Analog I/O Channels | 25 |
| Max Local I/O Points | 180 |
| Max Expansion Units | 3 |
| Built-in 24 VDC Output | 300 mA |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 75°C |
| Operating Humidity | 25% to 85% (non-condensing) |
| Product Dimensions (HxWxD) | 90 × 195 × 85 mm |
| Weight | 820 g (1.81 lb) |
Information About CP1L-M60DR-A
The CP1L-M60DR-A belongs to Omron’s CP1 series of modular PLCs, engineered to deliver advanced control in a space-saving format. It features 36 digital DC inputs (PNP/NPN) and 24 relay outputs, powered by a 100–240 VAC supply and supporting up to 180 I/O points with expansion. With 10K steps of program capacity and 32K words of data memory, it supports fast logic execution at 0.55 μs per basic instruction. Communication is enabled via USB, with optional serial and encoder connectivity, making it suitable for applications requiring moderate speed, flexibility, and expandability.
Key Features:
-
36 DC Inputs and 24 Relay Outputs: Offers a large I/O capacity for integrated automation in a single controller unit.
-
10K Step Program Capacity: Supports mid-size programs with fast instruction execution time of 0.55 μs.
-
32K Word Data Memory: Allows for extensive data logging, configuration, and control operations.
-
100–240 VAC Supply Voltage: Compatible with standard industrial power sources and includes built-in 24 VDC auxiliary output.
-
Expandable Architecture: Supports up to 3 expansion units and a maximum of 180 local I/O points.
-
USB Programming Port: Provides convenient connectivity for setup, monitoring, and debugging.
-
Communication Options: Compatible with RS-232C, RS-422, and RS-485 via optional adapters for versatile integration.
-
Encoder and Analog Support: Handles up to 4 encoder channels (100 kHz) and 25 analog I/O points for motion and sensor integration.
The CP1L-M60DR-A delivers the reliability and precision required for scalable, cost-effective control in small to mid-size industrial automation systems.
