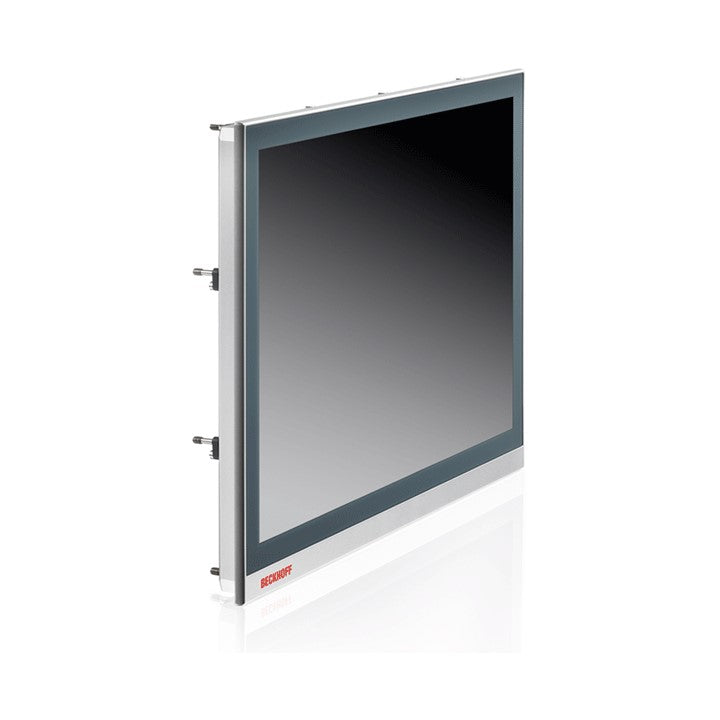

CP2912-0000 | Beckhoff 12" Multi-Touch Built-In Control Panel, DVI/USB Extended Interface, 24 V DC
- Regular price
- $2,590.00
- Sale price
- $2,590.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CP2912-0000
Description
The Beckhoff CP2912-0000 is a 12-inch multi-touch built-in Control Panel designed for intuitive operation and high-quality visualization in industrial applications. Featuring DVI/USB Extended interfaces, it supports connections up to 50 meters from the PC and delivers responsive multi-finger touch performance with IP65 front protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Human Machine Interface (HMI) |
| Part Number | CP2912-0000 |
| Subcategory | Multi-Touch Control Panel |
| Display Size | 12" diagonal |
| Display Resolution | 800 × 600 pixels |
| Touch Screen Type | Multi-finger touch screen |
| Display Function | Display only (no integrated PC) |
| Interface Type | DVI/USB Extended (DVI-E and USB-E) |
| Connection Distance | Up to 50 m from the PC using DVI/USB Extended |
| Compatible Video Input | DVI-E input compatible with standard DVI PC output |
| USB Transmission | USB-E 2.0 (480 Mbit/s) or USB 3.0 for direct connection up to 5 m |
| Front USB Port | 1 × USB port in the front |
| Additional USB Ports | 2 × USB 3.0 ports (limited to USB 2.0 beyond 3 m) |
| Ethernet Port | RJ45 for USB-E 2.0 |
| Power Supply | 24 V DC |
| Mounting Type | Built-in mounting with pull-out clamping levers |
| Installation Method | Tool-free mounting, no loose parts |
| Protection Rating (Front) | IP65 |
| Protection Rating (Rear) | IP20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +85°C |
| Housing Material | Aluminum front panel with industrial-grade finish |
| Dimensions (Approx.) | Compact 12-inch format |
| Weight | 0.91 lbs (approx. 0.4 kg) |
| Approvals/Markings | CE, UL |
Information About CP2912-0000
The Beckhoff CP2912-0000 is part of the CP29xx series of multi-touch built-in Control Panels, offering high-performance operation and modern industrial design. Its 12-inch touch display combines ergonomic usability with robust construction, suitable for demanding HMI environments. Equipped with DVI and USB Extended interfaces, the panel enables remote installation up to 50 meters from the connected PC, making it ideal for control cabinets and operator stations where space optimization is essential. The multi-finger touch technology supports intuitive gesture-based operation, while the IP65-rated front ensures protection against dust and water ingress. Installation is simple and secure through pull-out clamping levers, eliminating the need for separate mounting hardware.
Key Features:
- 12-Inch Multi-Touch Display: Provides responsive and accurate operation for modern industrial control and visualization.
- DVI/USB Extended Interface: Allows long-distance connection (up to 50 m) between panel and PC using standard DVI and USB-E cables.
- High-Quality Display: 800 × 600 resolution ensures clear and detailed visualization of control data.
- Front USB Access: Convenient front-mounted USB port for data transfer and peripheral connections.
- Robust Industrial Design: IP65 protection on the front safeguards against dust and water in harsh environments.
- Versatile Connectivity: Includes DVI input, RJ45 port for USB-E 2.0, and two USB 3.0 ports for flexibility.
- Efficient Mounting System: Pull-out clamping levers enable tool-free installation and maintenance.
- 24 V DC Power Supply: Compatible with standard industrial voltage systems.
- Wide Operating Range: Designed to operate reliably in temperatures from 0°C to +55°C.
- Compact and Lightweight: Streamlined design for space-saving installation in control cabinets.
- User-Friendly Interface: Multi-finger touch capability enables intuitive navigation and gesture control.
The CP2912-0000 delivers the reliability and precision required for machine visualization, operator interface control, and real-time system monitoring in industrial automation.
