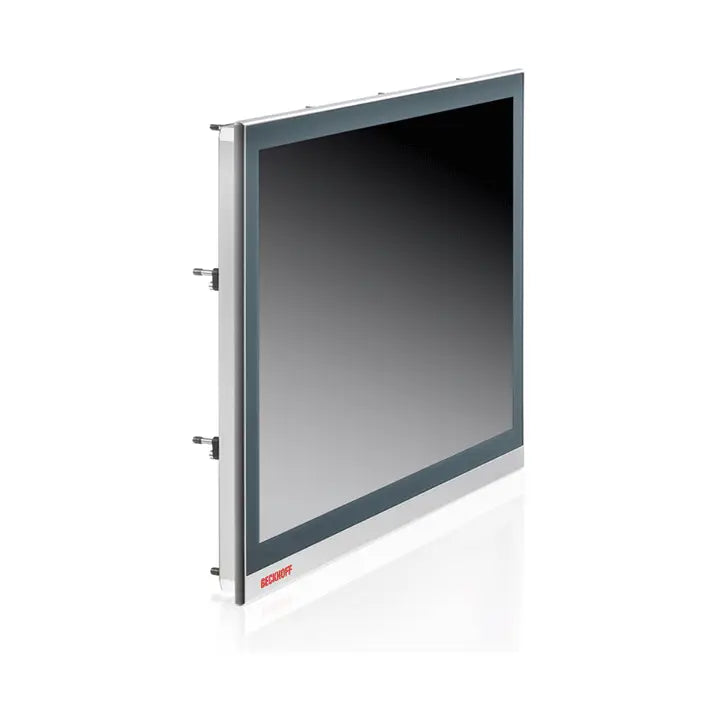

CP2921-0000 | Beckhoff 21.5" Multi-Touch Built-In Control Panel with DVI/USB
- Regular price
- $4,797.00
- Sale price
- $4,797.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CP2921-0000
Description
The Beckhoff CP2921-0000 built-in control panel is a 21.5-inch multi-touch display designed for industrial HMI visualization and operator interaction. It features a full HD resolution panel with DVI/USB extended interface technology for flexible installation distances. This control panel is engineered for reliable operation in industrial automation environments requiring precise multi-touch input.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial HMI |
| Part Number | CP2921-0000 |
| Subcategory | Built-In Control Panels |
| Device Type | Multi-Touch Built-In Control Panel |
| Display Size | 21.5 inch |
| Resolution | 1920 × 1080 (Full HD) |
| Touch Technology | Multi-Finger Touch Screen |
| Panel Technology | Beckhoff Multi-Touch Sensors |
| Display Orientation | Horizontal (Vertical Optional) |
| Interfaces | DVI input, USB-E, USB 3.0, 2 × USB 3.0 |
| Connection Technology | DVI-E and USB-E |
| Max Connection Distance | Up to 50 m |
| Housing Material | Aluminum with Glass Front |
| Installation Method | Pull-Out Clamping Levers |
| Power Supply | 24 V DC |
| Protection Rating | Front IP65 / Rear IP20 |
| Operating Temperature | 0 to 55 °C |
| Weight | Approx. 6.5 kg (14.3 lbs) |
Information About CP2921-0000
The CP2921-0000 is part of Beckhoff’s CP29xx series of multi-touch built-in control panels, designed for direct integration into machine housings and control cabinets. It utilizes Beckhoff-developed multi-touch sensor technology combined with a robust aluminum housing and glass front. The panel supports DVI-E and USB-E connectivity, enabling distances of up to 50 meters between the display and control hardware. Its design allows both horizontal and optional vertical orientation while maintaining high ingress protection on the front side.
Key Features:
- 21.5-Inch Full HD Display: Provides a 1920 × 1080 resolution for clear visualization.
- Multi-Touch Interface: Supports multi-finger touch input using Beckhoff sensor technology.
- DVI-E and USB-E Connectivity: Enables extended connection distances up to 50 meters.
- Industrial Aluminum Housing: Durable enclosure with glass front for long-term use.
- Flexible Installation Method: Uses pull-out clamping levers for secure panel mounting.
- High Front-Side Protection: Rated IP65 on the front for industrial environments.
- Orientation Flexibility: Supports horizontal installation with optional vertical mounting.
The CP2921-0000 delivers the reliability and precision required for industrial HMI visualization and operator control applications.
