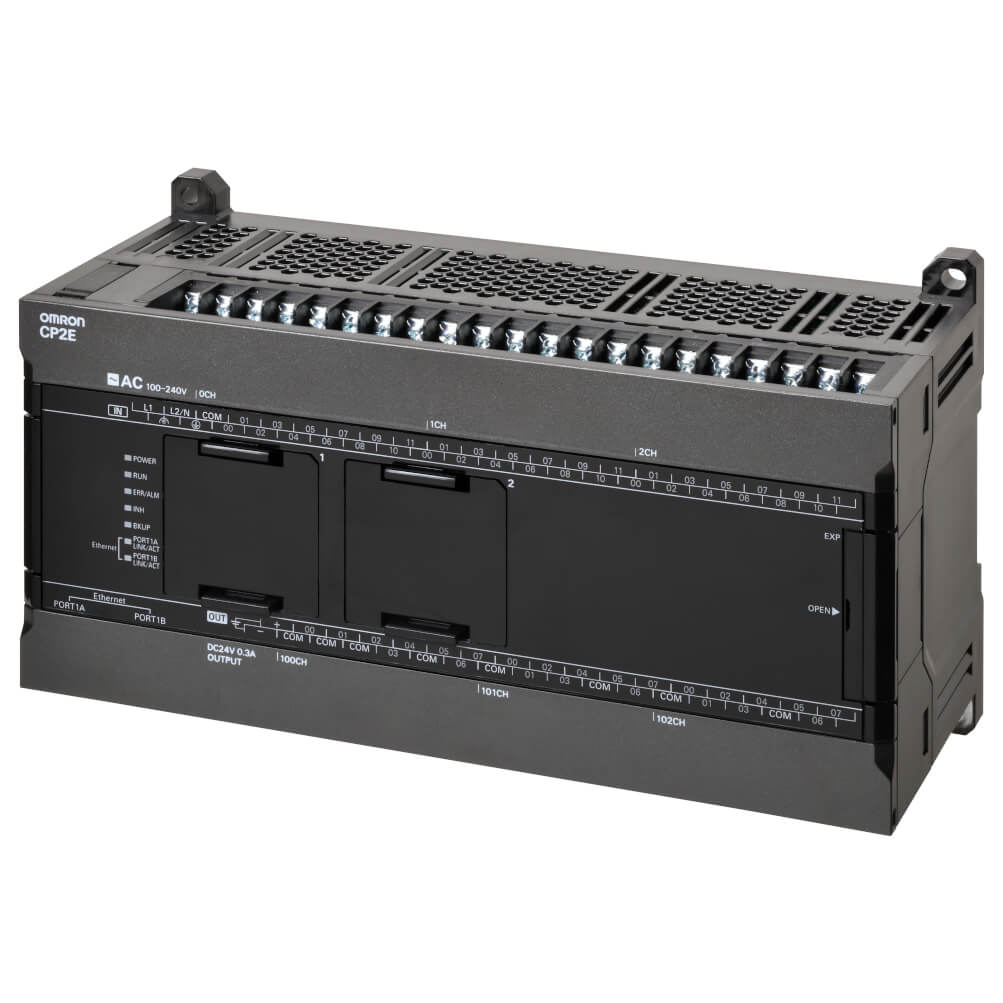

CP2E-N60DT-D | Omron CP2E Compact PLC Controller 36 Inputs 24 NPN Outputs Dual Ethernet 24VDC CPU Unit
- Regular price
- $442.00
- Sale price
- $442.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CP2E-N60DT-D
Description
The Omron CP2E-N60DT-D is a compact PLC CPU unit designed for high-speed machine control with integrated digital I/O and Ethernet connectivity. The CP2E-N60DT-D provides 36 digital inputs and 24 NPN transistor outputs for industrial automation sequencing and positioning applications. It operates on 24 VDC power and supports advanced control performance with fast logic execution and expansion capability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron Automation and Safety |
| Category | Automation Control Modules |
| Part Number | CP2E-N60DT-D |
| Subcategory | PLC Controllers |
| Series | CP2E Series |
| Supply Voltage | 24 VDC |
| Digital Inputs | 36 Inputs (PNP/NPN) |
| Digital Outputs | 24 Outputs (NPN Transistor) |
| Program Capacity | 20K Steps |
| Data Memory Capacity | 16K Words |
| Logic Execution Time | 0.23 µs |
| Ethernet Ports | 2 × Ethernet TCP/IP |
| Encoder Input Channels | 6 Channels |
| Max Encoder Frequency | 100 kHz |
| Max PTP Axes | 4 Axes |
| Max Pulse Output Frequency | 100 kHz |
| Max Local I/O Points | 180 |
| Max Expansion Units | 3 |
| Operating Temperature Range | -20°C to 60°C |
| Mounting Type | DIN Rail |
| Termination Style | Screw Terminal |
| Product Dimensions (H × W × D) | 90 mm × 195 mm × 80 mm |
| Weight | 745 g |
Information About CP2E-N60DT-D
The CP2E-N60DT-D is part of Omron’s CP2E Series PLC platform, engineered for scalable automation systems requiring integrated networking and high-speed control response. It includes built-in dual Ethernet TCP/IP ports to support industrial communication and system integration without additional modules. The controller supports up to 20K program steps and 16K words of data memory for complex machine logic and process automation tasks. With support for encoder inputs, pulse outputs, and expansion up to three units, it is designed for compact production lines, packaging machinery, and industrial motion-ready control panels.
Key Features:
-
CP2E Series PLC CPU Unit: Compact programmable controller for machine sequencing and automation control.
-
36 Digital Inputs Support: Provides PNP/NPN compatible input channels for flexible sensor wiring.
-
24 NPN Transistor Outputs: Solid-state outputs designed for fast switching of industrial loads.
-
Dual Ethernet TCP/IP Ports: Includes 2 built-in Ethernet connections for networked automation integration.
-
High-Speed Logic Execution: Logic execution time rated at 0.23 µs for responsive machine operation.
-
Encoder and Pulse Output Capability: Supports 6 encoder channels and pulse outputs up to 100 kHz.
-
Expansion Ready Architecture: Supports up to 180 local I/O points and up to 3 expansion units.
-
Wide Operating Temperature Range: Designed for industrial operation from -20°C to 60°C.
The CP2E-N60DT-D delivers the reliability and precision required for Ethernet-connected PLC control in compact industrial automation systems.
