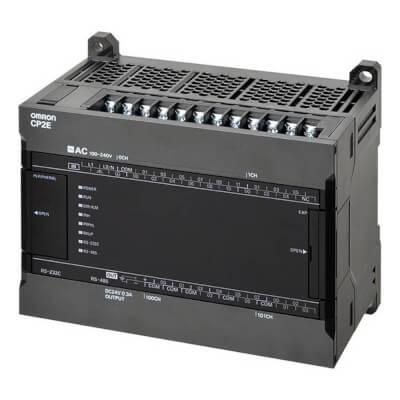

CP2E-S30DT1-D | Omron CP2E Compact PLC Controller 18 Inputs 12 PNP Outputs USB RS-232 RS-485 24VDC CPU Unit
- Regular price
- $322.00
- Sale price
- $322.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CP2E-S30DT1-D
Description
The Omron CP2E-S30DT1-D is a compact PLC CPU unit designed for small to mid-range machine control applications with integrated digital I/O and serial communications. The CP2E-S30DT1-D provides 18 digital inputs and 12 PNP transistor outputs operating on a 24 VDC supply for industrial automation sequencing and motion-ready control tasks. It supports USB and RS-232C/RS-485 connectivity for programming and device integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron Automation and Safety |
| Category | Automation Control Modules |
| Part Number | CP2E-S30DT1-D |
| Subcategory | PLC Controllers |
| Series | CP2E Series |
| Controller Type | Compact PLC CPU Unit (Standard Type) |
| Supply Voltage | 24 VDC |
| Digital Inputs | 18 Inputs (PNP/NPN) |
| Digital Outputs | 12 Outputs (PNP Transistor) |
| Program Capacity | 16K Steps |
| Data Memory Capacity | 8K Words |
| Logic Execution Time | 0.23 µs |
| Communication Ports | USB, RS-232C, RS-485 |
| USB Ports | 1 |
| RS-232 Ports | 1 |
| RS-485 Ports | 1 |
| Encoder Input Channels | 6 Channels |
| Max Encoder Frequency | 100 kHz |
| Max PTP Axes | 2 Axes |
| Max Pulse Output Frequency | 100 kHz |
| Max Local I/O Points | 150 |
| Max Expansion Units | 3 |
| Mounting Type | DIN Rail |
| Termination Style | Screw Terminal |
| Operating Temperature Range | -20°C to 60°C |
| Product Dimensions (H × W × D) | 90 mm × 130 mm × 80 mm |
| Weight | 0.30 kg |
Information About CP2E-S30DT1-D
The CP2E-S30DT1-D is part of Omron’s CP2E Series standard-type compact controllers, engineered for space-efficient automation panels requiring integrated I/O and high-speed execution. It includes 16K program steps and 8K words of data memory to support machine logic, process automation, and positioning functions. The unit provides encoder input capability and pulse outputs up to 100 kHz for basic motion and speed control applications. With DIN rail mounting, screw terminal wiring, and expansion support up to three units, it is designed for scalable industrial control systems in packaging, production, and assembly equipment.
Key Features:
-
CP2E Series Compact PLC CPU Unit: Standard-type controller for industrial automation and sequencing applications.
-
18 Digital Input Channels: Supports PNP/NPN input wiring for flexible sensor integration.
-
12 PNP Transistor Outputs: Solid-state outputs designed for fast switching of automation devices.
-
High-Speed Logic Execution: Logic execution time rated at 0.23 µs for responsive control performance.
-
Serial and USB Communication Support: Includes RS-232C, RS-485, and USB port connectivity.
-
Encoder and Pulse Output Capability: Supports 6 encoder channels and pulse outputs up to 100 kHz.
-
Expansion Ready Architecture: Allows up to 150 local I/O points with up to 3 expansion units.
-
Wide Industrial Temperature Range: Designed for operation from -20°C to 60°C in control environments.
The CP2E-S30DT1-D delivers the reliability and precision required for compact PLC-based control in industrial automation systems.
