CP6202-0011-0000 | Beckhoff 12" Control Panel PC TFT 800×600 SVGA with Resistive Touch
- Regular price
- $3,348.00
- Sale price
- $3,348.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CP6202-0011-0000
Description

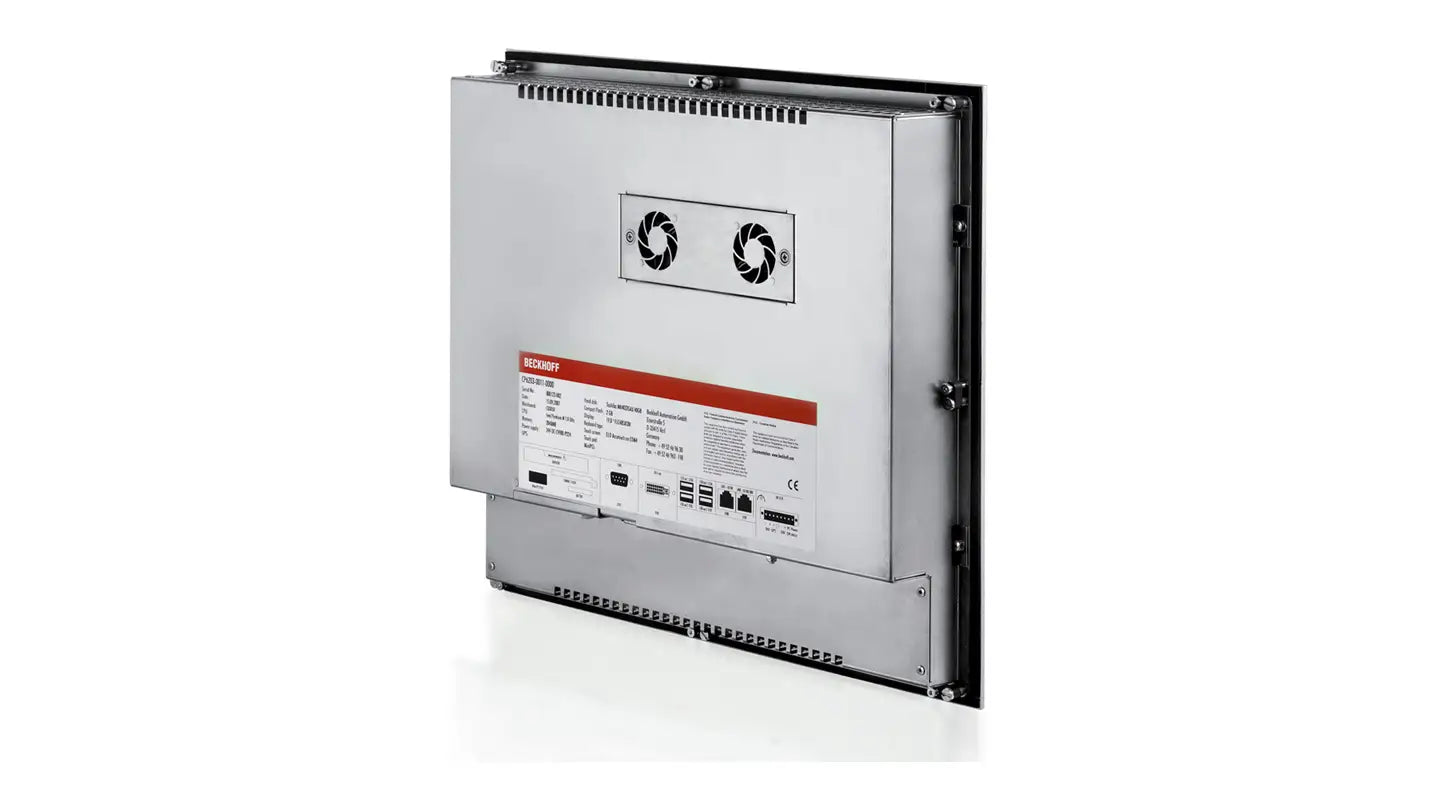

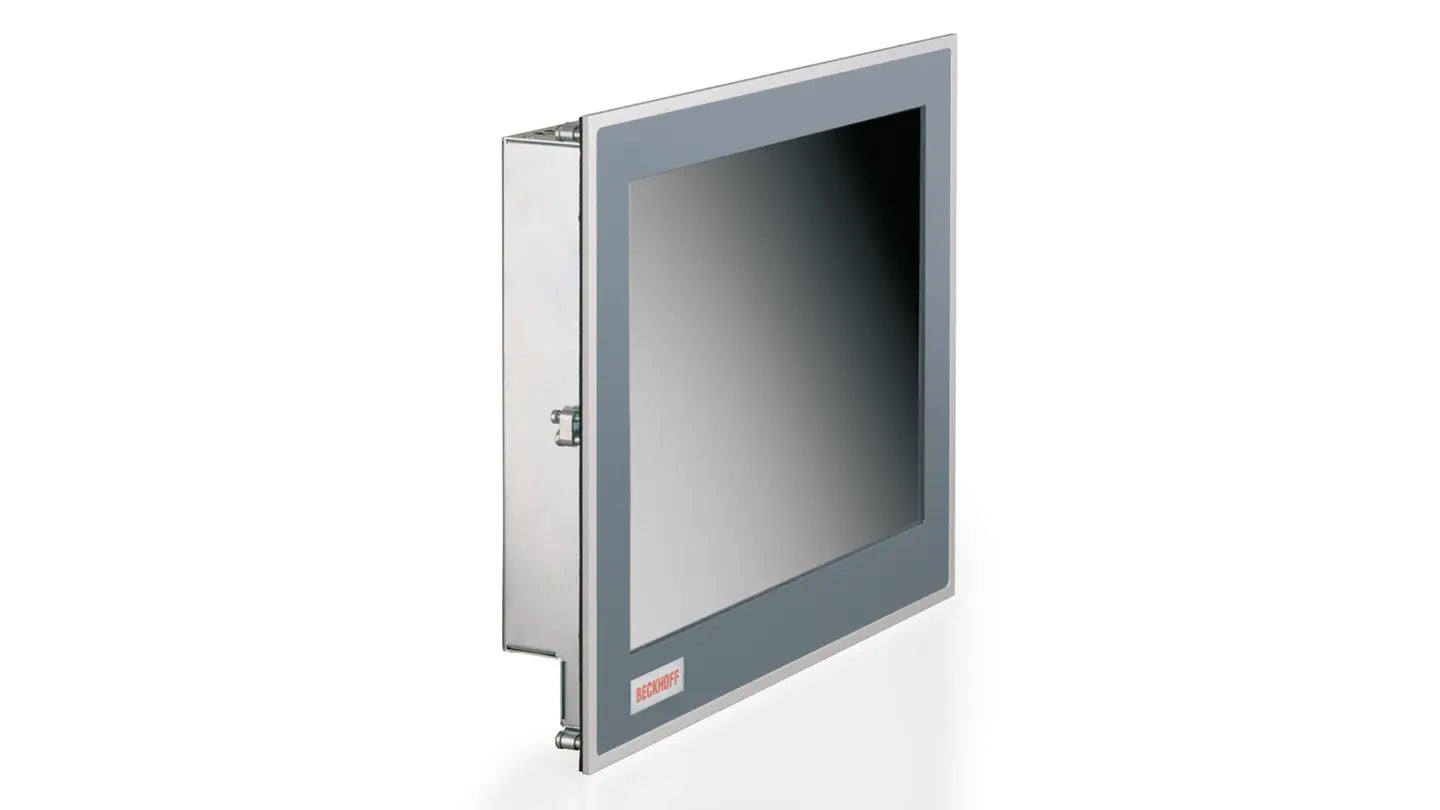

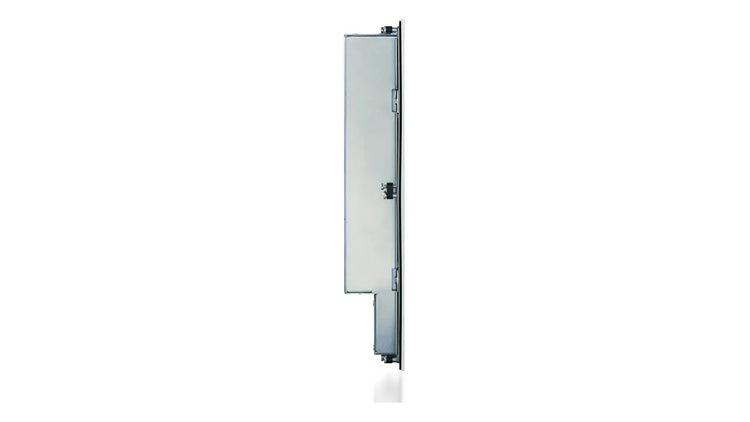

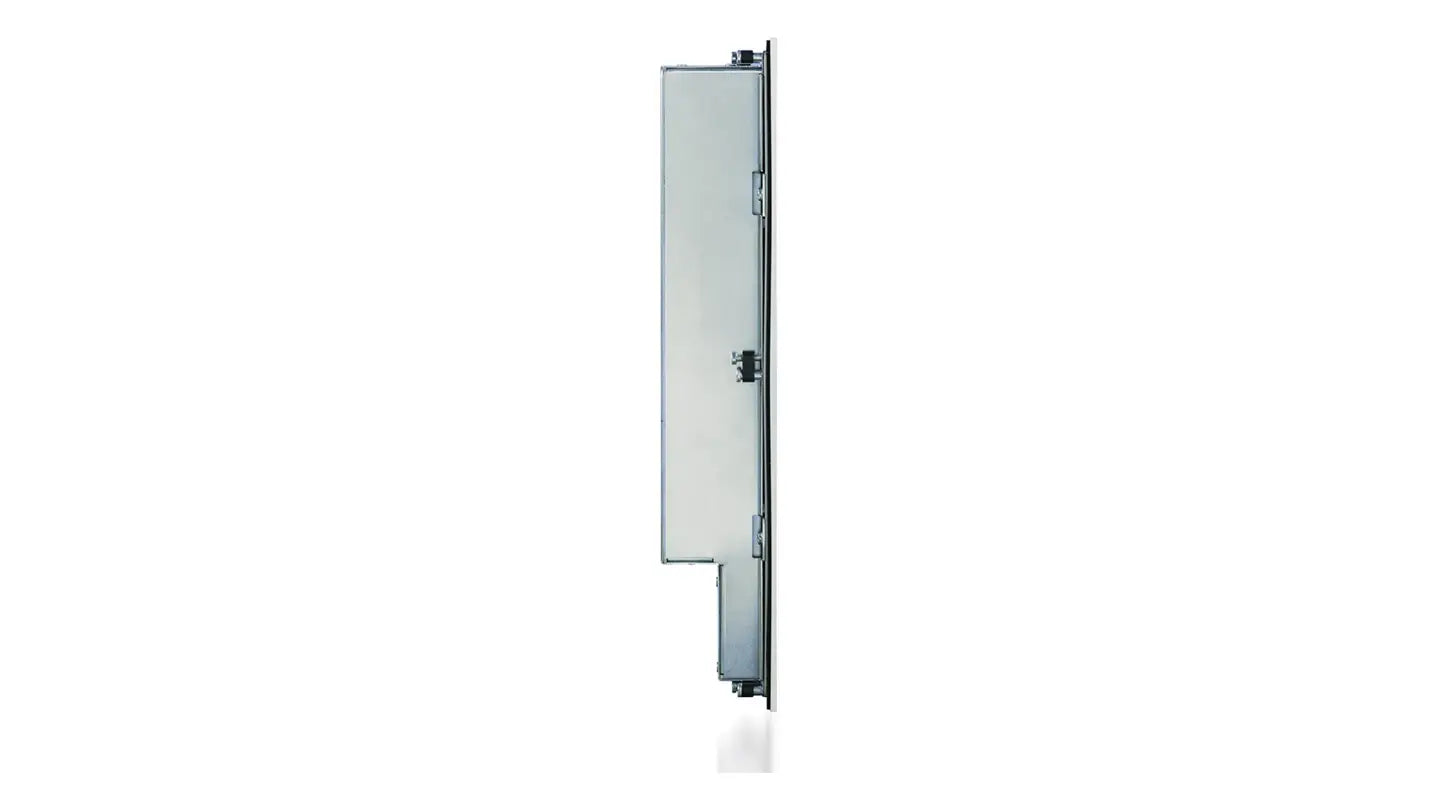

The Beckhoff CP6202-0011-0000 is a 12-inch control panel PC from the CP62xx series, designed with an 800 × 600 SVGA TFT display and resistive touch functionality. It integrates 2 GB DDR3 RAM, a CFast storage slot, and multiple industrial interfaces, making it suitable for automation control and visualization tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Control Panels |
| Part Number | CP6202-0011-0000 |
| Subcategory | Panel PCs |
| Series | CP62xx |
| Display Size | 12-inch |
| Display Type | TFT |
| Resolution | 800 × 600 (SVGA) |
| Touchscreen | Resistive touch |
| Processor | Intel Atom (variant, depending on model configuration) |
| RAM | 2 GB DDR3 |
| Mass Storage | CFast slot |
| Ethernet Interfaces | 2 × 100/1000BASE-T |
| Serial Interfaces | 1 × RS232, 1 × RS422/RS485 |
| USB Ports | 4 × USB 2.0 |
| Mounting | Panel mounting |
| Power Supply | 24 V DC |
| Protection Class | IP65 (front), IP20 (rear) |
| Operating Temperature | 0…+55 °C |
| Storage Temperature | -25…+65 °C |
| Relative Humidity | 95%, non-condensing |
| Dimensions | Standard panel form factor |
| Weight | 5.1 kg |
Information About CP6202-0011-0000
The CP6202-0011-0000 is part of Beckhoff’s CP62xx series, developed as robust control panel PCs for industrial applications. It features a 12-inch TFT display with SVGA resolution and resistive touchscreen technology, ensuring clear visualization and reliable operator input. The system integrates an Intel Atom processor, 2 GB of DDR3 memory, and a CFast slot for mass storage, making it a compact yet powerful computing solution. With dual Ethernet, serial ports, and four USB interfaces, the panel offers versatile connectivity while maintaining IP65 protection on the front for demanding automation environments.
Key Features:
-
12-Inch TFT Display: Provides 800 × 600 SVGA resolution for clear process monitoring and visualization.
-
Resistive Touchscreen: Ensures precise and durable input control, suitable for industrial environments.
-
Integrated Intel Atom Processor: Offers reliable processing power for automation and visualization applications.
-
Efficient Memory and Storage: Equipped with 2 GB DDR3 RAM and a CFast slot for fast, stable data storage.
-
Versatile Connectivity: Includes dual Ethernet ports, four USB 2.0 ports, and RS232/RS422/RS485 interfaces for flexible integration.
-
Industrial-Grade Protection: Features IP65 protection on the front panel and IP20 on the rear, safeguarding against dust and moisture.
-
Compact Panel Mounting Design: Saves space and integrates easily into control cabinets or operator stations.
-
Wide Operating Range: Designed for reliable use in temperatures from 0 °C to +55 °C with storage down to -25 °C.
The CP6202-0011-0000 delivers the reliability and precision required for industrial control and visualization in automation systems.
Description
The Beckhoff CP6202-0011-0000 is a 12-inch control panel PC from the CP62xx series, designed with an 800 × 600 SVGA TFT display and resistive touch functionality. It integrates 2 GB DDR3 RAM, a CFast storage slot, and multiple industrial interfaces, making it suitable for automation control and visualization tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Control Panels |
| Part Number | CP6202-0011-0000 |
| Subcategory | Panel PCs |
| Series | CP62xx |
| Display Size | 12-inch |
| Display Type | TFT |
| Resolution | 800 × 600 (SVGA) |
| Touchscreen | Resistive touch |
| Processor | Intel Atom (variant, depending on model configuration) |
| RAM | 2 GB DDR3 |
| Mass Storage | CFast slot |
| Ethernet Interfaces | 2 × 100/1000BASE-T |
| Serial Interfaces | 1 × RS232, 1 × RS422/RS485 |
| USB Ports | 4 × USB 2.0 |
| Mounting | Panel mounting |
| Power Supply | 24 V DC |
| Protection Class | IP65 (front), IP20 (rear) |
| Operating Temperature | 0…+55 °C |
| Storage Temperature | -25…+65 °C |
| Relative Humidity | 95%, non-condensing |
| Dimensions | Standard panel form factor |
| Weight | 5.1 kg |
Information About CP6202-0011-0000
The CP6202-0011-0000 is part of Beckhoff’s CP62xx series, developed as robust control panel PCs for industrial applications. It features a 12-inch TFT display with SVGA resolution and resistive touchscreen technology, ensuring clear visualization and reliable operator input. The system integrates an Intel Atom processor, 2 GB of DDR3 memory, and a CFast slot for mass storage, making it a compact yet powerful computing solution. With dual Ethernet, serial ports, and four USB interfaces, the panel offers versatile connectivity while maintaining IP65 protection on the front for demanding automation environments.
Key Features:
-
12-Inch TFT Display: Provides 800 × 600 SVGA resolution for clear process monitoring and visualization.
-
Resistive Touchscreen: Ensures precise and durable input control, suitable for industrial environments.
-
Integrated Intel Atom Processor: Offers reliable processing power for automation and visualization applications.
-
Efficient Memory and Storage: Equipped with 2 GB DDR3 RAM and a CFast slot for fast, stable data storage.
-
Versatile Connectivity: Includes dual Ethernet ports, four USB 2.0 ports, and RS232/RS422/RS485 interfaces for flexible integration.
-
Industrial-Grade Protection: Features IP65 protection on the front panel and IP20 on the rear, safeguarding against dust and moisture.
-
Compact Panel Mounting Design: Saves space and integrates easily into control cabinets or operator stations.
-
Wide Operating Range: Designed for reliable use in temperatures from 0 °C to +55 °C with storage down to -25 °C.
The CP6202-0011-0000 delivers the reliability and precision required for industrial control and visualization in automation systems.
