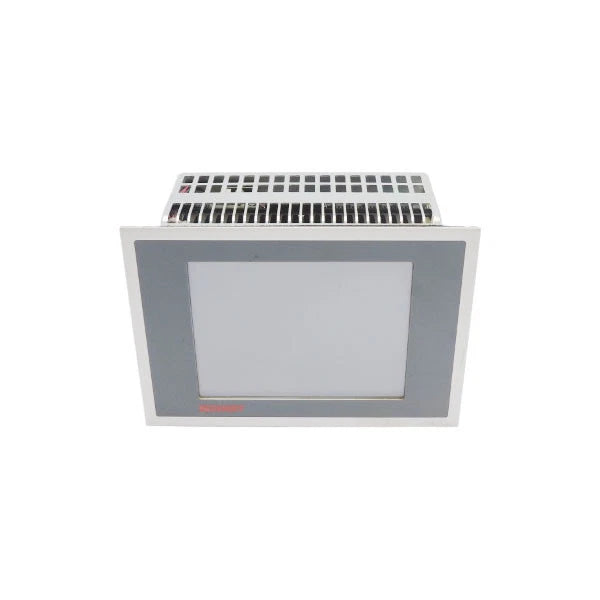

CP6207-0001-0020 | Beckhoff Panel PC 5.7-Inch Touchscreen Operator Interface
- Regular price
- $3,692.00
- Sale price
- $3,692.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CP6207-0001-0020
Description
The Beckhoff CP6207-0001-0020 is a high-performance operator interface panel PC designed for industrial automation. It integrates a 5.7-inch 640×480 touchscreen with scalable Intel® processor options, ranging from Celeron® to Core™ i7. Built for cabinet mounting, it provides reliable computing, communication, and control functions in harsh environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | HMI / MMI / OIT |
| Part Number | CP6207-0001-0020 |
| Subcategory | Operator Interface |
| Series | CP62xx |
| Display Size | 5.7-inch VGA touchscreen (640×480) |
| Processor Options | Intel® Celeron® (2c), Core™ i3 (4c), Core™ i5 (6c), Core™ i7 (8c) |
| Cooling Method | Fan cartridge with dual ball-bearing, speed-controlled fans |
| Expansion Slots | 2 PCIe module slots |
| Ethernet Interfaces | 2 independent Ethernet ports |
| Storage Options | CFast card and 2½-inch HDD or SSD |
| Data Security | NOVRAM fail-safe storage |
| Operating System | Windows 10 IoT Enterprise |
| Motherboard | 3½-inch highly integrated motherboard |
| Power Supply | 24 V DC PSU, optional integrated UPS |
| EtherCAT Control | Centralized control via EtherCAT |
| Dimensions | Rear cover 30 mm deeper with PCIe |
| Mounting | Front-panel mount in control cabinet |
| Temperature Range | 0°C to 55°C |
| Status | Discontinued by Manufacturer |
| Weight | 3.66 lbs (1.66 kg) |
Information About CP6207-0001-0020
The CP6207-0001-0020 is part of Beckhoff’s CP62xx Panel PC series, developed as a compact yet powerful operator interface for automation systems. It features a 5.7-inch VGA touchscreen, supporting both visualization and control tasks in production lines and machine control. This model offers expansion via two PCIe slots, dual Ethernet ports for connectivity, and centralized EtherCAT control. With Windows 10 IoT Enterprise support, NOVRAM data security, and multiple storage options, the unit ensures compatibility and reliability across a wide range of industrial applications.
Key Features:
- Processor Options: Supports Intel® Celeron® (2 cores), Core™ i3 (4 cores), Core™ i5 (6 cores), and Core™ i7 (8 cores).
- Display: 5.7-inch 640×480 VGA touchscreen for operator interaction.
- Expansion: Two PCIe slots available for module upgrades and future expansion.
- Networking: Dual independent Ethernet interfaces for robust communication.
- Operating System: Runs Windows 10 IoT Enterprise for industrial applications.
- Storage Flexibility: Supports CFast cards and 2½-inch HDDs or SSDs.
- Cooling System: Fan cartridge with dual ball-bearing, speed-controlled fans.
- Data Security: NOVRAM fail-safe storage protects critical system data.
- Mounting: Designed for front-panel installation in control cabinets.
- Environmental Range: Operates from 0°C to 55°C in industrial settings.
The CP6207-0001-0020 delivers the reliability and precision required for demanding automation and operator interface tasks.
