CP6606-0001-0020 | Beckhoff 7-Inch Economy Panel PC
- Regular price
- $1,149.00
- Sale price
- $1,149.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CP6606-0001-0020
Description

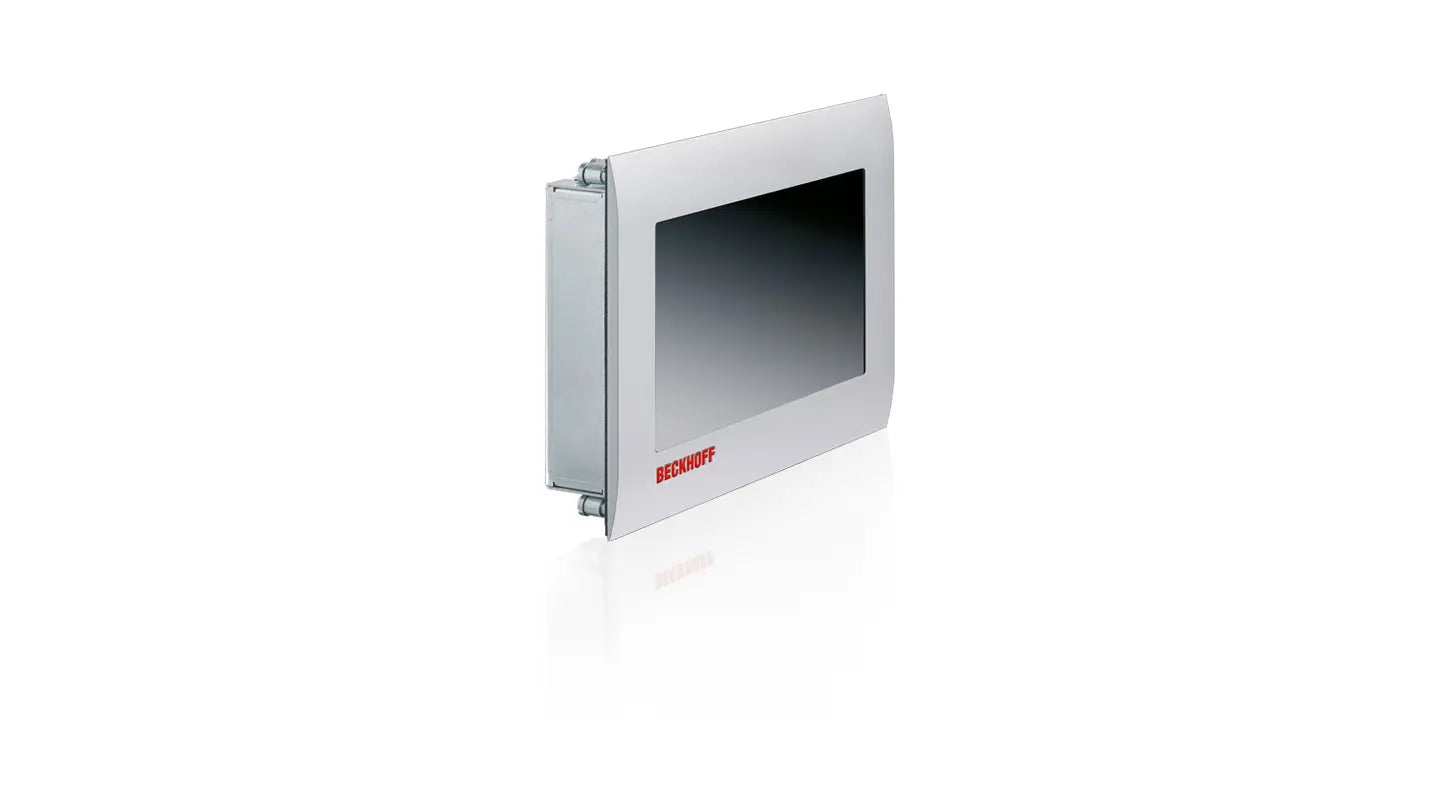

The Beckhoff CP6606-0001-0020 is a 7-inch economy Panel PC featuring a TFT display with 800 × 480 resolution and a single-touch screen. Powered by an ARM Cortex-A8 1 GHz processor, it combines compact performance with reliable 24 V DC operation for control and visualization tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial PCs |
| Part Number | CP6606-0001-0020 |
| Subcategory | Panel PCs |
| Device Type | Built-in Economy Panel PC |
| Display Size/Resolution | 7-inch TFT, 800 × 480 WVGA |
| Touch Screen | Single-touch |
| Processor | ARM Cortex-A8, 1 GHz |
| Motherboard | 3½-inch motherboard |
| Memory | 1 GB DDR3 RAM |
| Storage | 512 MB microSD (expandable up to 16 GB) |
| Graphics | Integrated in processor |
| Ethernet | 1 × 10/100BASE-T |
| EtherCAT | 1 × on-board |
| Interfaces | 2 × USB 2.0, 1 × RS232 |
| Power Supply | 24 V DC |
| Cooling | Passive |
| Housing | Aluminum front, sheet-steel rear cover |
| Installation | Built-in with pull-out clamping levers |
| Protection Rating | IP54 front, IP20 rear |
| Operating Temperature | 0…55°C |
| Dimensions | Compact, cabinet-installation format |
| Certifications | CE, UL |
| Weight | 1.00 lbs (approx. 0.45 kg) |
Information About CP6606-0001-0020
The CP6606-0001-0020 is part of Beckhoff’s CP6600 Economy Panel PC series, designed as a cost-effective built-in panel solution for small-scale automation and display applications. It integrates a 7-inch TFT single-touch display with a slim aluminum front and sheet-steel rear housing, providing a balance of durability and lightweight construction. Equipped with an ARM Cortex-A8 1 GHz processor, 1 GB DDR3 RAM, and integrated graphics, the device ensures efficient performance for visualization and control. Storage is supported via a microSD slot with up to 16 GB capacity, while interfaces include dual USB ports, RS232, Ethernet, and EtherCAT for flexible connectivity. With IP54 protection on the front, IP20 on the rear, and tool-free installation using clamping levers, the CP6606-0001-0020 is optimized for easy integration and long-term reliability in industrial environments.
Key Features:
-
Compact Display: 7-inch TFT display with 800 × 480 WVGA resolution for clear visualization.
-
Touch Control: Single-touch screen interface for simple and direct operation.
-
Efficient Processor: ARM Cortex-A8 1 GHz processor with integrated graphics for responsive performance.
-
Memory and Storage: 1 GB DDR3 RAM and microSD card support up to 16 GB for data handling and system storage.
-

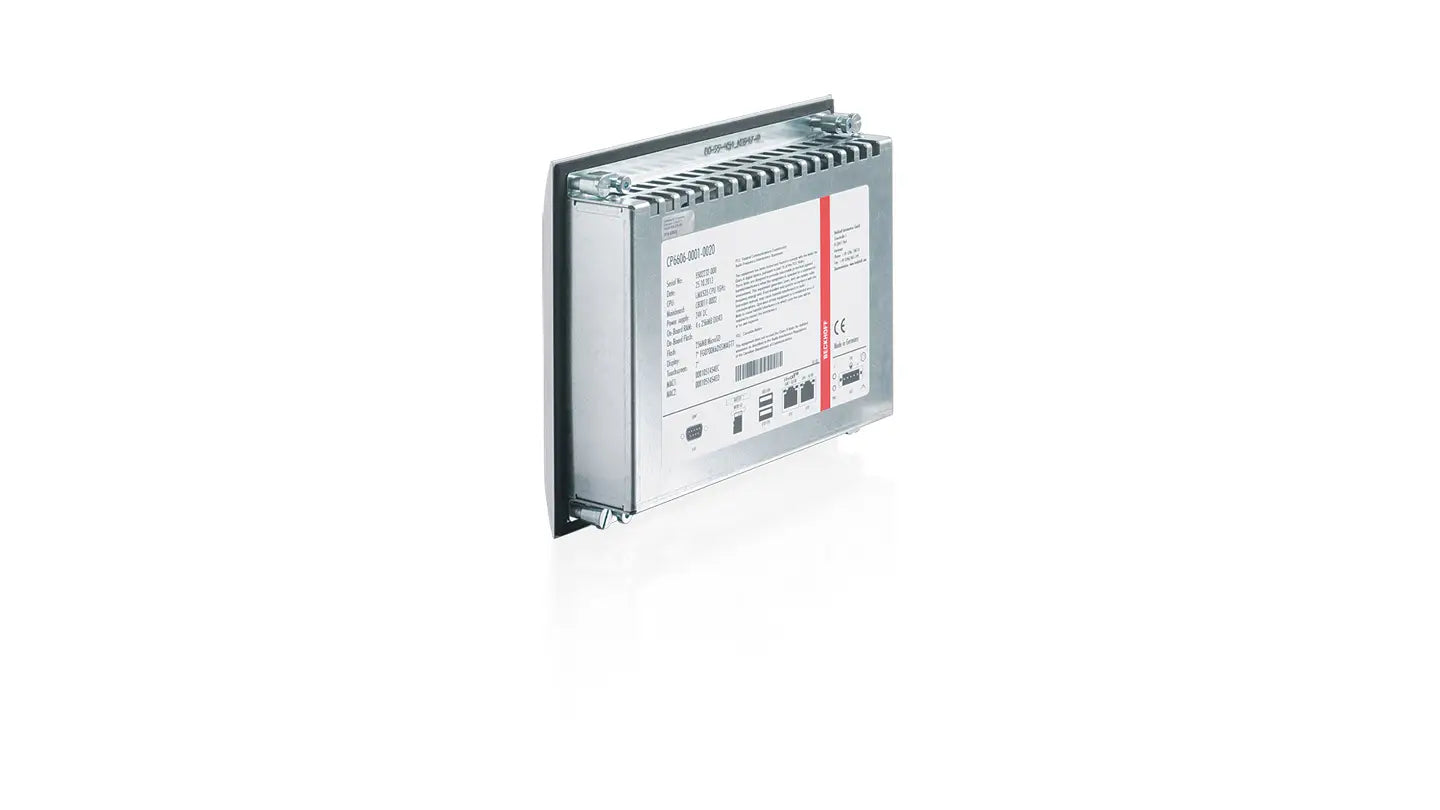

Durable Housing: Aluminum front panel with sheet-steel rear cover ensures robust mechanical protection.
-
Connectivity Options: Includes 2 × USB 2.0, 1 × RS232, 1 × Ethernet (10/100BASE-T), and 1 × EtherCAT interface.
-
Reliable Power Supply: Operates on a 24 V DC power input for consistent industrial performance.
-
Protection Rating: Front side IP54 and rear side IP20 provide suitable protection for control cabinet environments.
-
Easy Installation: Pull-out clamping levers allow fast mounting without loose installation parts.
The CP6606-0001-0020 delivers the reliability and precision required for compact control and visualization in cost-sensitive industrial automation setups.
