CP6901-0001-0000 | Beckhoff 12" Economy Built-in Control Panel DVI/USB Extended
- Regular price
- $1,809.00
- Sale price
- $1,809.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CP6901-0001-0000
Description

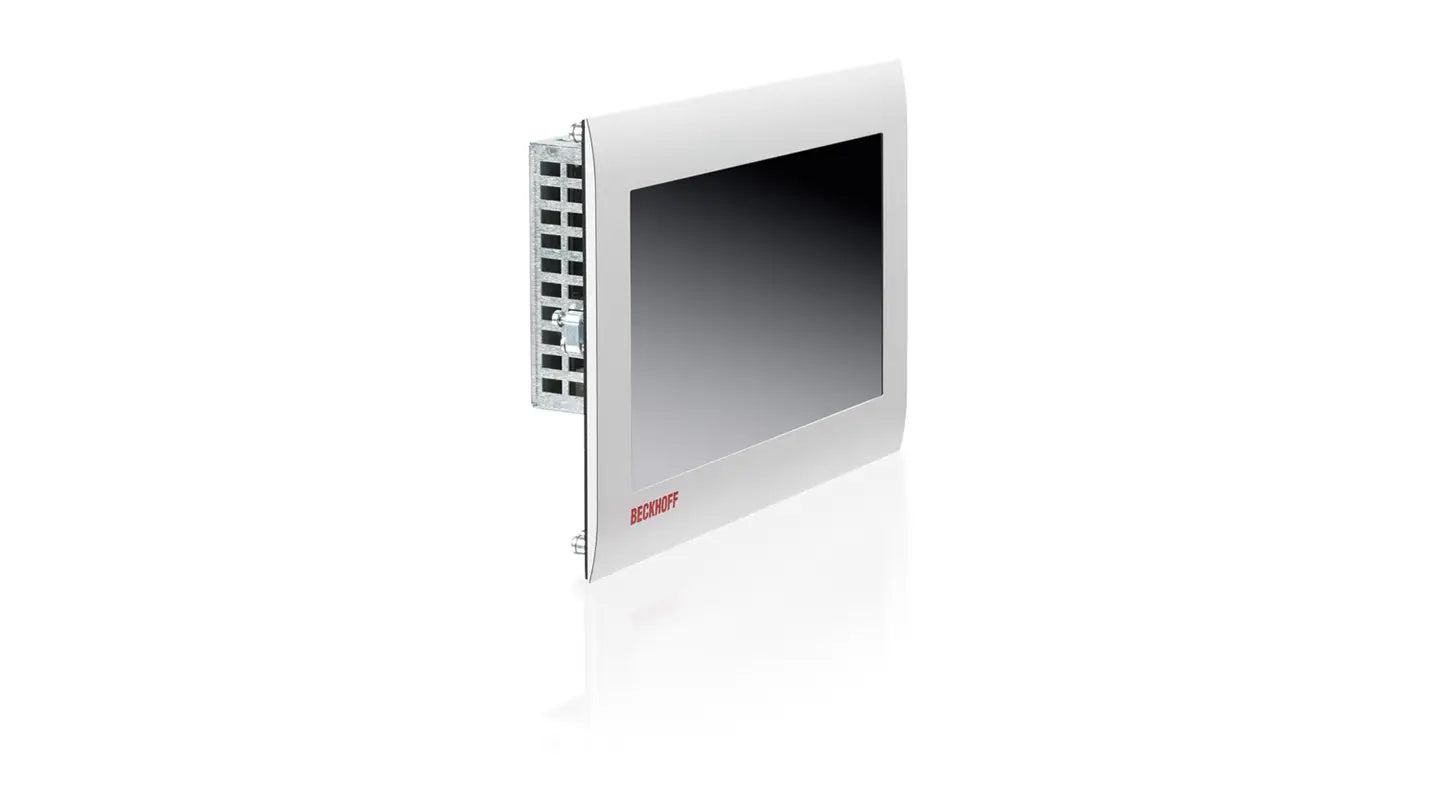

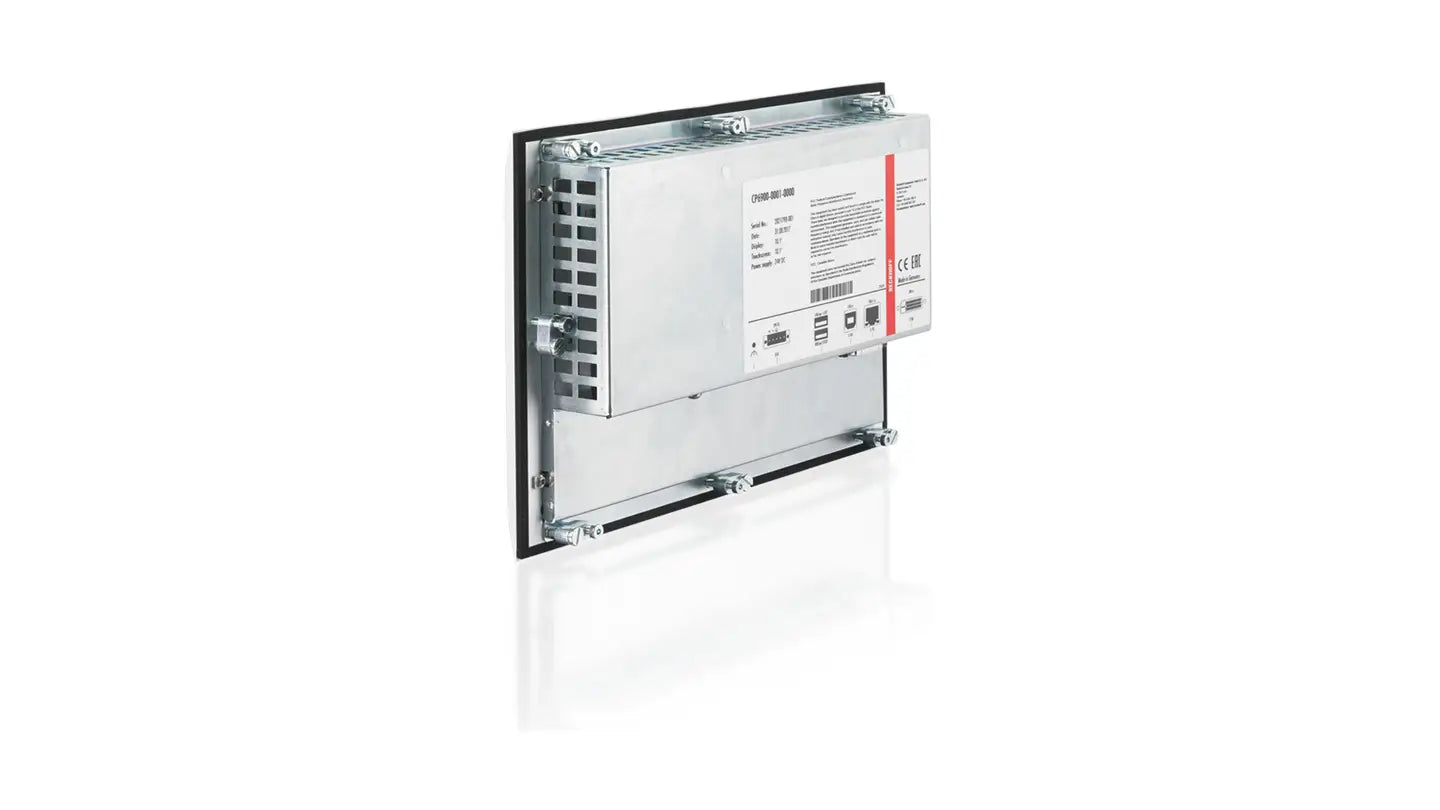

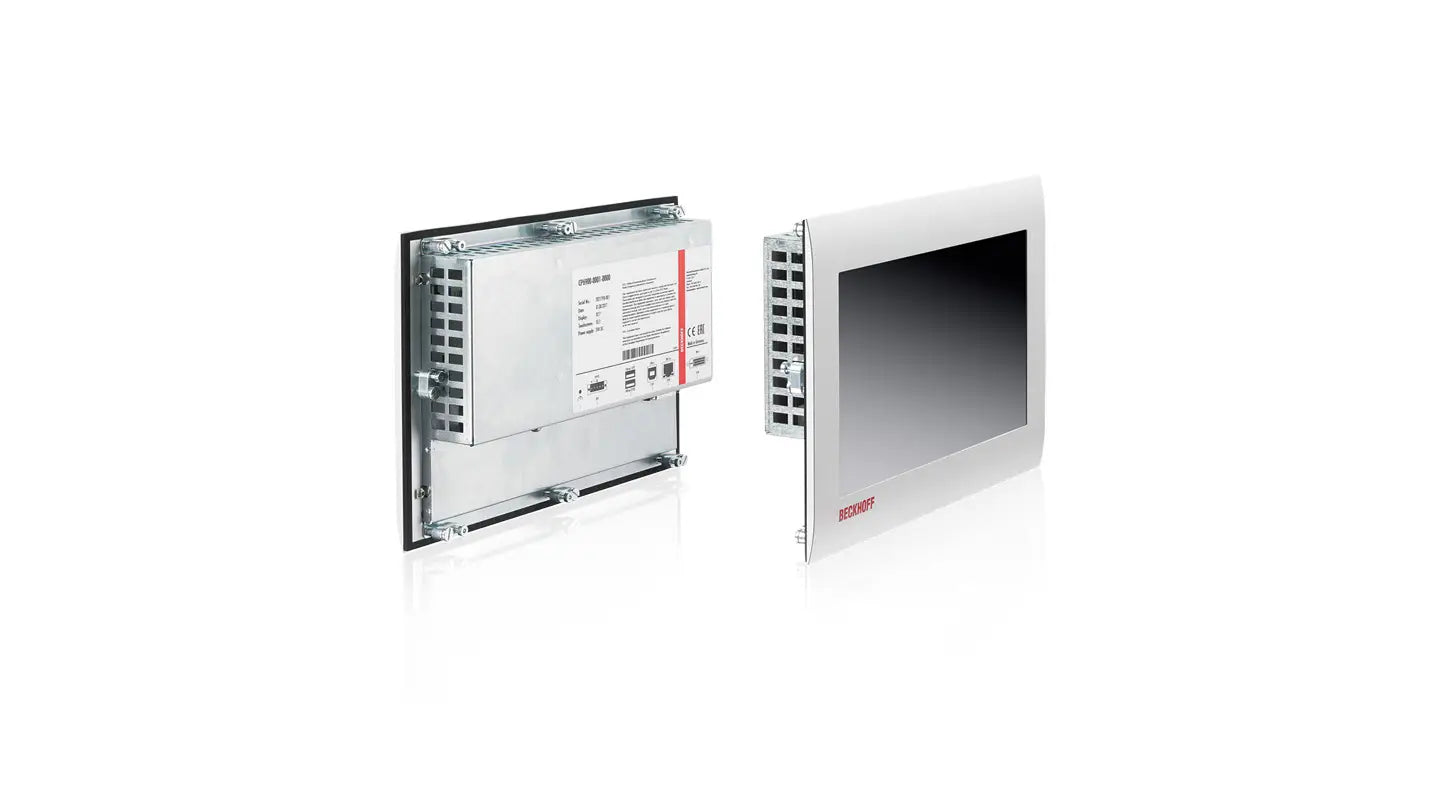

The Beckhoff CP6901-0001-0000 is a 12-inch economy built-in control panel with a resistive touch screen and 800 × 600 resolution. Designed with DVI/USB Extended interface and 24 V DC supply, it provides durable and reliable operator interaction for machine and process control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Control Panels |
| Part Number | CP6901-0001-0000 |
| Subcategory | Economy Built-in Panels |
| Display Size | 12-inch |
| Display Resolution | 800 × 600 pixels |
| Supported Aspect Ratios | 4:3, 5:4, and widescreen |
| Touch Technology | Single-touch resistive |
| Keys | Without keys |
| Interface | DVI/USB Extended |
| USB Speed | 480 Mbit/s (USB 2.0) |
| DVI Signal | DVI graphic via DVI-E cable |
| USB Ports | 2 |
| Power Supply | 24 V DC via industrial pin strip |
| Cable Length (Standard) | Up to 5 m |
| Cable Length (Extended) | Up to 50 m |
| Housing Material | Anodized aluminum or stainless steel |
| Design | Modern anodized high-class |
| Series | CP Panel PC |
| Primary Function | Machine and process control |
| Mechanical Stability | High mechanical stability |
| Environmental Suitability | Harsh industrial environments |
| Front Protection Rating | IP65 |
| Rear Protection Rating | IP20 |
| Operating Temperature | 0…55 °C |
| Storage Temperature | -25…+65 °C |
| Screen Size Range | Available from 7" to 19" |
| Weight | 4.67 lbs |
Information About CP6901-0001-0000
The CP6901-0001-0000 is part of Beckhoff’s CP69xx series of economy built-in control panels, designed as cost-effective visualization and operator units for industrial automation. Featuring a 12-inch display with 800 × 600 resolution, the panel provides sharp process monitoring while maintaining simple resistive single-touch input for reliability in demanding environments. It connects to industrial PCs via DVI/USB Extended interface, supporting standard cable lengths up to 5 m or extended distances of up to 50 m, enabling flexible installation layouts. With a durable anodized aluminum or stainless steel housing, IP65 front protection, and 24 V DC supply, the unit is engineered for stable operation in harsh factory conditions.
Key Features:
-
12-Inch Display: Offers an 800 × 600 resolution screen for clear machine and process visualization.
-
Resistive Touch Input: Single-touch technology ensures dependable operation, even with gloves or stylus input.
-
DVI/USB Extended Connectivity: Enables connection to industrial PCs with up to 50 m distance for flexible integration.
-
Industrial-Grade Housing: Constructed from anodized aluminum or stainless steel for durability and longevity.
-
High Environmental Protection: IP65 protection on the front and IP20 on the rear for use in industrial environments.
-
Reliable Power Supply: Operates on 24 V DC via an industrial-grade pin strip for secure installation.
-
Flexible Display Options: Supports multiple aspect ratios (4:3, 5:4, widescreen) for various system configurations.
-
Rugged Industrial Design: Offers high mechanical stability and resistance to harsh operating conditions.
The CP6901-0001-0000 delivers the reliability and precision required for machine control and process visualization in industrial automation environments.
