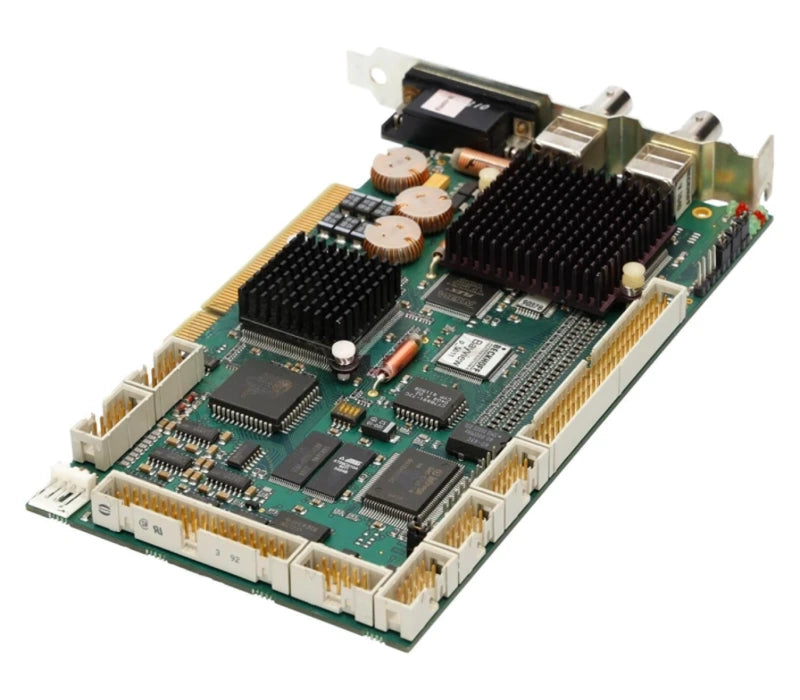

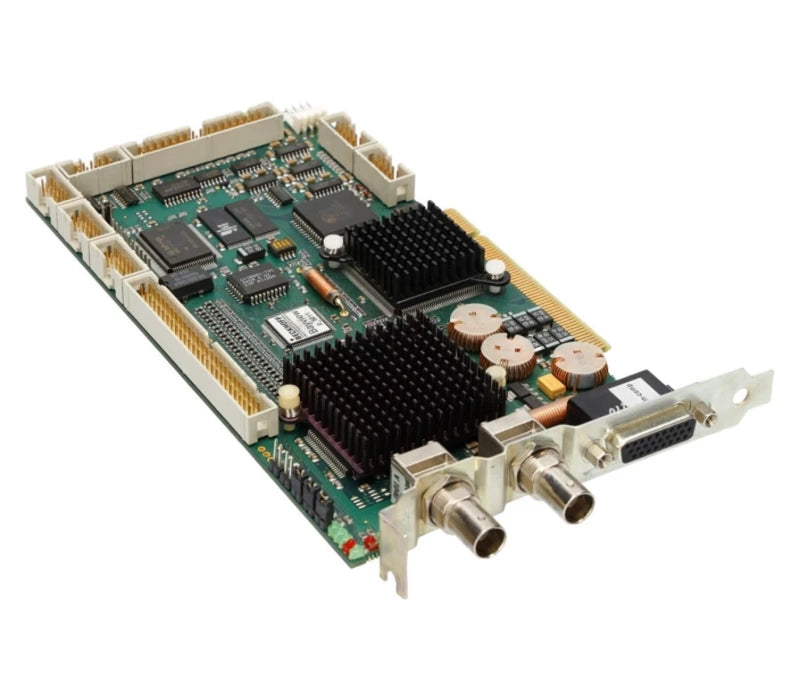

CP9035 | Beckhoff CP-Link PCI Plug-In Card, 8-Channel Communication Interface
- Regular price
- $1,924.00
- Sale price
- $1,924.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CP9035
Description
The Beckhoff CP9035 is a CP-Link plug-in PCI card that provides an 8-channel communication interface for connecting multiple Beckhoff Control Panels or display units. It enables high-speed data transmission between industrial PCs and remote operator interfaces, supporting flexible multi-terminal configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | CP9035 |
| Subcategory | CP-Link Communication Card |
| Interface Type | PCI plug-in card |
| Mounting Type | Internal PCI slot |
| Number of Channels | 8 |
| Function | CP-Link interface for connecting up to 8 Control Panels |
| Communication Type | High-speed digital data transmission |
| Typical Applications | Remote operation, visualization, and HMI connectivity |
| Compatibility | Beckhoff Industrial PCs with CP-Link communication support |
| Connector Type | Multi-channel connection ports (per Beckhoff CP-Link specification) |
| Bus Standard | PCI, 32-bit |
| Power Supply | Via PCI bus |
| Cooling Method | Passive (no fan required) |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | Up to 95%, non-condensing |
| Approvals | CE, UL |
| Weight | 0.55 lbs (approx. 250 g) |
Information About CP9035
The Beckhoff CP9035 belongs to the company’s CP-Link series of communication cards designed to connect Industrial PCs with remote Control Panels through a single high-speed interface. Installed in a PCI slot, the CP9035 supports up to eight independent channels, allowing simultaneous connection of multiple display or operator units. The card provides efficient signal transmission for video, USB, and control data across long distances, simplifying cabling and reducing system complexity. Its robust design and full PCI compliance make it ideal for distributed control and visualization architectures in automation environments.
Key Features:
- Multi-Channel Capability: Supports up to 8 CP-Link channels for simultaneous communication with multiple panels.
- PCI Plug-In Format: Installs directly into standard PCI slots for fast and easy system integration.
- High-Speed Data Transfer: Enables efficient communication between IPCs and remote HMIs with low latency.
- Simplified Cabling: Reduces wiring complexity by combining video, USB, and control signals through CP-Link technology.
- Industrial Reliability: Built for continuous operation in harsh industrial environments with CE/UL certifications.
- Compact Design: Lightweight and space-saving card suitable for modular PC configurations.
- Passive Cooling: Operates silently without active fans, enhancing long-term reliability.
- Flexible Integration: Compatible with Beckhoff Control Panels and industrial PCs supporting CP-Link communication.
The CP9035 delivers the reliability and precision required for multi-display control, distributed HMI systems, and industrial visualization networks.
