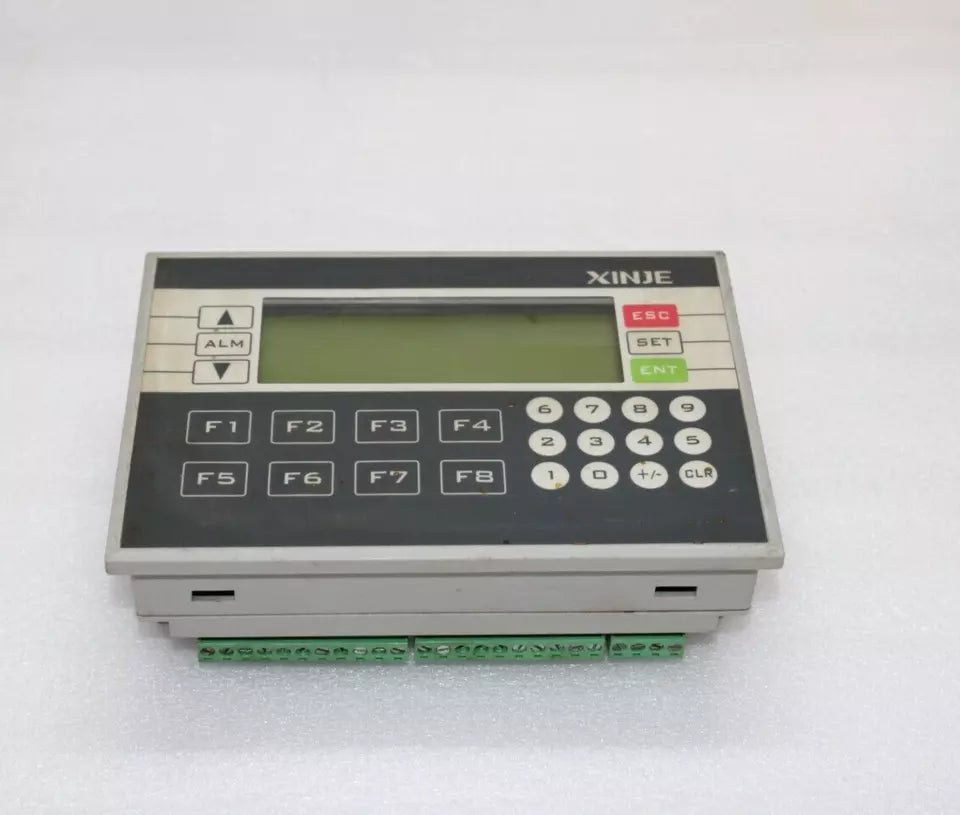

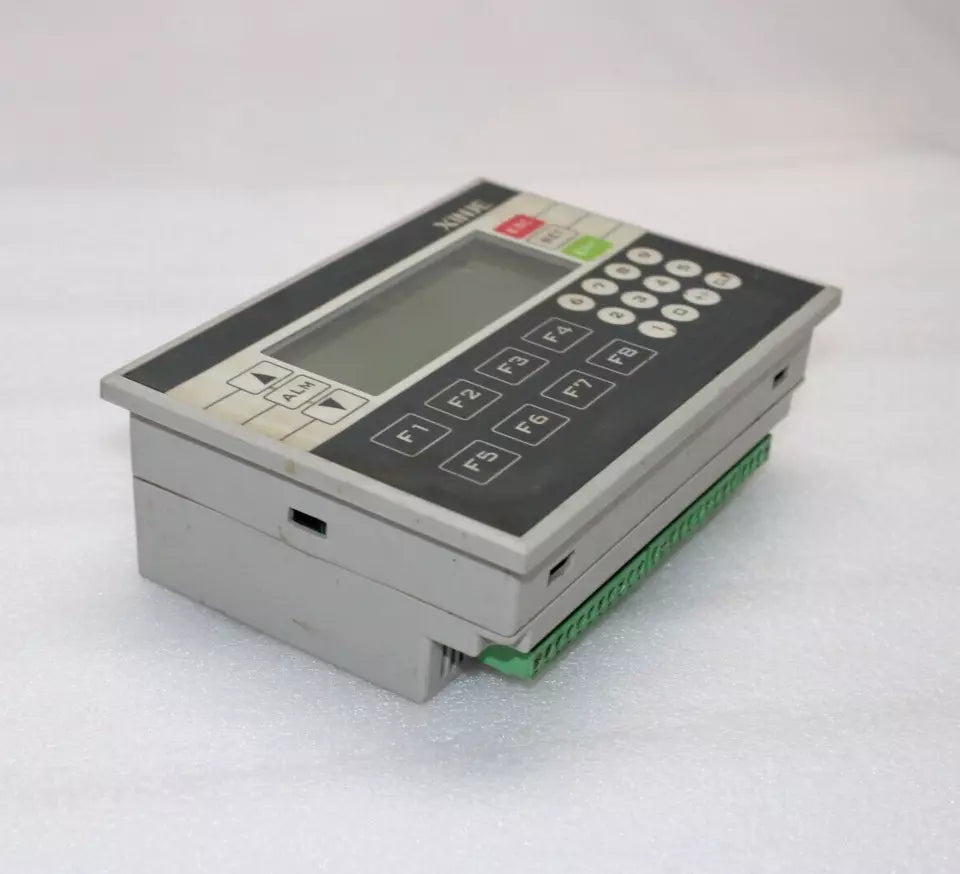

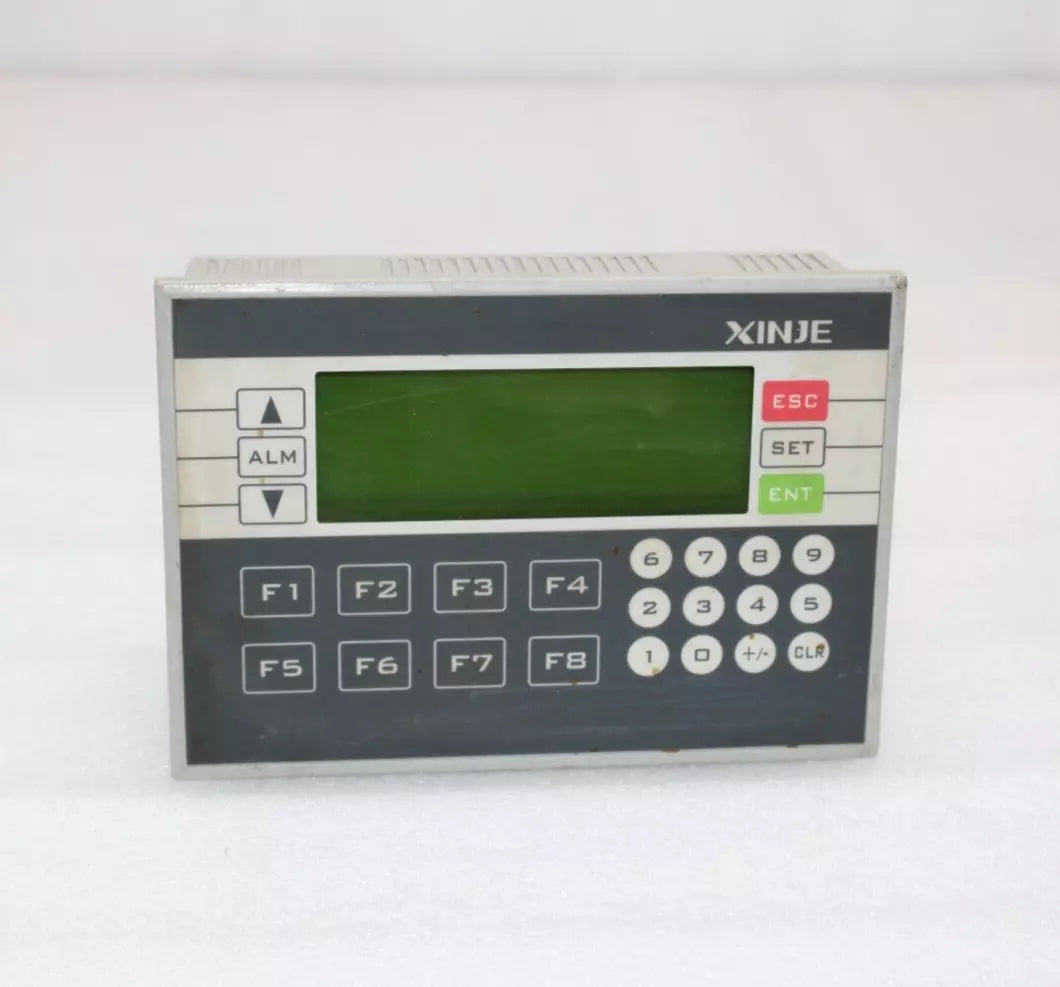

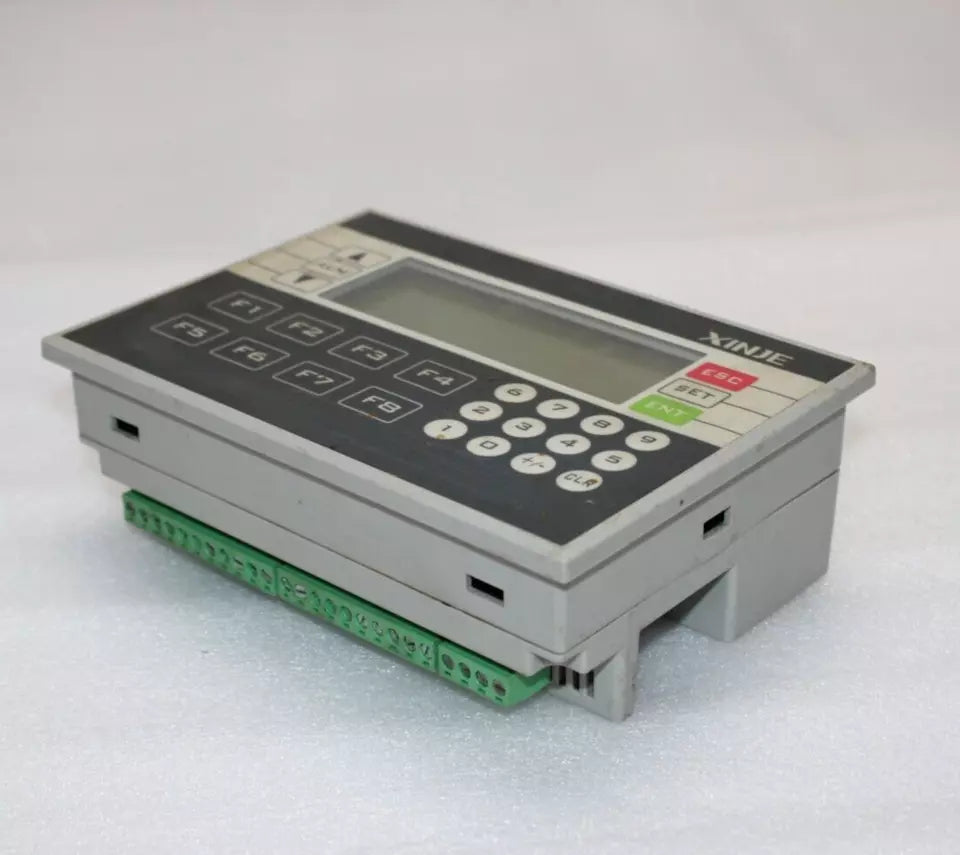

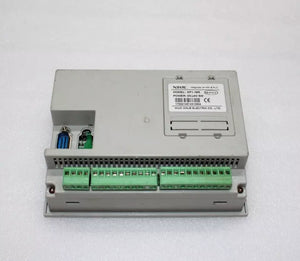

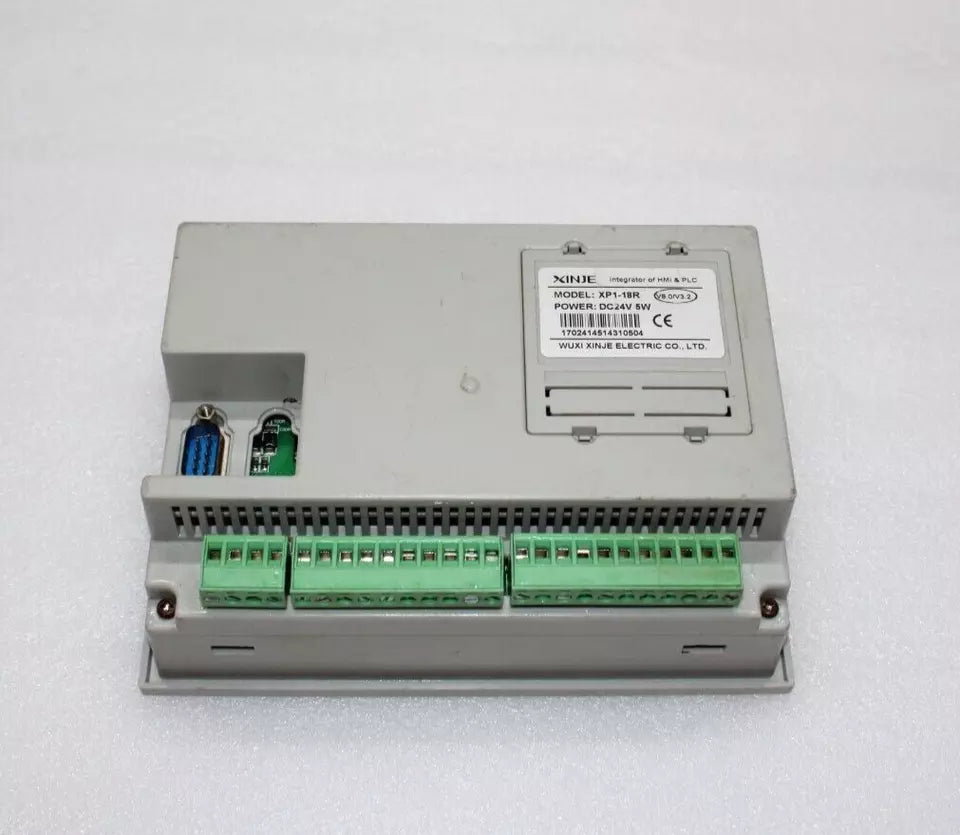

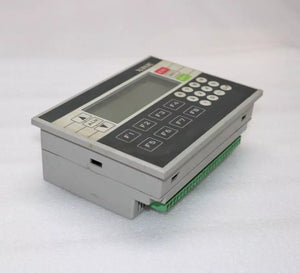

XP1-18R | Xinje Integrated PLC & HMI Unit
- Regular price
- $319.00
- Sale price
- $319.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: XP1-18R
Description
The Xinje XP1-18R is an integrated PLC and HMI unit offering both control and visualization in a single, compact device, ideal for small to medium-sized automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Xinje |
| Category | PLCs and Accessories |
| Part Number | XP1-18R |
| Subcategory |
HMI
|
| Weight |
0.8 kgs |
| Input Voltage |
24V DC |
| Current Consumption |
Less than 10W (TYP2.0W) |
| Allowable Momentary Power-Cut |
Less than 20ms |
| Voltage Endurance |
AC1000V-10mA 1 minute |
| Insulated Resistance |
DC500V-about 10MΩ |
| Operation Temperature |
0~50ºC |
| Storage Temperature |
-10~60ºC |
| Ambient Humidity |
20~85%(Non-condensing, dry bulb) |
| Vibration Resistance |
10~25Hz (X,Y,Z directions for 30 minutes 2G) |
| Noise Voltage |
1000Vp-p |
| Protect Configuration |
IP65F |
Information About CPA10-VI
The Xinje XP1-18R is an integrated PLC and HMI unit designed to streamline industrial automation processes. It combines both control and visualization functionalities in a compact, easy-to-use unit, ideal for a wide range of applications requiring both logic control and operator interaction.
Key Features:
- Integrated PLC and HMI: Combines programmable logic control (PLC) and human-machine interface (HMI) in a single unit for simplified system setup.
- User-Friendly Interface: Features an intuitive touch-screen interface for easy monitoring and control of automated processes.
- Flexible I/O Expansion: Supports additional I/O modules for customized system configurations.
- Compact and Robust Design: Space-efficient and durable for use in various industrial environments.
- Versatile Applications: Suitable for machinery control, process automation, and industrial monitoring tasks.
The XP1-18R is ideal for small to medium-sized automation systems, offering ease of installation and operation with combined control and visualization in a single unit.
