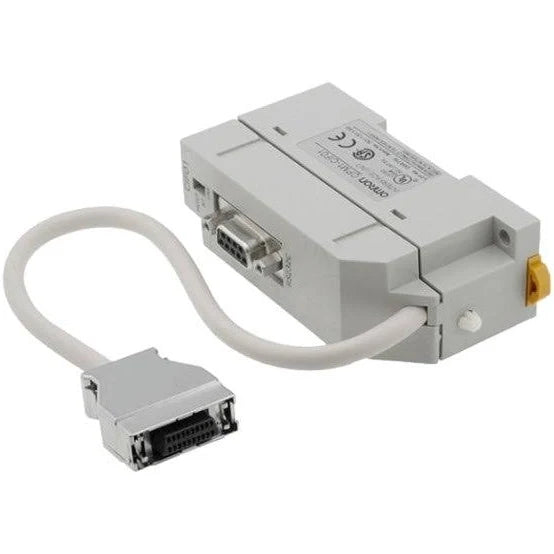

CPM1-CIF01 | Omron RS-232C Serial Communications Adapter for CPM1/CPM1A PLCs
- Regular price
- $292.00
- Sale price
- $292.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CPM1-CIF01
Description
The Omron CPM1-CIF01 is a serial communications adapter designed to convert CMOS-level signals to RS-232C for PLC connectivity. It enables stable and efficient data exchange between Omron CPUs and peripheral devices used with CPM1 and CPM1A systems. With support for transmission speeds up to 38.4 Kbits/s, it is suitable for a wide range of industrial communication tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation Accessories |
| Part Number | CPM1-CIF01 |
| Subcategory | Communication Adapters |
| Product Type | RS-232C Serial Communications Adapter |
| Manufacturer | Omron |
| Compatible Series | CPM1, CPM1A |
| Usage | Converts CPU peripheral port signals to RS-232C |
| Transmission Speed | Up to 38.4 Kbits/s |
| Power Supply | Supplied by CPU |
| Current Consumption | 0.3 A max |
| Termination Type | D-Sub connector |
| Insulation Method | DC/DC converter, photocoupler |
| Mounting Method | DIN Rail, PCB |
| Operating Temperature | 0 °C to 55 °C |
| Vibration Resistance | 10 to 57 Hz |
| Shock Resistance | 147 m/s² |
Information About CPM1-CIF01
The CPM1-CIF01 is a communication accessory belonging to Omron’s CPM1 series of compact PLC components. It features a compact, robust construction with integrated electrical isolation using a DC/DC converter and photocoupler design. The adapter integrates directly with CPM1 and CPM1A CPUs through the peripheral port, allowing seamless compatibility without the need for external power supplies. It is commonly used in industrial automation environments to connect PLCs to programming devices, HMIs, or serial peripherals using RS-232C communication technology.
Key Features:
- CMOS to RS-232C conversion: Enables serial communication between PLC CPUs and external devices.
- CPM1 series compatibility: Designed specifically for CPM1 and CPM1A PLC systems.
- Peripheral port connection: Interfaces directly with the CPU’s peripheral port.
- Integrated electrical isolation: Uses DC/DC converter and photocoupler for signal protection.
- High transmission speed: Supports data rates up to 38.4 Kbits/s.
- CPU-powered operation: No external power supply required.
- Compact form factor: Suitable for space-constrained control panels.
- Flexible mounting options: Supports DIN rail and PCB mounting.
- Industrial durability: Rated for vibration resistance from 10 to 57 Hz.
- Wide temperature range: Operates reliably from 0 °C to 55 °C.
The CPM1-CIF01 delivers the reliability and precision required for serial communication and peripheral integration in compact PLC-based automation systems.
