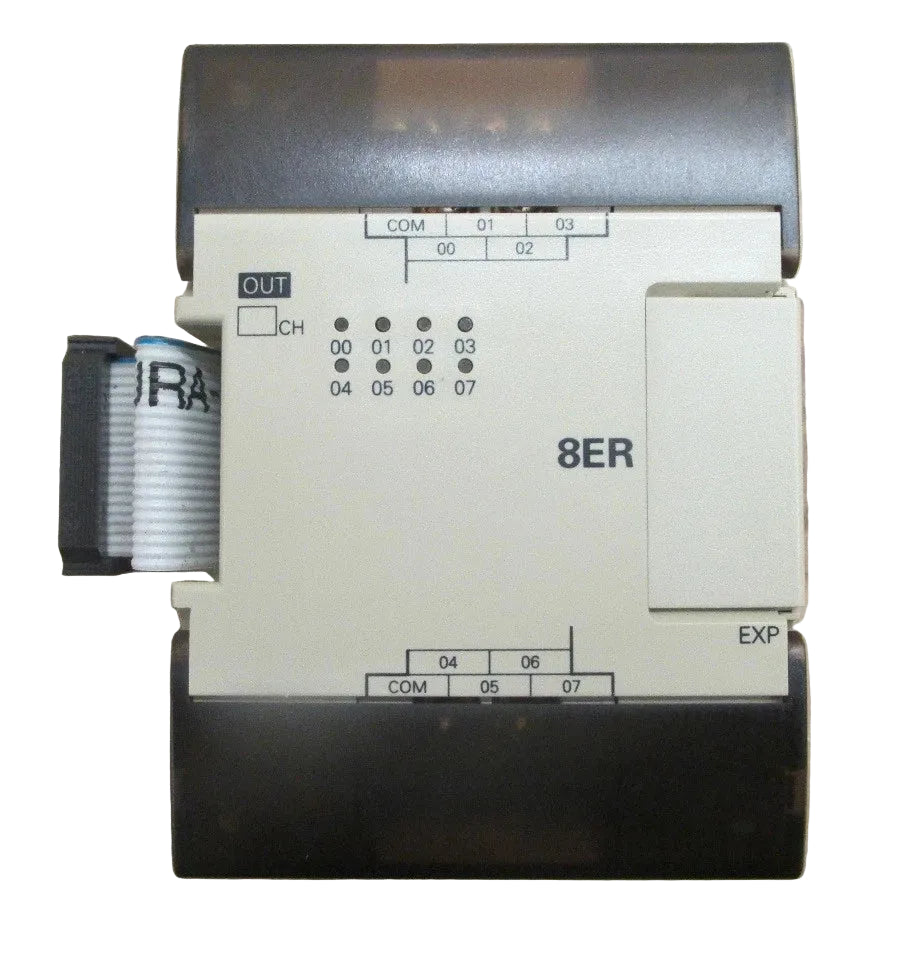

CPM1A-8ER | Omron CPM1A 8-Point Relay Output Expansion Module
- Regular price
- $264.00
- Sale price
- $264.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CPM1A-8ER
Description
The Omron CPM1A-8ER is an expansion I/O unit designed to extend the output capacity of CPM1A series PLCs. It provides eight relay output points for controlling external devices in industrial automation systems. The module supports AC and DC switching loads and integrates directly with compatible PLC CPUs.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | CPM1A-8ER |
| Subcategory | Brick PLC |
| Series | CPM1A |
| Module Type | Expansion Relay Output Unit |
| Number of Outputs | 8 Relay Outputs |
| Maximum Switching Capacity | 250 VAC / 2 A; 24 VDC / 2 A (4 A per common) |
| Minimum Switching Capacity | 5 VDC, 10 mA |
| Power Consumption | 2 W |
| ON/OFF Delay | 15 ms max. |
| Mechanical Relay Life | 20 million operations |
| Operating Temperature | 0°C to 55°C |
| Mounting Type | DIN Rail |
| Termination Style | Screw Terminal |
| Weight | 0.35 lbs |
Information About CPM1A-8ER
The CPM1A-8ER is part of the Omron CPM1A series and functions as a dedicated relay output expansion module. It is mounted on a DIN rail and connects to the base PLC unit to increase the number of controllable output channels. The module uses mechanical relay outputs capable of switching both AC and DC loads within specified ratings. Designed for industrial environments, it complies with multiple international standards and operates within a 0°C to 55°C temperature range.
Key Features:
-
8 Relay Output Points: Expands PLC output capacity with eight independent channels.
-
AC/DC Switching Capability: Rated up to 250 VAC or 24 VDC per output.
-
DIN Rail Mounting: Enables compact and secure panel installation.
-
Screw Terminal Connections: Provides stable and reliable field wiring.
-
Mechanical Relay Design: Supports long service life with up to 20 million mechanical operations.
-
Fast Switching Response: Maximum 15 ms ON/OFF delay.
-
Low Power Consumption: Approximately 2 W operating power.
-
Industrial Compliance: Meets CE, CSA, NK, UL, and Lloyd standards.
The CPM1A-8ER delivers the reliability and precision required for expanded relay-based output control in PLC automation systems.
Description
The Omron CPM1A-8ER is an expansion I/O unit designed to extend the output capacity of CPM1A series PLCs. It provides eight relay output points for controlling external devices in industrial automation systems. The module supports AC and DC switching loads and integrates directly with compatible PLC CPUs.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | CPM1A-8ER |
| Subcategory | Brick PLC |
| Series | CPM1A |
| Module Type | Expansion Relay Output Unit |
| Number of Outputs | 8 Relay Outputs |
| Maximum Switching Capacity | 250 VAC / 2 A; 24 VDC / 2 A (4 A per common) |
| Minimum Switching Capacity | 5 VDC, 10 mA |
| Power Consumption | 2 W |
| ON/OFF Delay | 15 ms max. |
| Mechanical Relay Life | 20 million operations |
| Operating Temperature | 0°C to 55°C |
| Mounting Type | DIN Rail |
| Termination Style | Screw Terminal |
| Weight | 0.35 lbs |
Information About CPM1A-8ER
The CPM1A-8ER is part of the Omron CPM1A series and functions as a dedicated relay output expansion module. It is mounted on a DIN rail and connects to the base PLC unit to increase the number of controllable output channels. The module uses mechanical relay outputs capable of switching both AC and DC loads within specified ratings. Designed for industrial environments, it complies with multiple international standards and operates within a 0°C to 55°C temperature range.
Key Features:
-
8 Relay Output Points: Expands PLC output capacity with eight independent channels.
-
AC/DC Switching Capability: Rated up to 250 VAC or 24 VDC per output.
-
DIN Rail Mounting: Enables compact and secure panel installation.
-
Screw Terminal Connections: Provides stable and reliable field wiring.
-
Mechanical Relay Design: Supports long service life with up to 20 million mechanical operations.
-
Fast Switching Response: Maximum 15 ms ON/OFF delay.
-
Low Power Consumption: Approximately 2 W operating power.
-
Industrial Compliance: Meets CE, CSA, NK, UL, and Lloyd standards.
The CPM1A-8ER delivers the reliability and precision required for expanded relay-based output control in PLC automation systems.
