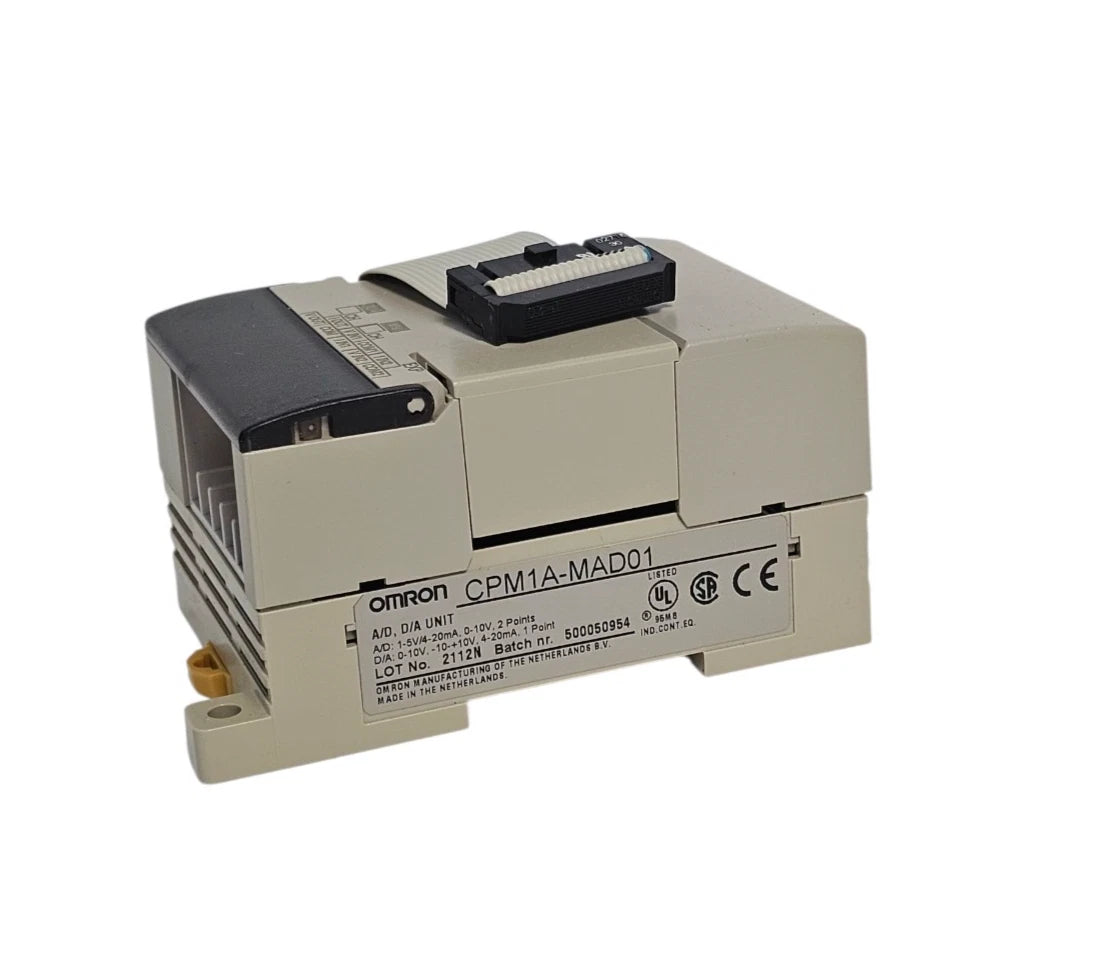

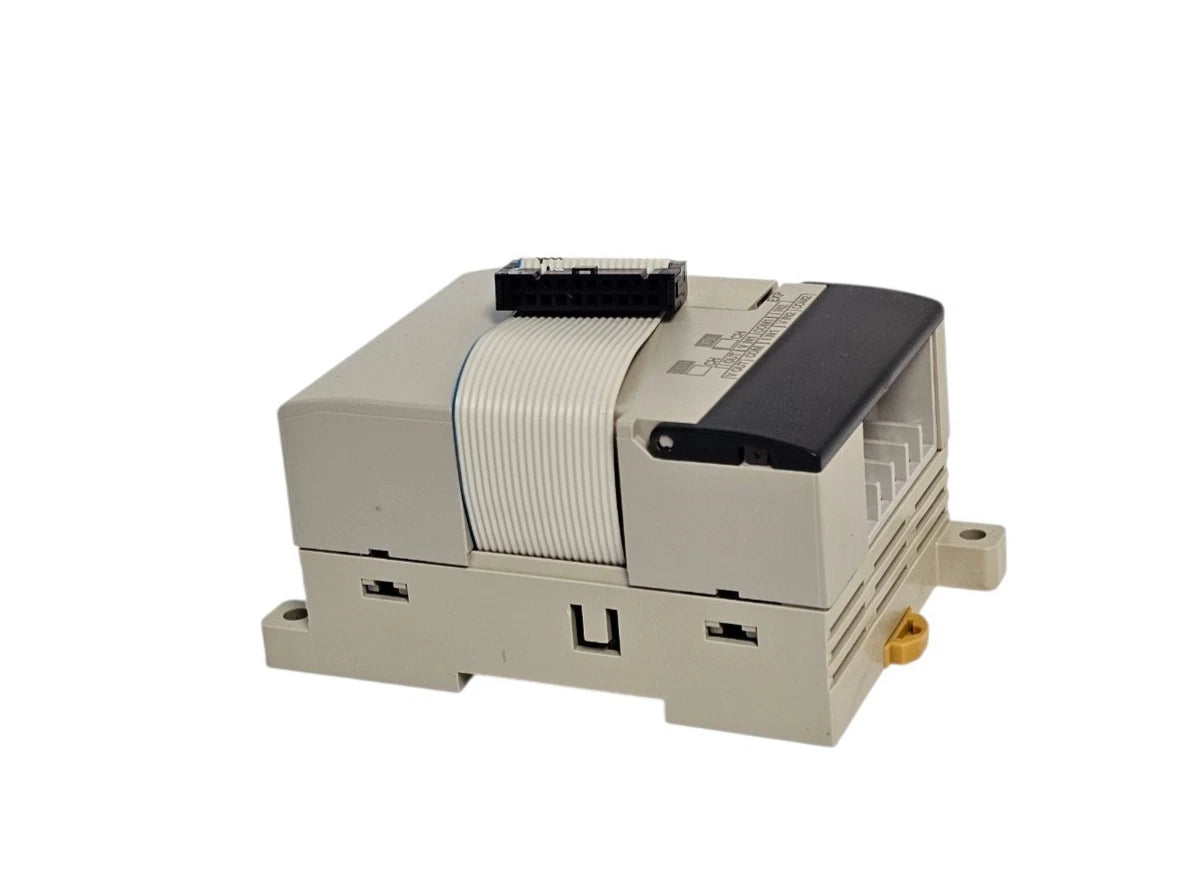

CPM1A-MAD01 | Omron I/O Module
- Regular price
- $686.00
- Sale price
- $686.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CPM1A-MAD01
Description
The CPM1A-MAD01 is an analog I/O module for Omron’s CPM1A series, featuring two 4–20 mA inputs and one 4–20 mA output. Its compact size and DIN rail mounting make it ideal for small-scale analog signal processing.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
PLCs/Machine Control
|
| Part Number | CPM1A-MAD01 |
| Subcategory | Brick PLC |
| Series | CPM1 |
| Product Type | I/O Module for CPM1A Series |
| Analog Inputs | 2 Inputs (4-20 mA) |
| Analog Output | 1 Output (4-20 mA) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 75°C |
| Power Supply | 24 VDC |
| Weight | 0.09 kg (150.14 g) |
| Mounting | DIN Rail Mountable |
| Approval Agency | CE, CSA, UL |
| Termination Style | Screw Terminal |
Information About CPM1A-MAD01
The CPM1A-MAD01 is a dedicated expansion module for Omron's CPM1A programmable controller series, offering essential analog input and output capabilities in a compact format. With two analog inputs and one analog output, all operating within the 4–20 mA current loop range, this module is well-suited for signal conversion, process control, and monitoring analog sensors such as pressure or flow transducers. Designed for 24 VDC operation, it functions reliably within a temperature range of 0°C to 55°C and supports storage down to –20°C. The CPM1A-MAD01 mounts easily on standard DIN rails and connects via screw terminals, ensuring both mechanical and electrical stability in control panel environments. Certified by CE, CSA, and UL, it meets international standards for industrial safety and performance.
Key Features:
- 2 Analog Inputs (4–20 mA): Accepts current signals from analog field devices like sensors, transmitters, or meters.
- 1 Analog Output (4–20 mA): Provides proportional output to actuators or displays, ideal for control loop applications.
- Compact and Lightweight: Weighs only 0.09 kg, allowing installation in space-constrained panels and mobile systems.
- 24 VDC Power Supply: Standard low-voltage operation compatible with most industrial control systems.
- DIN Rail Mountable: Ensures fast, tool-free mounting with secure mechanical alignment and vibration resistance.
- Wide Operating Temperature Range: Functions reliably from 0°C to 55°C, with extended storage capability down to –20°C.
- Screw Terminal Connections: Provides secure and straightforward wiring for fast field integration.
- Compatible with CPM1A Series: Fully supports expansion and integration with Omron CPM1A PLC platforms.
- CE, CSA, and UL Approved: Meets global safety and compliance standards for industrial use.
- Reliable Analog Signal Conversion: Designed for continuous analog signal input and output in automation systems.
The CPM1A-MAD01 combines analog precision and modular simplicity to enhance CPM1A-based automation systems with robust signal conversion capability.
