CPM2C-20C1DR-D | Omron Programmable Logic Controller
- Regular price
- $2,299.00
- Sale price
- $2,299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CPM2C-20C1DR-D
Description
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| BrandPart Number | Omron |
| Category |
PLCs and Accessories
|
| Part Number | CPM2C-20C1DR-D |
| Subcategory | PLC Expansion Modules |
| Series | CPM2C Series |
| Primary Type | Controller |
| Mounting Type | Panel Mount / DIN Rail |
| Supply Voltage | 24 VDC |
| Supply Current | 8 mA |
| Input Type | DC |
| Number of Digital Inputs | 12 |
| Number of Digital Outputs | 8 |
| Number of I/O Ports | 20 |
| Output Type | Relay |
| Input Current | 5 mA |
| Communication Port Type | RS-232C |
| Termination Style | Terminal Block |
| External Depth | 65 mm |
| Weight | 0.45 kgs |
Information About CPM2C-20C1DR-D

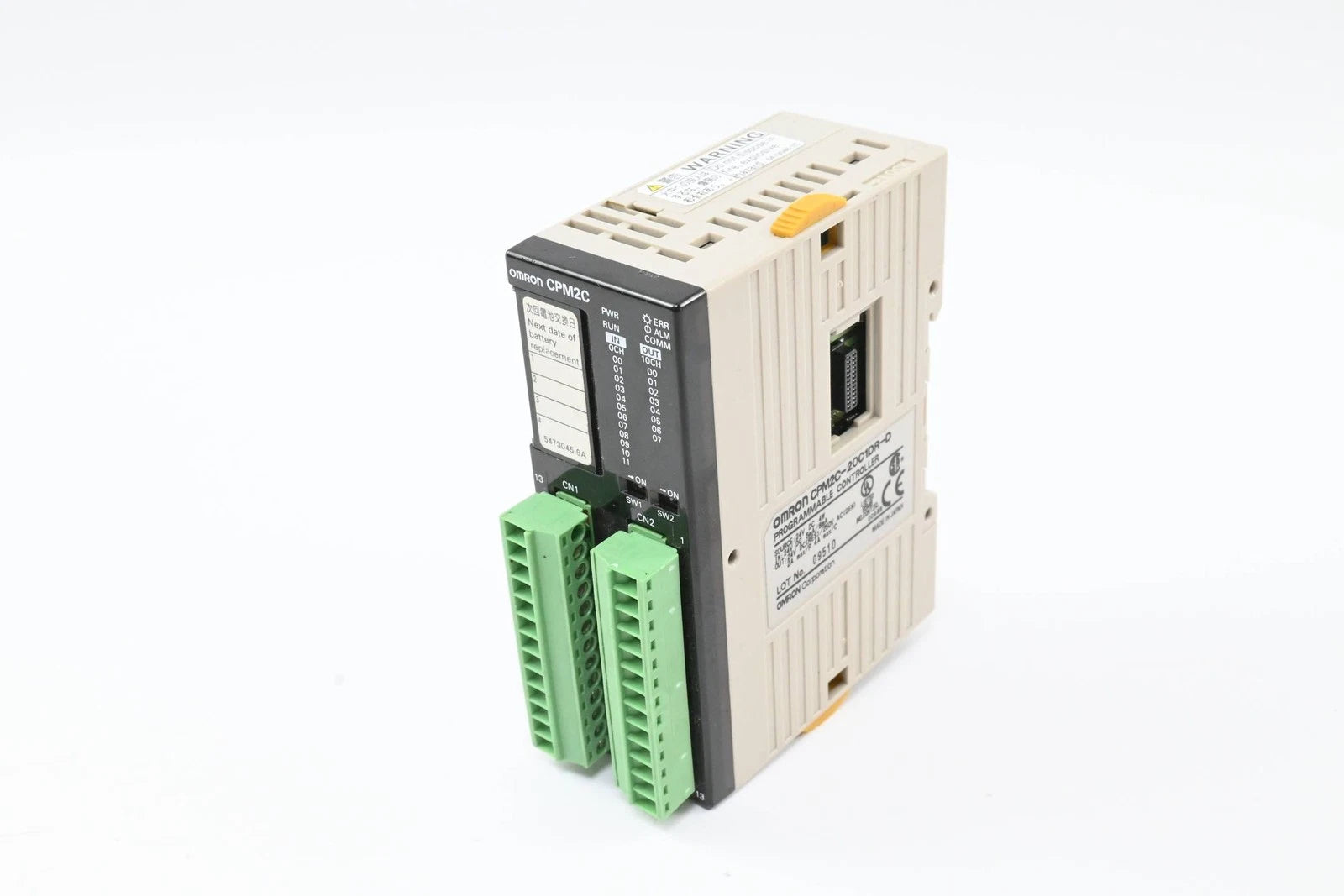

The Omron CPM2C-20C1DR-D is a compact programmable logic controller (PLC) designed for small-to-medium industrial automation tasks. Part of the CPM2C Series, this controller features 12 digital inputs and 8 relay outputs, providing reliable control over sensors and actuators. With integrated RS-232C communication and a real-time clock (RTC), the CPM2C-20C1DR-D supports time-based operations and serial device integration within a slim, DIN-rail mountable housing. Although now discontinued, it remains widely used in legacy equipment requiring compact and expandable control.
Key Features:
- 12 Digital Inputs & 8 Relay Outputs: Handles basic digital I/O control tasks for machinery and equipment.
- RS-232C Communication: Enables serial device connection and programming interface for data exchange and monitoring.
- Integrated Real-Time Clock (RTC): Supports scheduled control processes without external clock modules.
- 24 VDC Power Supply: Standard low-voltage power input for efficient and safe operation.
- Panel or DIN-Rail Mountable: Compact form allows space-saving installations within control panels.
- Terminal Block Termination: Simplifies connection of input/output wiring in field environments.
- Expandable I/O Capability: Supports additional I/O modules to scale system capacity up to 192 points.
- Multi-Function Control: Offers stored program control and synchronized pulse output management for basic motion control tasks.
- RoHS Compliant: Environmentally friendly and compliant with hazardous material restrictions.
- Discontinued Model: Now available primarily via surplus channels for supporting legacy automation systems.
The Omron CPM2C-20C1DR-D provides dependable control in compact industrial systems. Its built-in real-time clock, RS-232C interface, and relay output flexibility make it suitable for automated machinery, small conveyors, and OEM control panels requiring compact, programmable control solutions.
