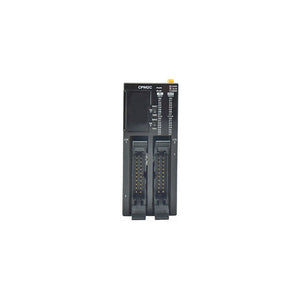

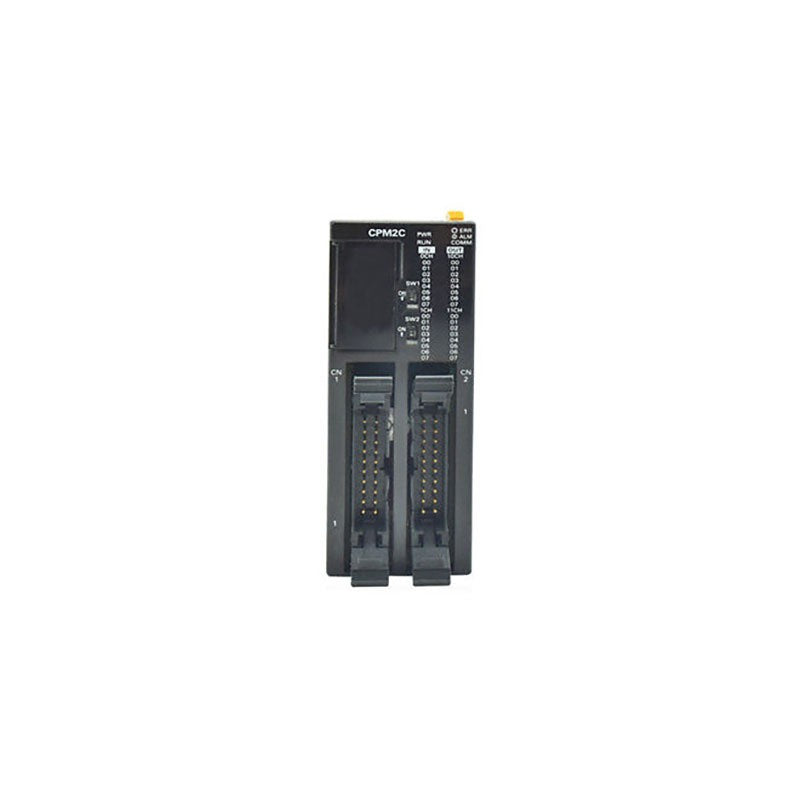

CPM2C-32CDT1C-D | Omron CPU Unit 32 I/O Points
- Regular price
- $1,768.00
- Sale price
- $1,768.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CPM2C-32CDT1C-D
Description
The Omron CPM2C-32CDT1C-D is a compact CPU unit with 32 I/O points, offering a balanced combination of digital inputs and transistor outputs for reliable control in small-scale automation. Designed for 24 VDC systems and DIN rail mounting, it supports up to 5 expansion modules for flexible configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
PLCs/Machine Control
|
| Part Number | CPM2C-32CDT1C-D |
| Subcategory | VDC Logic I/O Brain/Interface |
| I/O Points | 32 (16 Inputs, 16 Outputs) |
| Input Type | Digital (16) |
| Output Type | Solid State (14), Pulse (2) |
| Output Style | Sourcing Transistor |
| Supply Voltage | 24 VDC |
| Expandable | Yes, up to 5 modules |
| Memory Size | 2K Words |
| Communication | RS-232C |
| Mounting Type | DIN Rail |
| Display | None |
| Operating Temperature | 0°C ~ 55°C |
| Weight | 0.26 lbs |
Information About CPM2C-32CDT1C-D
The CPM2C-32CDT1C-D is part of the Omron CPM2C series and provides an integrated 32-point I/O configuration with 16 digital inputs and 16 sourcing-type solid-state outputs. Of the 16 outputs, 2 are pulse outputs suitable for high-speed control, while the remaining 14 serve as standard transistor outputs for general digital switching.
Operating at 24 VDC, the unit is suitable for compact control cabinets and is mounted via DIN rail. Though now obsolete, it remains in use within legacy systems due to its modular expandability (up to 5 additional modules) and onboard RS-232C communication. The unit includes 2K words of memory but does not feature a display, making it ideal for embedded or remote-control environments.
Key Features:
- Integrated I/O Capability: 16 digital inputs and 16 transistor outputs, including 2 high-speed pulse outputs, provide flexible control for digital devices.
- 24 VDC Power Supply: Operates efficiently on 24 VDC, making it compatible with a wide range of industrial power environments.
- Solid-State Outputs: Uses sourcing transistor outputs for reliable switching and extended life expectancy in harsh control settings.
- Pulse Output Functionality: Two outputs support pulse signals, ideal for controlling stepper motors or frequency-based applications.
- Modular Expansion: Supports up to 5 expansion modules, allowing scalability as system complexity grows.
- Compact DIN Rail Mounting: Enables easy integration into control panels with minimal space requirements.
- RS-232C Communication Port: Facilitates connection with HMIs, PCs, and other automation components for data exchange.
- Legacy System Support: While obsolete, the unit remains compatible with many existing CPM2C installations, ensuring continued system reliability.
The CPM2C-32CDT1C-D offers practical and programmable control for small automation systems, with a strong mix of inputs, pulse output capability, and modular expandability.
