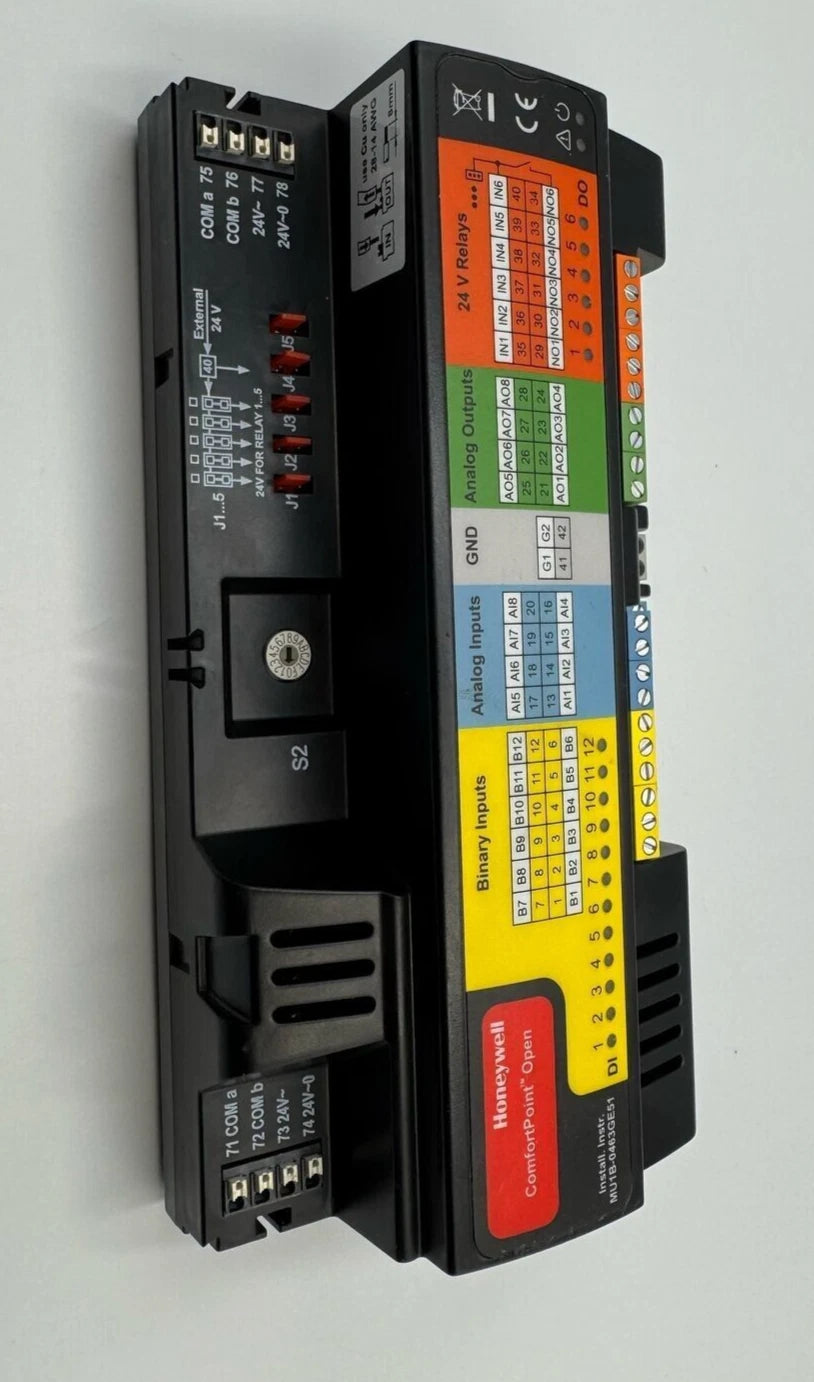

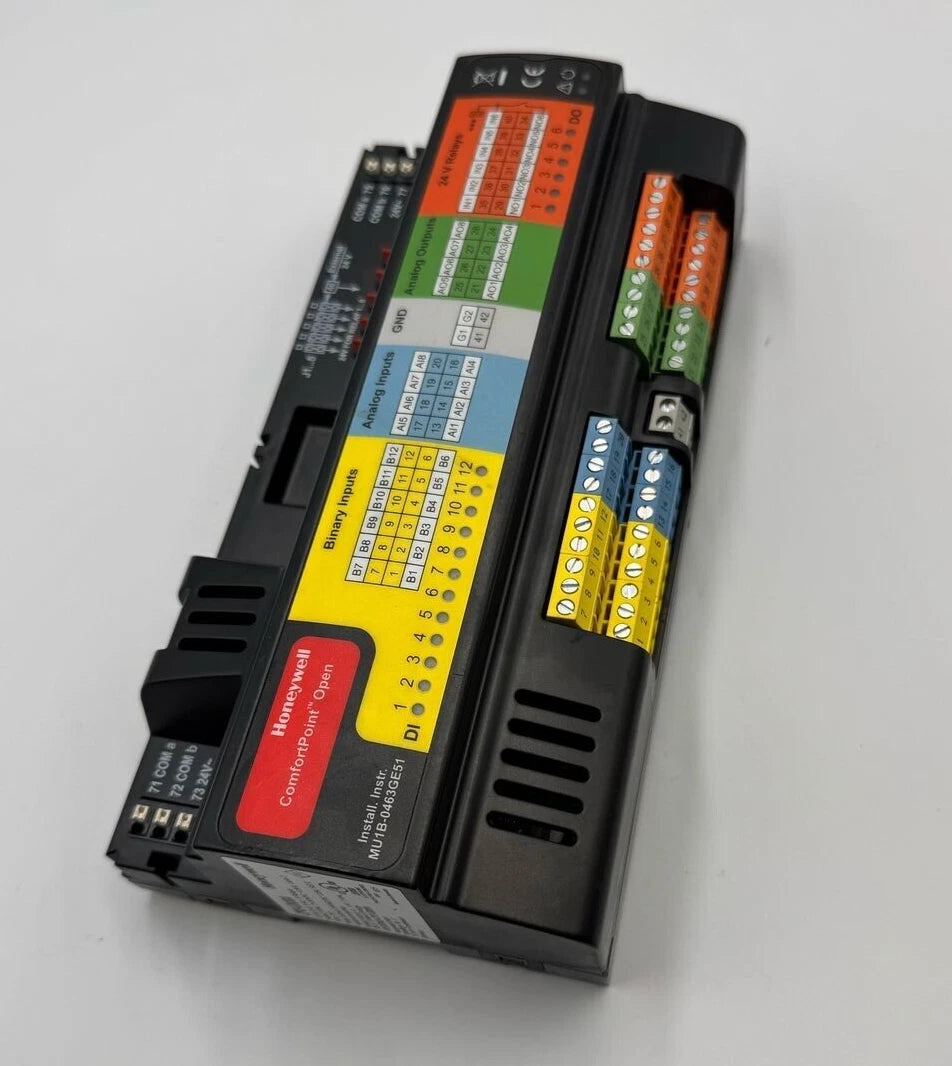

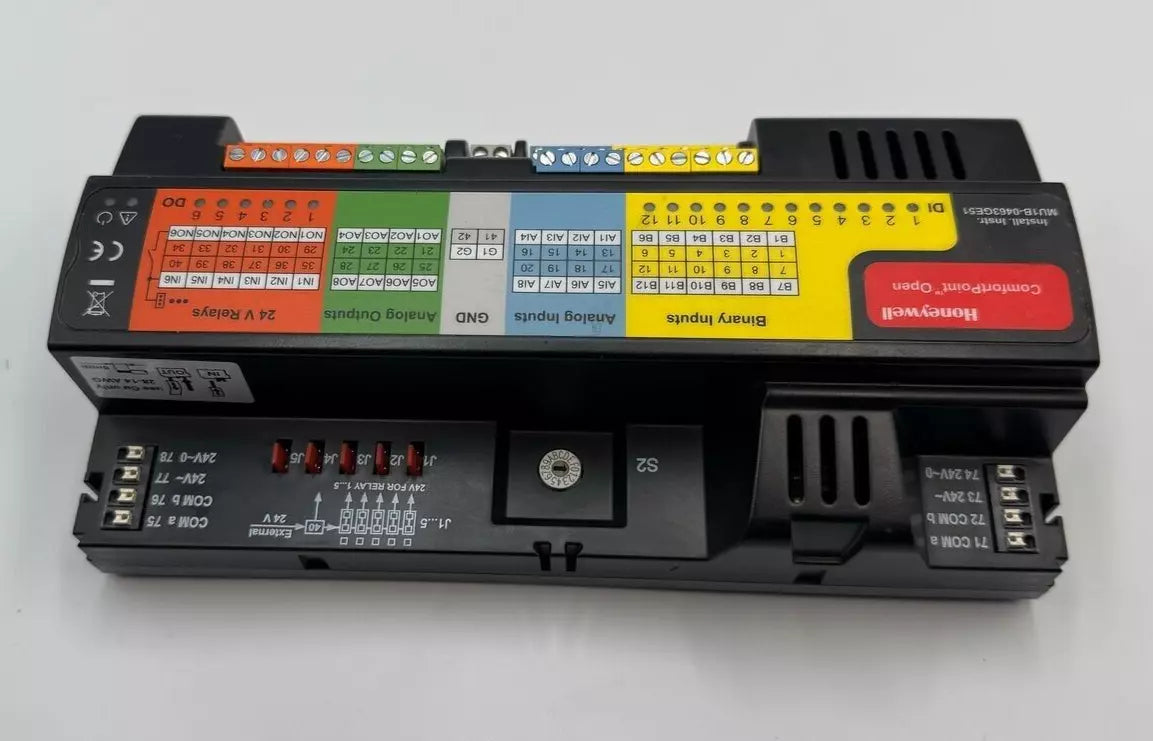

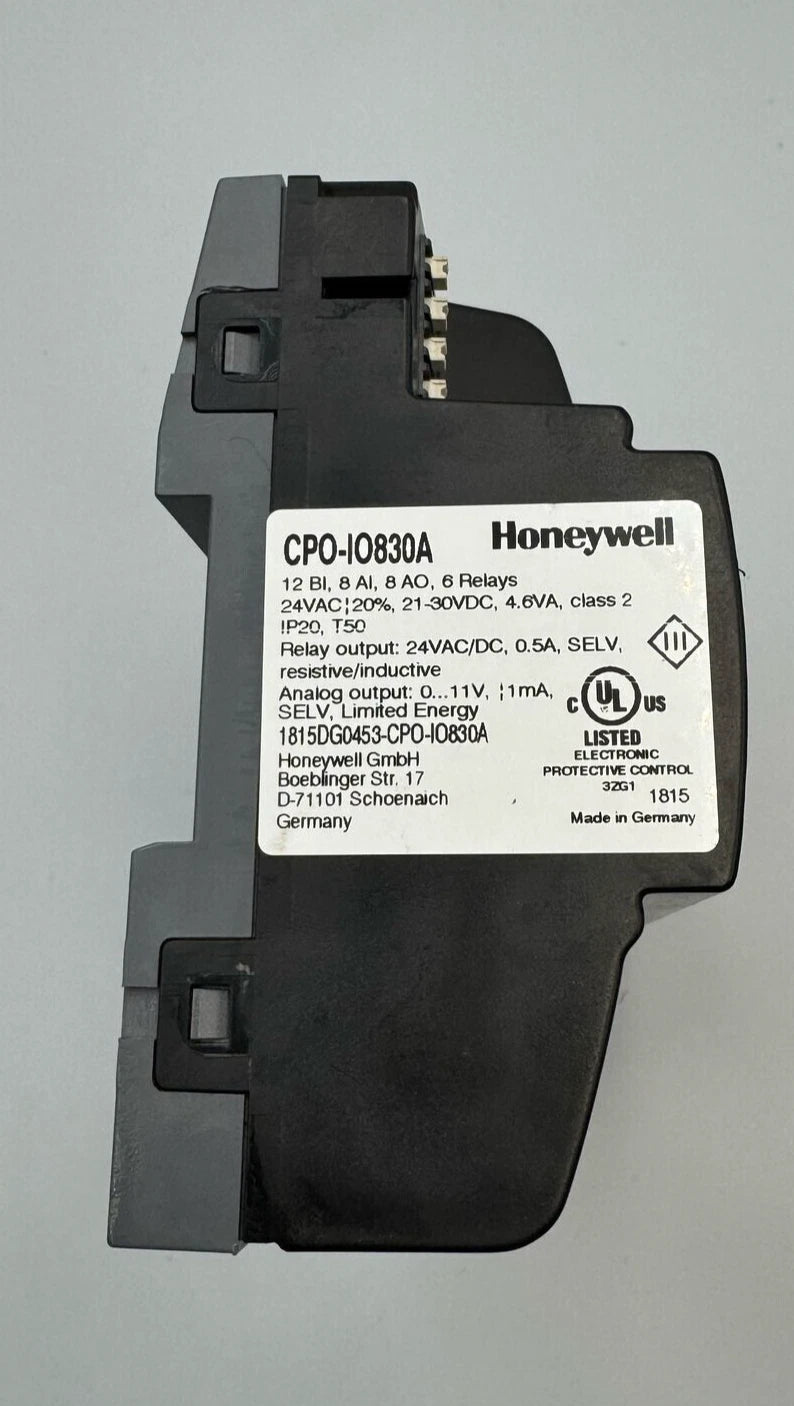

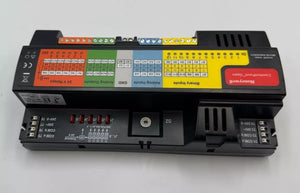

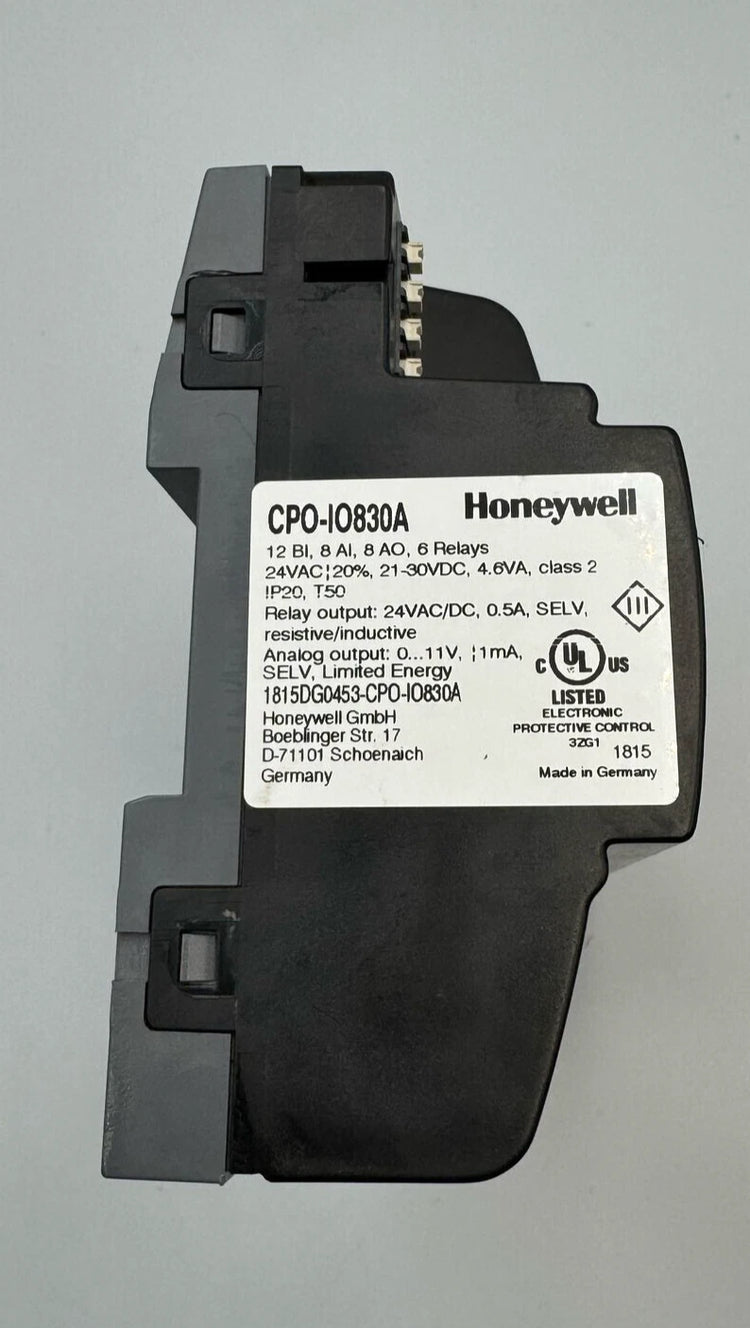

CPO-IO830A | Honeywell Mixed Panel I/O Control Module
- Regular price
- $1,137.00
- Sale price
- $1,137.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CPO-IO830A
Description
The Honeywell CPO-IO830A is a mixed panel I/O module used in ComfortPoint™ Open building automation systems. It provides flexible input and output capabilities for resistive and inductive loads, with support for 24 VAC/VDC operation and built-in protection for short-circuits and overvoltages.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
PLCs/Machine Control
|
| Part Number | CPO-IO830A |
| Subcategory | VDC Logic I/O Module |
| Series | ComfortPoint™ Open |
| Product Type | Mixed Panel I/O Module |
| Input Voltage Range | 24 VAC ±20%, 50/60 Hz; 21–30 VDC |
| Power Consumption | 200 mA (24 VAC) or 95 mA (24 VDC) |
| Load Compatibility | Resistive / Inductive |
| Number of Relays | 6 |
| Relay Load Rating | 0.5 A max per relay |
| Power Rating | 4.6 VA |
| Minimum Load | 1 mA |
| Terminal Type | Screw: 2.5 mm² / Push-in: 1.5 mm² |
| Overvoltage Protection | 28 VAC or 40 VDC on all terminals |
| Weight | 0.1 lbs |
| Short-Circuit Protection | Yes (on output terminals) |
| IP Rating | IP20 |
| Mounting Conditions | Lockable panel only |
| Operating Temperature | As per system specification (not explicitly stated) |
| Certifications | CE (LVD 2006/95/EC, EMC 2004/108/EC), UL60730, CSA C22.2 |
| Compliance Standards | EN 60730-1, EN 60730-2-9, FCC Part 15 |
| Product Status | Active |
Information About CPO-IO830A
The CPO-IO830A is part of Honeywell’s ComfortPoint™ Open I/O module family and is designed for use in plant control and building automation applications. Operating at 24 VAC (±20%) or 21–30 VDC, this module supports up to 6 relay outputs for controlling various resistive or inductive loads. The device offers terminal connection flexibility with both push-in (1.5 mm²) and screw-type (2.5 mm²) options, while ensuring safety with integrated overvoltage and short-circuit protection. The CPO-IO830A is FCC certified and meets CE, UL60730, and CSA C22.2 standards, ensuring safe use in regulated environments. It is IP20-rated and designed to be installed only by authorized personnel within lockable or enclosed cabinets to prevent unauthorized access.
Key Features:
- Mixed I/O Module: Supports both resistive and inductive load switching.
- 6 Relay Outputs: Capable of controlling multiple devices with individual relay control.
- Wide Input Power Range: Operates on 24 VAC ±20% or 21–30 VDC.
- Low Power Consumption: Uses only 4.6 VA or 0.5 A max for efficient operation.
- Overvoltage Protection: All terminals are protected up to 28 VAC / 40 VDC.
- Short-Circuit Protection: Output terminals include internal protection for circuit safety.
- Flexible Termination: Compatible with both push-in (1.5 mm²) and screw (2.5 mm²) terminals.
- Compact Design: Suitable for cabinet installations with IP20 environmental rating.
- Certified for Global Use: Meets UL, CSA, CE, LVD, and EMC directives.
- Secure Installation Required: Must be installed by authorized personnel in locked panels.
The CPO-IO830A delivers reliable mixed I/O performance for ComfortPoint™ Open control systems in commercial HVAC and building automation.
