CPU-N16LD | Notifier Modular Fire Alarm Control Panel with Touchscreen & CLSS Connectivity
- Regular price
- $3,299.00
- Sale price
- $3,299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CPU-N16LD
Description

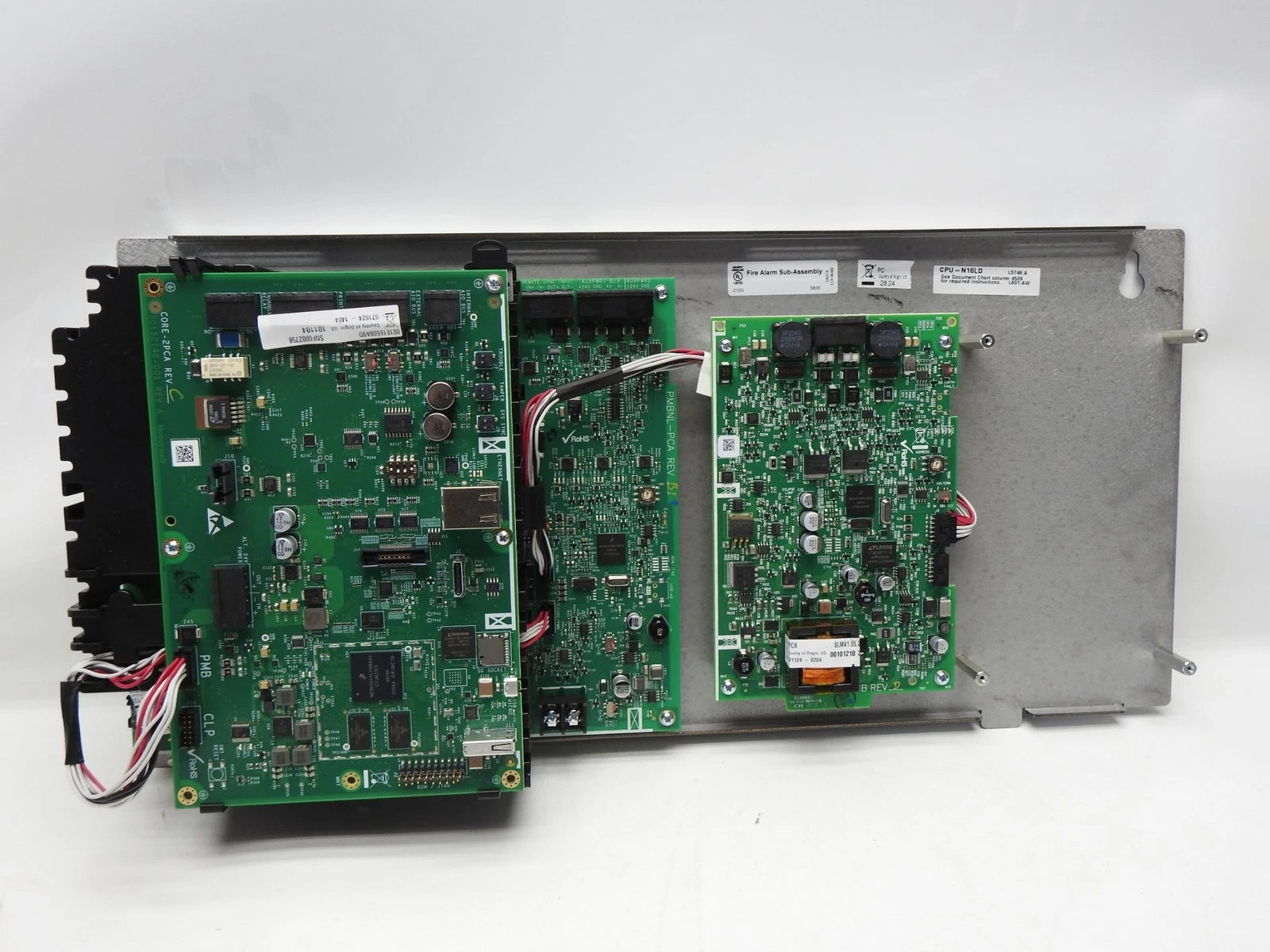

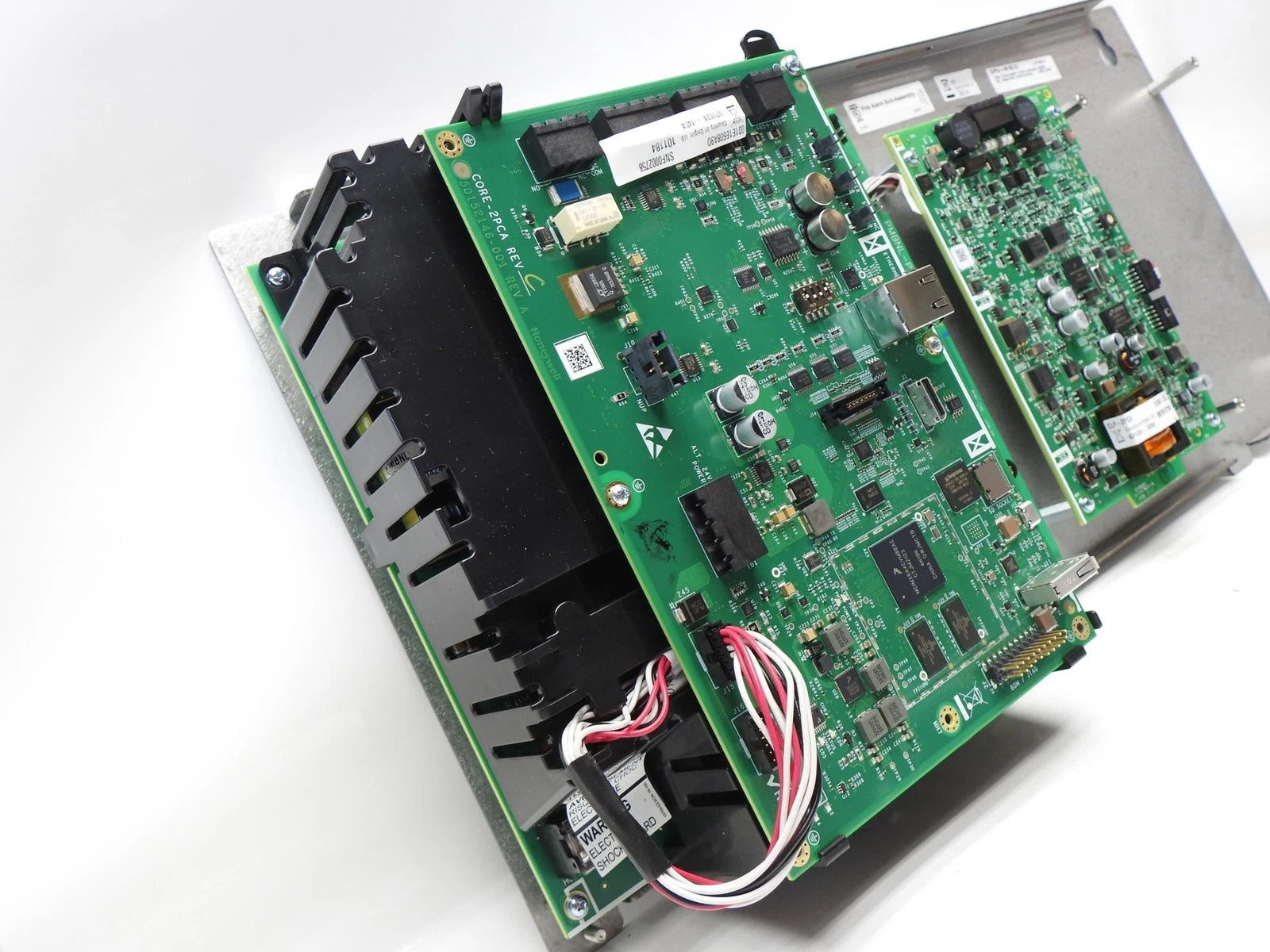

The Notifier® CPU-N16LD by Honeywell is a modular fire alarm control panel designed for the Notifier Inspire Series. It provides intelligent fire detection, notification, and networked communication across complex building environments. Engineered for scalability, the CPU-N16LD supports large installations with up to 3,180 addressable devices, ensuring reliable and advanced life safety monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Systems |
| Part Number | CPU-N16LD |
| Subcategory | Fire Alarm Control Panels |
| Series | Notifier Inspire Series |
| Display | 10" high-definition color touchscreen |
| Device Capacity | Up to 3,180 addressable devices (10 SLM-318 modules) |
| Power Supply | 6.0 A with customizable outputs |
| Auxiliary Outputs | Two configurable for resettable or non-resettable operation |
| NAC Circuits | Four Class A/B power outputs, configurable as NAC or power circuit |
| Synchronization | System Sensor, Wheelock, Gentex compatible |
| Networking | Standard or high-speed NOTI•FIRE•NET (up to 200 nodes) |
| Cloud Connectivity | Compatible with Connected Life Safety Services (CLSS) |
| History Buffer | 10,000 events (3,000 displayed) |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Compliance | UL, FM, CSFM, FDNY Approved |
| Weight | — |
Information About CPU-N16LD
The CPU-N16LD is part of the Notifier Inspire Series, known for its modular design and robust system integration capabilities. This control panel can operate as a standalone or networked unit and supports up to 10 Signaling Line Modules (SLM-318), allowing flexible configuration for small or large-scale applications. It integrates seamlessly with Connected Life Safety Services (CLSS) for cloud-based monitoring, programming, and diagnostics. Designed for compliance with UL, FM, and CSFM standards, the CPU-N16LD ensures dependable performance in commercial, industrial, and institutional facilities.
Key Features:
- Modular Architecture: Supports flexible configuration for standalone or networked systems.
- High-Capacity Device Support: Accommodates up to 3,180 intelligent addressable devices using 10 SLM-318 modules.
- Touchscreen Interface: Equipped with a 10-inch color touchscreen for intuitive system management and event visibility.
- Integrated Voice and Communication: Offers optional single or multichannel digital voice and firefighter’s telephone.
- Cloud Connectivity: Compatible with CLSS for remote system monitoring, configuration, and diagnostics.
- Advanced Event Management: Features 10,000-event history buffer and configurable alarm verification per point.
- Network Compatibility: Supports NOTI•FIRE•NET and high-speed network connections for up to 200 nodes.
- Standards Compliance: UL, FM, CSFM, and FDNY approved for fire alarm applications.
The CPU-N16LD delivers the reliability and precision required for modern life safety, fire detection, and building protection systems.
