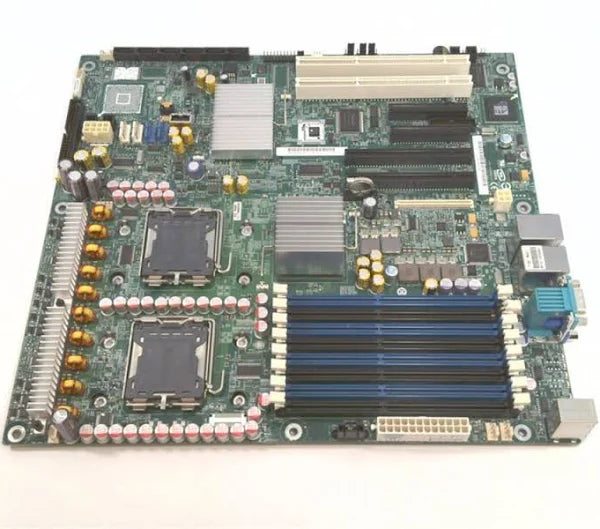

CPU-S5000SL | Intel | Computer Accessory
- Regular price
- $564.00
- Sale price
- $564.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: CPU-S5000SL
Description
Technical Specifications
|
Part # |
CPU-S5000SL |
|
Manufacturer |
INTEL |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PC Board Computer Server Board |
|
Dimension |
13.0 inches x 12.0 inches (330.2 mm x 304.8 mm) |
|
Processors |
Socket J (771-pin LGA sockets) supporting one or two Intel® Xeon® processors 5000 sequence, with system bus speeds of 667 MHz, 1066 MHz, and 1333 MHz. Only product codes ending with an ‘R’ support 45-nm Intel® Xeon® Processors 5200 Series or 45-nm Intel® Xeon® Processors 5400 Series. |
|
Memory |
Eight DIMM sockets supporting fully buffered DIMM technology (FBDIMM) memory. 240-pin DDR2-533 and DDR2-677 FBDIMMs can be used. |
|
Chipset |
Intel® 5000P Memory Controller Hub (Intel® Server Board S5000PSL only). Intel® 5000X Memory Controller Hub (Intel® Server Board S5000XSL only). Intel® ESB2-E I/O Controller. |
|
Add-in Cards |
- One full-length/full-height PCI-X 64-bit slot with up to 133-MHz support when only one PCI-X slot is populated. - One full-length/full-height PCI-X 64-bit slot with up to 100 MHz support. - One full-length/full-height PCI Express* x8 (x4 throughput)[1] or x8 (x8 throughput) slot [2]. - One half-length/full-height PCI Express* x8 (x4 throughput) slot. - Two full-length/full-height PCI Express* x16 (x8 throughput) slots. |
|
On-board Connectors/Headers |
- Stacked PS/2 ports for keyboard and mouse. - Stacked video/DB9 serial port A connector. - Two RJ-45/Two USB connectors for 10/100/1000 Mb and USB 2.0 support. - One USB 2x5 pin header, which supports two USB ports. - One USB port Type A connector. - One DH-10 serial port B header. - Six SATA-2 connectors with embedded RAID 0, 1, and 10 support[2]. Software RAID 5 support through an optional SATA Software RAID 5 Activation Key[3]. - Two SATA-2 connectors and four SAS/ SATA-2 connectors with embedded RAID 0, 1, and 10 support[1]. Software RAID 5 support through an optional SAS RAID KEY[3]. The embedded SAS RAID supports up to eight hard drives with expander backplane. - One ATA100 40-pin connector. - One RMM/RMM2 connector to support the optional Intel® Remote Management Module or Intel® Remote Management Module 2. - One I/O connector supporting an optional Intel® RMM/RMM2 NIC I/O module. - SSI-compliant front panel header. - SSI-compliant 24-pin main power connector, supporting the ATX-12 V standard on the first 20 pins. |
|
Video |
On-board ATI* ES1000 video controller with 16-MB DDR SDRAM. |
|
Hard Drive Support |
Support for six SATA-2 hard drives. Support for four SAS/SATA-2 hard drives with non-expanded backplane[4]. |
|
LAN |
Two 10/100/1000 Intel® 82563EB PHYs supporting Intel® I/O Acceleration Technology. |
|
Fans |
Support for - Two processor fans. - Four front hot-swap fans. - Two rear system fans. |
|
Server Management |
Support for Intel® System Management Software. |
Information About CPU-S5000SL
The CPU-S5000SL, manufactured by INTEL, falls under the category of PLCs/Machine Control, specifically serving as a PC Board Computer Server Board. Its dimensions measure 13.0 inches x 12.0 inches (330.2 mm x 304.8 mm).
Equipped with Socket J (771-pin LGA sockets), it supports one or two Intel® Xeon® processors 5000 sequence, with system bus speeds ranging from 667 MHz to 1333 MHz. Note that only product codes ending with an 'R' extend support to 45-nm Intel® Xeon® Processors 5200 Series or 45-nm Intel® Xeon® Processors 5400 Series.
The CPU-S5000SL boasts eight DIMM sockets, accommodating fully buffered DIMM technology (FBDIMM) memory. Users can utilize 240-pin DDR2-533 and DDR2-677 FBDIMMs.
Its chipset configuration includes the Intel® 5000P Memory Controller Hub, which is exclusive to the Intel® Server Board S5000PSL, and the Intel® 5000X Memory Controller Hub, designed for the Intel® Server Board S5000XSL. Additionally, it incorporates the Intel® ESB2-E I/O Controller.
For add-in cards, the CPU-S5000SL features a diverse array of options. These include a full-length/full-height PCI-X 64-bit slot with support for up to 133-MHz when only one slot is populated. There's also another full-length/full-height PCI-X 64-bit slot, which supports up to 100 MHz. Furthermore, it includes a full-length/full-height PCI Express* x8 slot, offering either x4 throughput or x8 throughput. Additionally, a half-length/full-height PCI Express* x8 slot is available. The board also features two full-length/full-height PCI Express* x16 slots.
Manufacturer information
Intel Corporation designs, develops, manufactures, markets, and sells computing and related products and services worldwide. It operates through Client Computing Group, Data Center and AI, Network and Edge, Mobileye, and Intel Foundry Services segments.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
