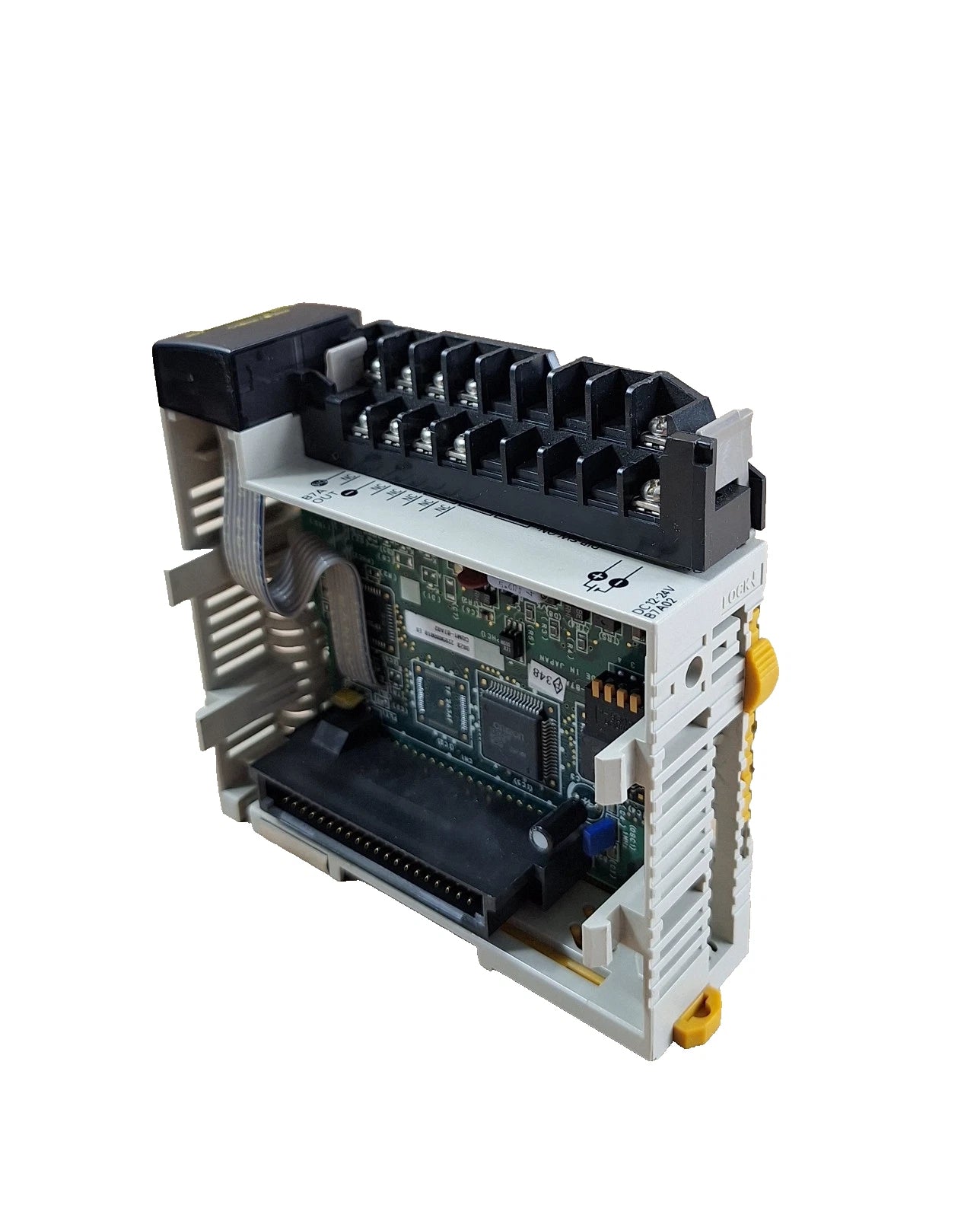

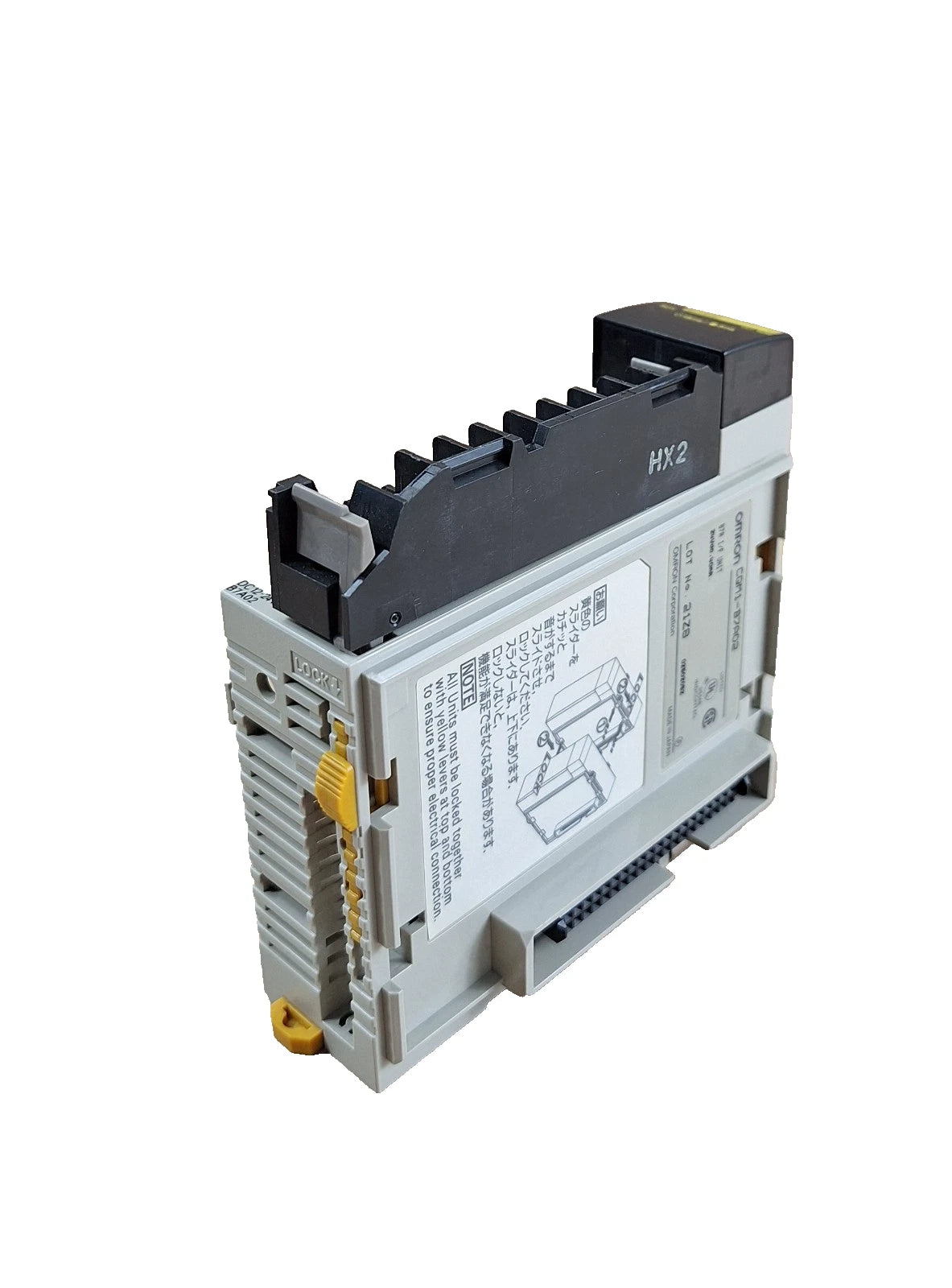

CQM1-B7A02 | Omron 16-Channel B7A Remote Output I/O Module

CQM1-B7A02 | Omron 16-Channel B7A Remote Output I/O Module

Part #: CQM1-B7A02 Manufactured by: Omron

Regular price: $339.00
Sale price: $339.00
Regular price

1 in Stock

Condition: New-Surplus Original Box

Shipping calculated at checkout.

Product variants:

Quantity:

Product Overview

The CQM1-B7A02 is a 16-channel remote output module for Omron CQM1 PLC systems. It enables structured B7A-based communicat... Read more

We accept:

Talk to a real expert.

+1 (828) 222-3490

sales@iqelectro.com

Mon–Sat, 7:00 AM – 8:00 PM (EST)

IQElectro 2-Year Warranty

Warranty for Product #: CQM1-B7A02

IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms

2-3 Day Free Shipping

Packed Ready to Ship

24/7 Expert Support

Return within 30-Days

IQElectro is Not an authorized distributor for Omron

Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: CQM1-B7A02

Description / Specifications

Description

The Omron CQM1-B7A02 is a remote I/O interface module designed for B7A transmission systems within CQM1 PLC platforms. It provides 16 output channels for distributed control applications. This module enables efficient remote output operation using time-division multiplex communication.

Technical Specifications

Condition	New/Never Used Surplus
Brand	Omron
Category	PLCs/Machine Control
Part Number	CQM1-B7A02
Subcategory	PLC Module/Rack
Series	CQM1
Module Type	B7A Remote Output Interface
Number of Outputs	16 Channels
Communication Method	Unidirectional Time-Division Multiplex
External Power Supply	12–24 VDC
Current Consumption	100 mA at 5 VDC
Isolation Type	Photocoupler
Transmission Delay	19.2 ms (Standard) / 3 ms (Rapid)
Error Handling Options	HOLD or LOAD OFF
Mounting Type	DIN Rail or Panel Mount
Weight	0.88 lbs

Information About CQM1-B7A02

The CQM1-B7A02 is part of the Omron CQM1 series and functions as a B7A transmission interface module for remote I/O expansion. It supports 16 output points and utilizes unidirectional time-division multiplex communication to transmit control signals. The module requires an external 12–24 VDC supply for B7A transmission and incorporates photocoupler isolation for signal protection. Designed for DIN rail or direct panel mounting, it integrates into distributed control systems with configurable transmission delay options.

Key Features:

16 Output Channels: Provides distributed remote output control capability.
B7A Transmission Interface: Supports remote I/O communication via time-division multiplexing.
Photocoupler Isolation: Enhances signal integrity and electrical protection.
External 12–24 VDC Supply: Required for B7A transmission operation.
Selectable Transmission Delay: Standard 19.2 ms or rapid 3 ms communication mode.
Transmission Error Handling: Configurable HOLD or LOAD OFF output response.
DIN Rail or Panel Mounting: Flexible installation options for control cabinets.

The CQM1-B7A02 delivers the reliability and precision required for distributed remote output control in PLC automation systems.
