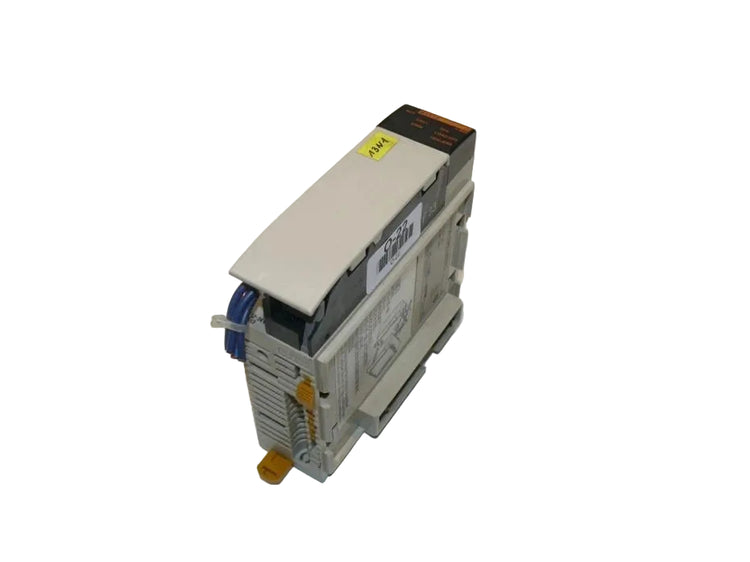

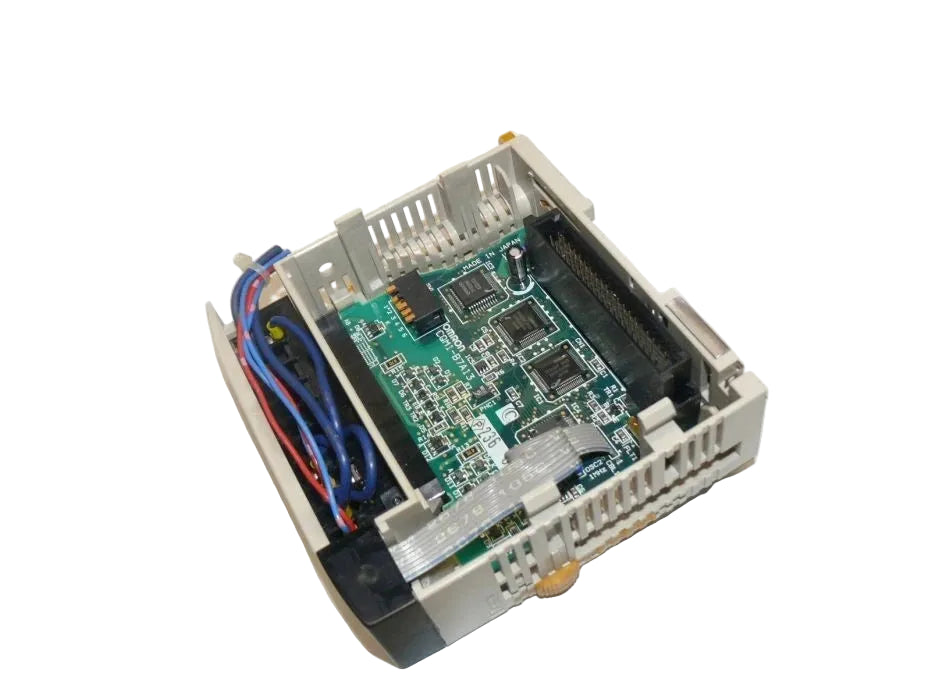

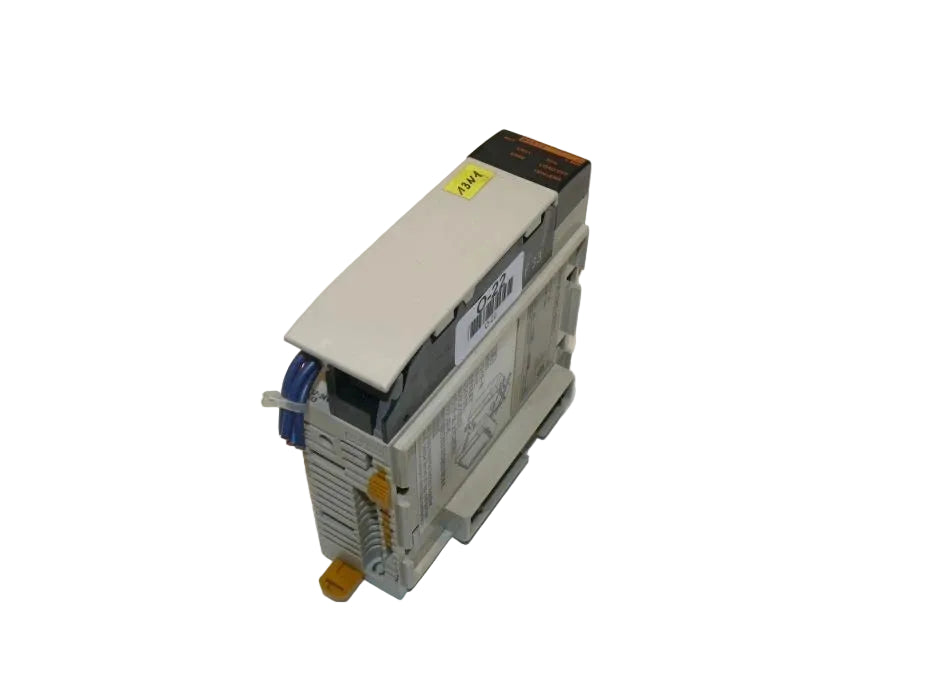

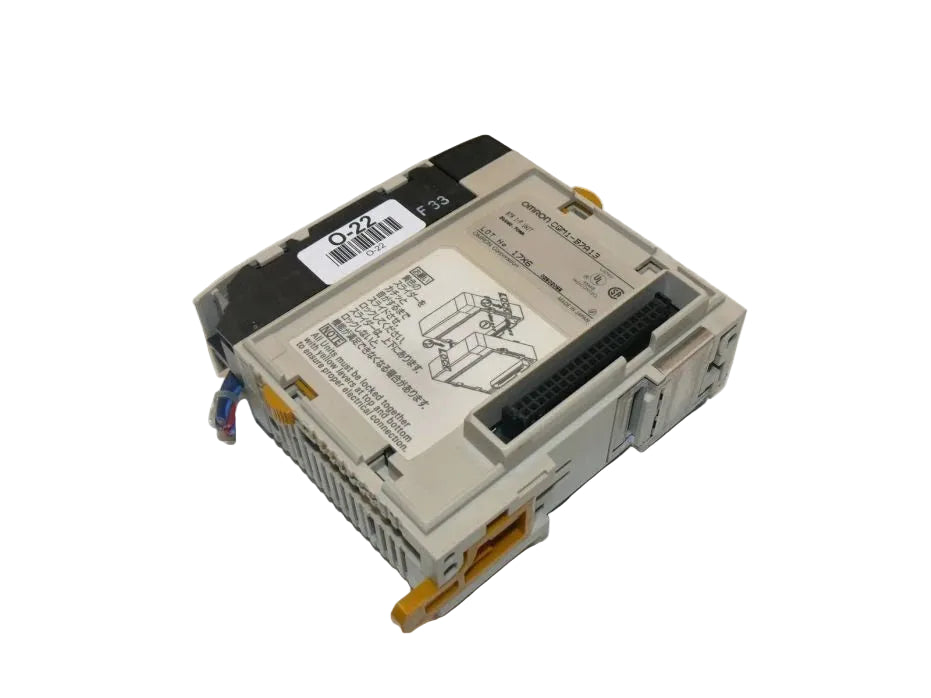

CQM1-B7A13 | Omron CQM1 32-Point DC Input Interface Module
- Regular price
- $309.00
- Sale price
- $309.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CQM1-B7A13
Description
The Omron CQM1-B7A13 is an interface module designed for use with Omron CQM1 Series PLC systems. This DC input unit provides 32 input points for efficient signal transmission between field devices and the PLC. Engineered for industrial environments, the CQM1-B7A13 supports reliable data communication and flexible installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC Modules |
| Part Number | CQM1-B7A13 |
| Subcategory | Interface Modules |
| Product Line | CQM1 |
| Series | CQM1, B7A Interface Units Series |
| Model Type | DC Input Unit |
| Number of Input Points | 32 Points |
| Power Supply Voltage | 12–24 VDC |
| Current Rating | 70 mA |
| Current Consumption (5 VDC) | 100 mA |
| Transmission Method | Single-Direction, Time-Division Multiplex |
| Transmission Distance (Long Distance) | 500 m max. or 100 m max. |
| Transmission Distance (High-Speed) | 100 m max. or 50 m max. |
| Transmission Speed (Normal) | 19.2 ms typical; 31 ms max. |
| Transmission Speed (High-Speed) | 3 ms typical; 5 ms max. |
| Terminal Type | Screw Terminal |
| Mounting Method | DIN Rail |
| Weight | 0.38 lbs (0.17 kg) |
Information About CQM1-B7A13
The CQM1-B7A13 is part of Omron’s B7A Interface Units Series within the CQM1 PLC platform. It is designed to handle 32 DC input points using single-direction, time-division multiplex transmission. The module supports both long-distance and high-speed transmission modes, allowing adaptable system layouts based on application requirements. With screw terminal connections and DIN rail mounting, it integrates easily into control panels while maintaining consistent electrical performance.
Key Features:
- 32-Point DC Input Capacity: Supports multiple input signals for efficient field device integration.
- B7A Interface Technology: Enables reliable multiplex communication between PLC and input devices.
- Wide DC Voltage Support: Operates on 12–24 VDC power supply for flexible system compatibility.
- Dual Transmission Modes: Supports long-distance and high-speed communication configurations.
- Screw Terminal Connections: Provides secure and service-friendly field wiring.
- DIN Rail Mounting: Allows fast and standardized installation in control panels.
- Industrial Compliance: Designed to meet applicable international standards for automation equipment.
The CQM1-B7A13 delivers the reliability and precision required for DC input signal interfacing in industrial PLC communication systems.
