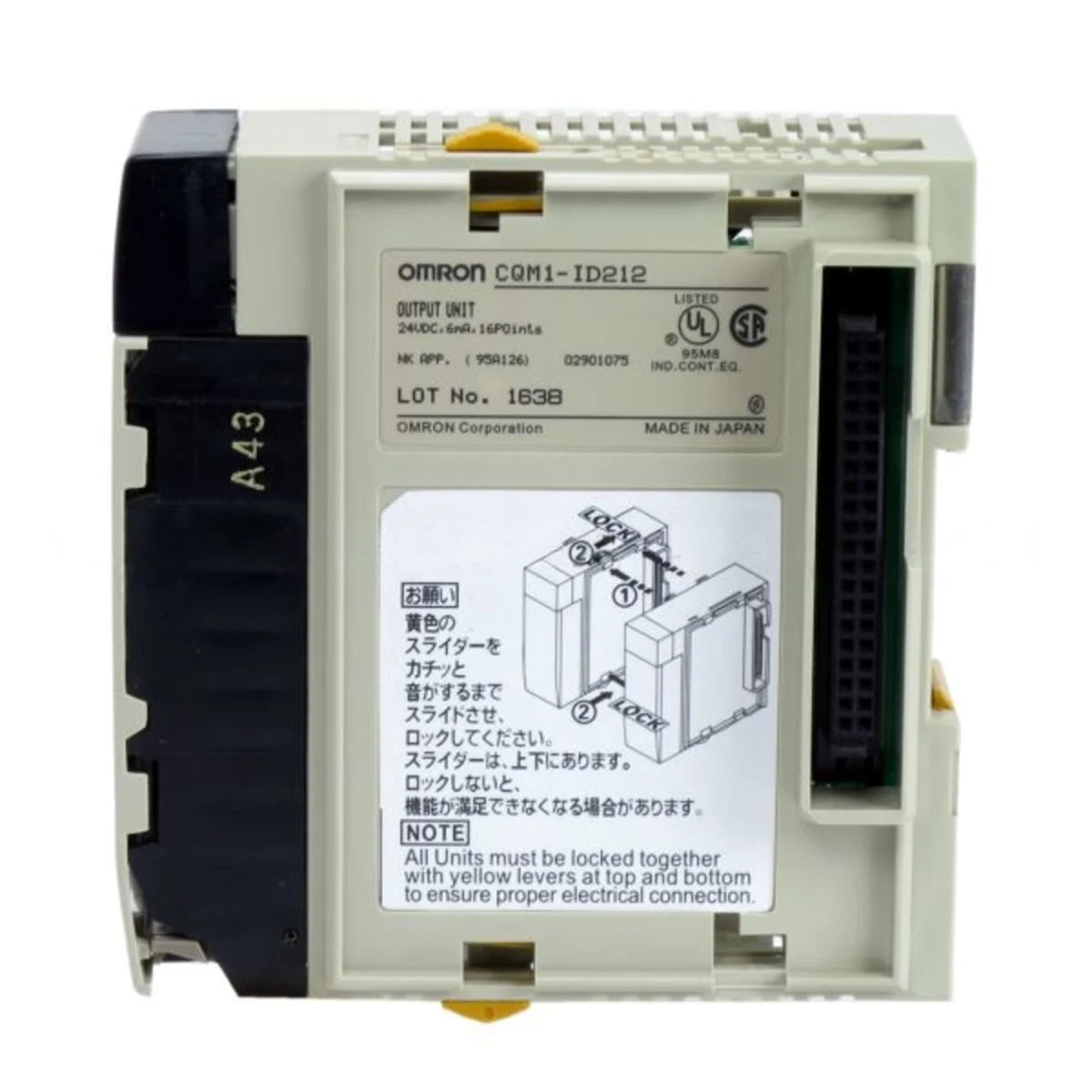

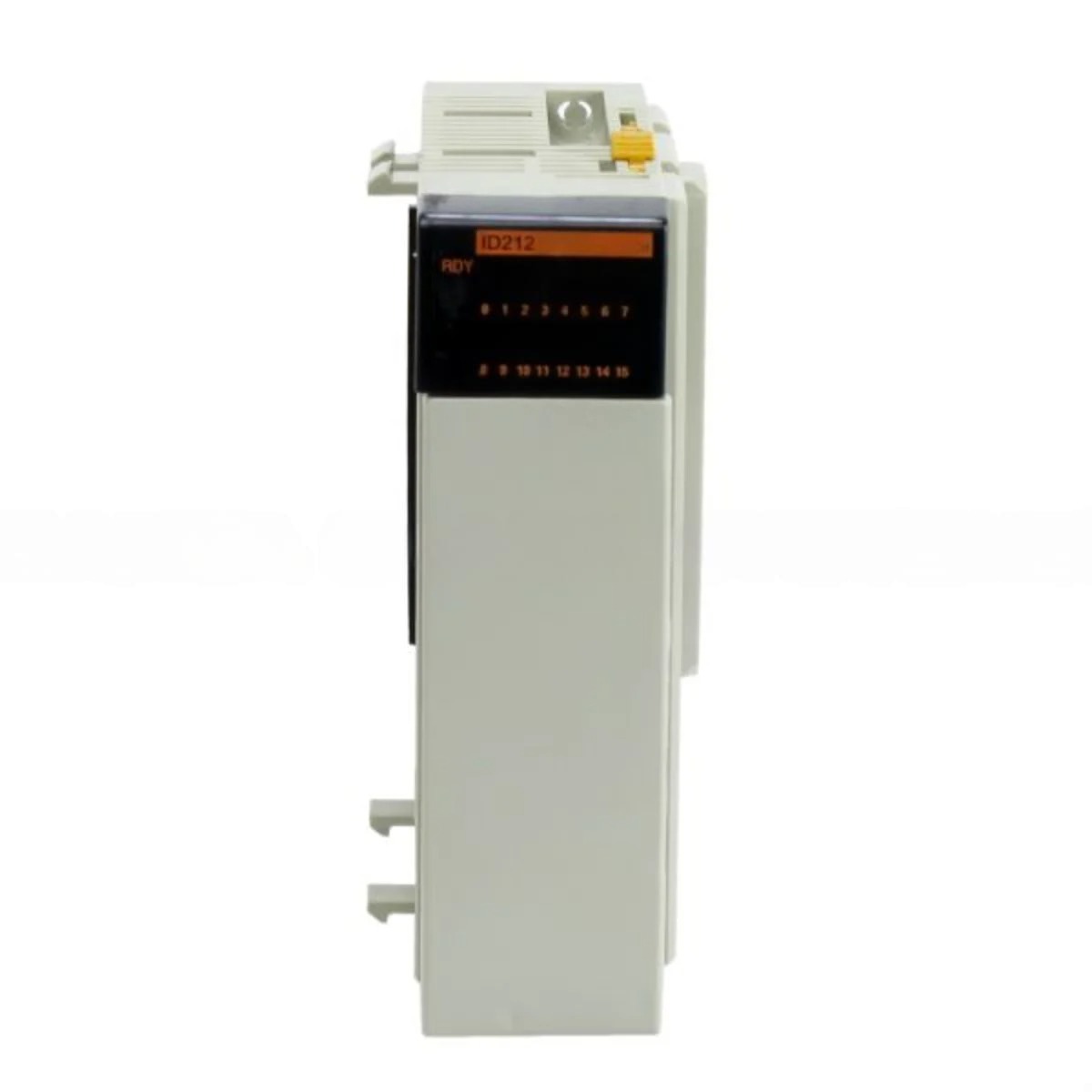

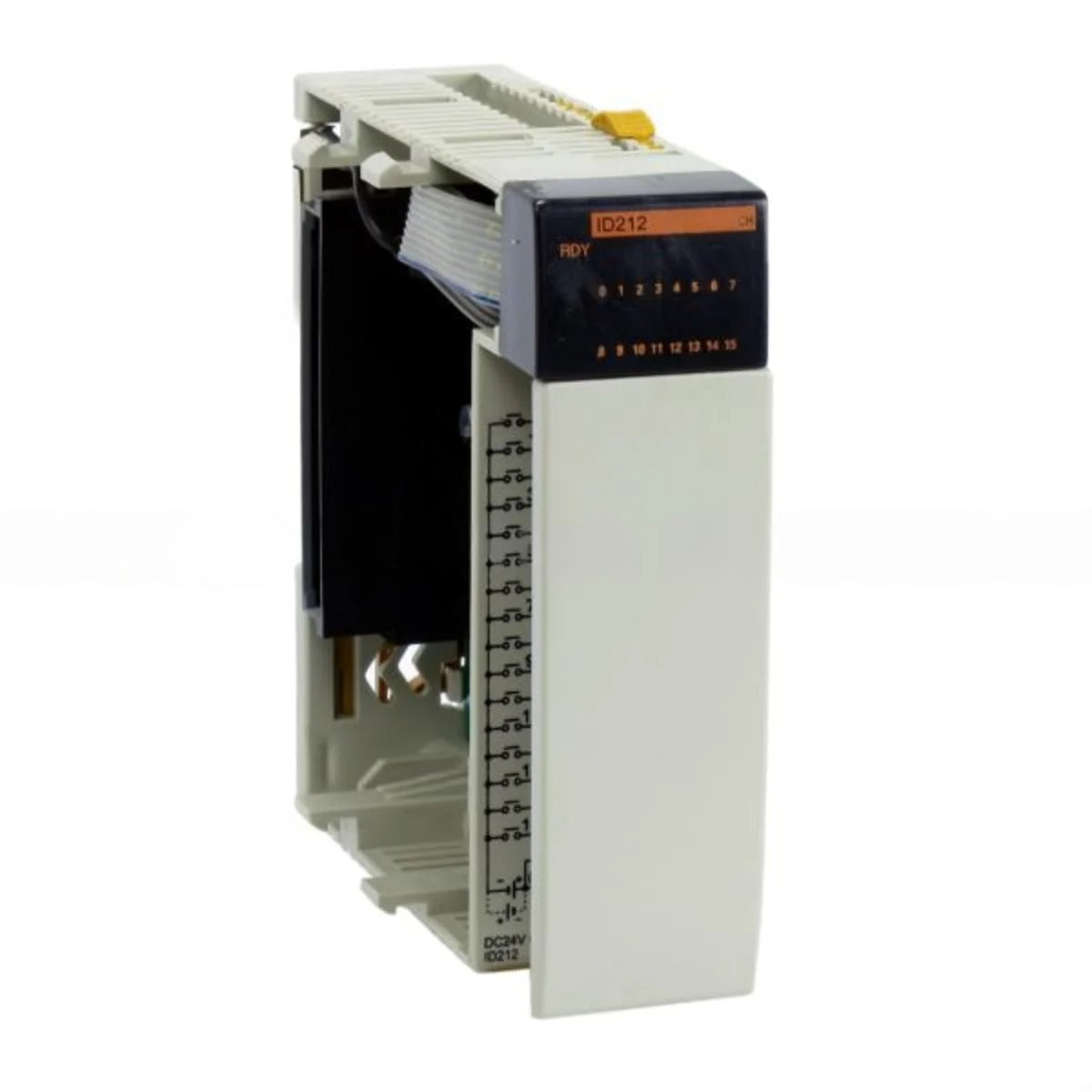

CQM1-ID212 | Omron 16-Point 24VDC PLC Input Module
- Regular price
- $189.00
- Sale price
- $189.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CQM1-ID212
Description
The Omron CQM1-ID212 is a 16-point DC input module for SYSMAC CQM1 PLC systems, operating at 24 VDC with a shared common configuration. It offers fast response times, configurable noise filtering, and versatile compatibility with both NPN and PNP output devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC Input Modules |
| Part Number | CQM1-ID212 |
| Subcategory | DC Input Modules |
| Series | SYSMAC CQM1 |
| Type | Input Controller |
| Input Points | 16 |
| Input Voltage | 24 VDC +10% / -15% |
| Operating Voltage Range | 20.4 to 26.4 VDC |
| Input Impedance | 3.3 kΩ |
| Input Current | 7 mA typical at 24 VDC |
| ON Voltage / Current | 14.4 VDC min / 3 mA min |
| OFF Voltage / Current | 5.0 VDC max / 1 mA max |
| Number of Circuits | 1 (16 points/common) |
| ON Response Time | 15 μs (can be set 0–32 ms) |
| OFF Response Time | 90 μs (can be set 0–32 ms) |
| Digital Filter | Configurable 0–32 ms |
| Connection Method | Terminal block (removable) |
| Compatibility | NPN or PNP outputs |
| Weight | 0.40 lbs |
Information About CQM1-ID212
The CQM1-ID212 is part of the Omron CQM1 series, designed to handle digital input signals from field devices in industrial automation systems. It supports 16 DC input points with one shared common, accepting voltages from 20.4 to 26.4 VDC and featuring a 3.3 kΩ input impedance for precise signal detection. The module can be connected to sensors or devices with either NPN or PNP outputs, eliminating the need for polarity selection. Built with configurable digital filtering, high-speed response capability, and a removable terminal block, it is well-suited for flexible installation and reliable operation in demanding environments.
Key Features:
-
16 DC input points: Handles up to 16 input signals in one shared common configuration for efficient wiring.
-
Wide voltage acceptance: Operates within a 20.4–26.4 VDC range, compatible with most industrial DC devices.
-
Polarity-free connection: Works with both NPN and PNP outputs without requiring polarity selection.
-
Configurable response time: Adjustable digital filter from 0 to 32 ms to minimize noise effects.
-
High-speed performance: Offers ON response as fast as 15 μs and OFF response as fast as 90 μs for time-critical applications.
-
Terminal block connection: Removable block allows quick installation and maintenance.
-
Strong noise immunity: Digital filtering and robust circuit design reduce false signals from electrical interference.
The CQM1-ID212 delivers the reliability and precision required for accurate and noise-resistant digital input processing in PLC-based control systems.
