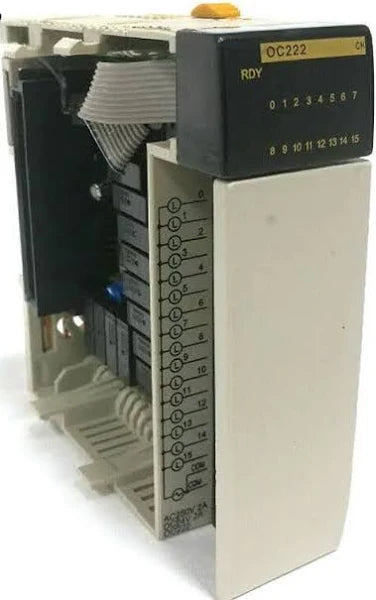

CQM1-OC222 | OMRON Output module
CQM1-OC222 | OMRON Output module
Part #: CQM1-OC222 Manufactured by: OMRON

CQM1-OC222 | OMRON Output module

Regular price
$155.00
Sale price
$155.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The Omron CQM1-OC222 is a highly capable output module designed to provide efficient control in industrial automation syst...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: CQM1-OC222
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for OMRON
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
CQM1-OC222 | OMRON Output module
    CQM1-OC222 | OMRON Output module
CQM1-OC222 | OMRON Output module
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: CQM1-OC222

Description / Specifications

Description

The Omron CQM1-OC222 is an output module that can handle resistive and inductive loads with a maximum switching current rating of 2 amps and supports 250 V AC and 24 V DC voltage ratings with its 16 output terminals. Simpler wiring is made possible by the module's small size and common type. Its goal is to provide dependable output control that is both effective and efficient, providing smooth integration into current setups for enhanced automation process performance.



Technical Specifications



Brand OMRON
Number of Outputs 16 pts
Part Number CQM1-OC222
Voltage 250V AC, 24V DC
Max Switching Current 2 Amps
ON Delay Time 10 ms
OFF Delay Time 5 ms
Current Consumption 850 milliamps at 5 Volts DC
Supported Load Types Resistive and Inductive
Relay Type G6D-1A
Response Time 12 ms
Output Capacity 2A/P and 8A/U
Input Current Range 0.4 mA to 0.8 mA
Communication Protocols ControllerLink, CompoBus/S, SYSMAC BUS
Memory Capacity Up to 15 kwords





Information About CQM1-OC222

The Omron CQM1-OC222 is a cutting-edge output module with efficient control and dependable performance developed for industrial automation systems. It supports two voltage ratings (250 V AC and 24 V DC) and 16 output terminals to handle different power supply arrangements. It is ideal for both resistive and inductive loads thanks to its maximum switching current rating of 2 amps, which enables it to handle a variety of output loads. The module has a shared common type that allows several outputs to use a single connection, simplifying wiring. It allows smooth integration into automation systems by connecting between the power supply unit and the CPU unit, which is compatible with Omron CQM1H-CPU51/61 CPU units. Installation and integration are made simple by the lightweight construction and small size. It provides dependable and timely output control with a quick reaction time of 12 ms. The CQM1-OC222 supports one output word and can use up to 850 milliamps at five volts of direct current. With remarkable service life ratings of 300,000 electrical operations with a resistive load, 100,000 electrical operations with an inductive load, and 20,000,000 mechanical operations, the G6D-1A relay on the module is a powerhouse. It also supports a maximum ON delay time of 10 ms and a maximum OFF delay time of 5 ms. The CQM1-OC222 module's goal is to provide flawless flexibility and professional-caliber performance in industrial automation configurations by facilitating smooth expansion, compatibility with a range of input types, and steady data transmission over the ControllerLink network. It is a flexible option for automation applications because of its rackless modular architecture and support for several base CPUs, ensuring dependable power supply, data storage, and communication capabilities.
