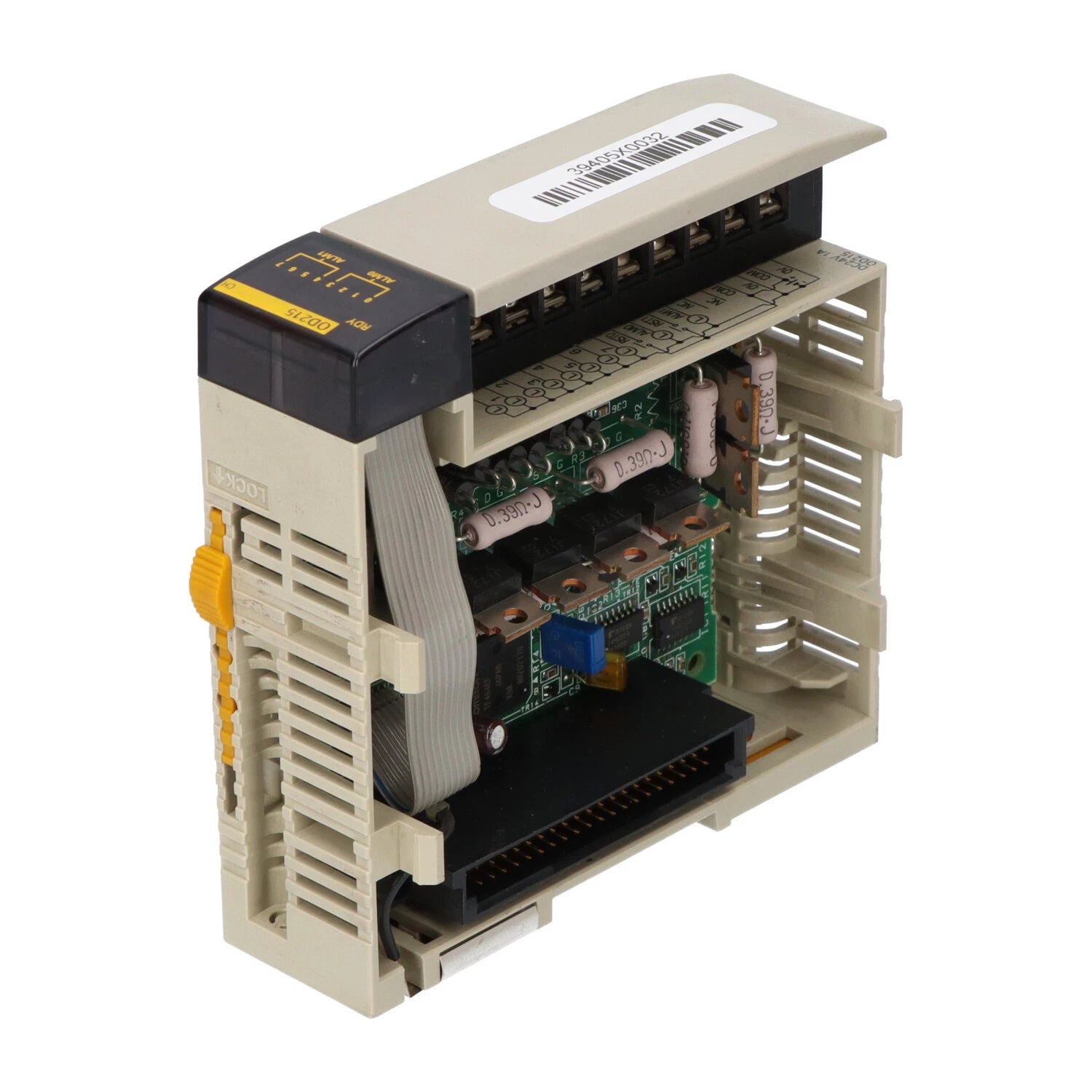

CQM1-OD215 | Omron 8-Point 24VDC PNP Output Module 1A
- Regular price
- $327.00
- Sale price
- $327.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CQM1-OD215
Description
The Omron CQM1-OD215 is a solid-state output module designed for use with CQM1H series programmable controllers. It provides eight 24 VDC PNP transistor outputs rated at 1 A per point. The module is intended for high-speed DC load switching in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | CQM1-OD215 |
| Subcategory | PLC Module/Rack |
| Series | CQM1 |
| Module Type | Output Module |
| Number of Outputs | 8 |
| Output Type | Transistor (PNP) |
| Rated Output Voltage | 24 VDC |
| Rated Output Current | 1 A per point |
| Max ON Delay | 0.2 ms |
| Max OFF Delay | 0.8 ms |
| Maximum Leakage Current | 0.1 mA |
| Backplane Current Consumption | 110 mA at 5 VDC |
| Mounting Type | DIN Rail |
| Termination Style | Screw Terminal |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 75°C |
| Relative Humidity | 10% to 90% (Non-condensing) |
| Country of Manufacture | Japan |
| Weight | 0.53 lbs |
Information About CQM1-OD215
The CQM1-OD215 belongs to the Omron CQM1 series of PLC expansion modules. It features eight solid-state PNP transistor outputs for controlling DC loads in control panels and machine automation applications. The unit mounts on a DIN rail and connects via screw terminals for secure field wiring. Designed for industrial environments, it operates within a temperature range of 0°C to 55°C and supports reliable switching with short ON and OFF delay times.
Key Features:
-
8 Solid-State Outputs: Provides eight independent 24 VDC transistor outputs.
-
PNP Transistor Type: Suitable for sourcing DC output control applications.
-
1 A Output Rating: Supports DC loads up to 1 A per output point.
-
Fast Switching Performance: 0.2 ms ON delay and 0.8 ms OFF delay.
-
DIN Rail Mounting: Designed for standard control panel installation.
-
Screw Terminal Connection: Secure and stable wiring interface.
-
Low Leakage Current: Maximum 0.1 mA leakage current.
-
CQM1 Series Compatibility: Designed for use with Omron CQM1H PLC systems.
The CQM1-OD215 delivers the reliability and precision required for high-speed DC output control in industrial PLC systems.
