CQM1-PA206 | Omron Power Supply Module
- Regular price
- $247.00
- Sale price
- $247.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

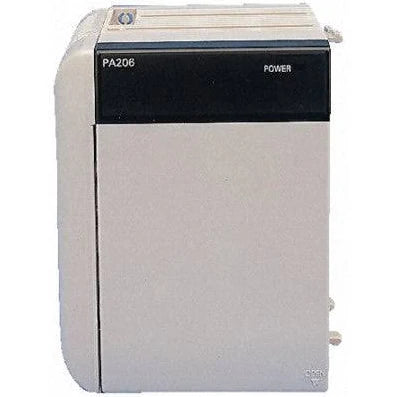

Product Description P/N: CQM1-PA206
Description
The Omron CQM1-PA206 AC Power Supply Module is a tough and adaptable industrial power supply module. It is compatible with a variety of power sources because of its broad input voltage range of 100–240 VAC, 50–60 Hz. It has a total output capacity of 30 W with dual outputs of 6 A for 5 VDC and 0.5 A for 24 VDC. The module is suited for dependable and safe power distribution in difficult situations because of its outstanding insulation resistance, dielectric strength, and noise immunity.
Technical Specifications
| Brand | OMRON |
| Supply Voltage | 100 to 240 VAC, 50/60 Hz |
| Part Number | CQM1-PA206 |
| Operating Voltage Range | 85 to 264 VAC |
| Operating Frequency Range | 47 to 63 Hz |
| Power Consumption | 120 VA max. |
| Inrush Current | 30 A max. |
| Output Capacity | 5 VDC: 6 A, 24 VDC: 0.5 A |
| Total Output Capacity | 30 W |
| Insulation Resistance | 20 MW min. at 500 VDC |
| Dielectric Strength | 2,300 VAC (AC external to GR), 1,000 VAC (DC external to GR) |
| Noise Immunity | Conforms to IEC61000-4-4 |
| Vibration Resistance | 10 to 57 Hz, 0.075 mm, 57 to 150 Hz, 9.8 m/s² |
| Shock Resistance | 147 m/s² (X, Y, Z directions) |
| Ambient Temperature | Operating: 0°C to 55°C, Storage: -20°C to 75°C |
Information About CQM1-PA206
The Omron CQM1-PA206 AC Power Supply Module is a versatile and durable power supply unit that was developed to handle a wide range of industrial applications. Its main function is to provide alternating current. It ensures compatibility with a wide variety of power sources by having an input voltage range of 100 to 240 VAC, an output voltage range of 85 to 264 VAC, and a frequency range of 47 to 63 Hz. The supply voltage range can be found here. The module has robust power capabilities, with a maximum power consumption of 120 VA and a maximum inrush current of 30 A. It is capable of dual outputs, delivering 6 A at 5 VDC and 0.5 A at 24 VDC, for a total output of 30 W when both are added together. In order for the CQM1-PA206 device to keep its excellent insulation resistance, it needs to be able to withstand a minimum of 20 MW of power at 500 VDC between the AC external terminals and the GR terminals. In addition, its dielectric strength is tested at a voltage of 2,300 volts of alternating current (VAC) for one minute between the AC external terminals and the GR terminals in order to guarantee safety and prevent leakage currents. The noise immunity of the CQM1-PA206 module complies with IEC 61000-4-4, providing a barrier against disturbances in power lines. This is an important safety feature. Because of its exceptional resistance to vibration as well as its shock resistance, it is suitable for use in demanding industrial settings. It is built to withstand harsh conditions by having a working temperature range of 0 to 55 degrees Celsius and an ambient humidity range of 10 to 90 percent relative humidity (non-condensing).
