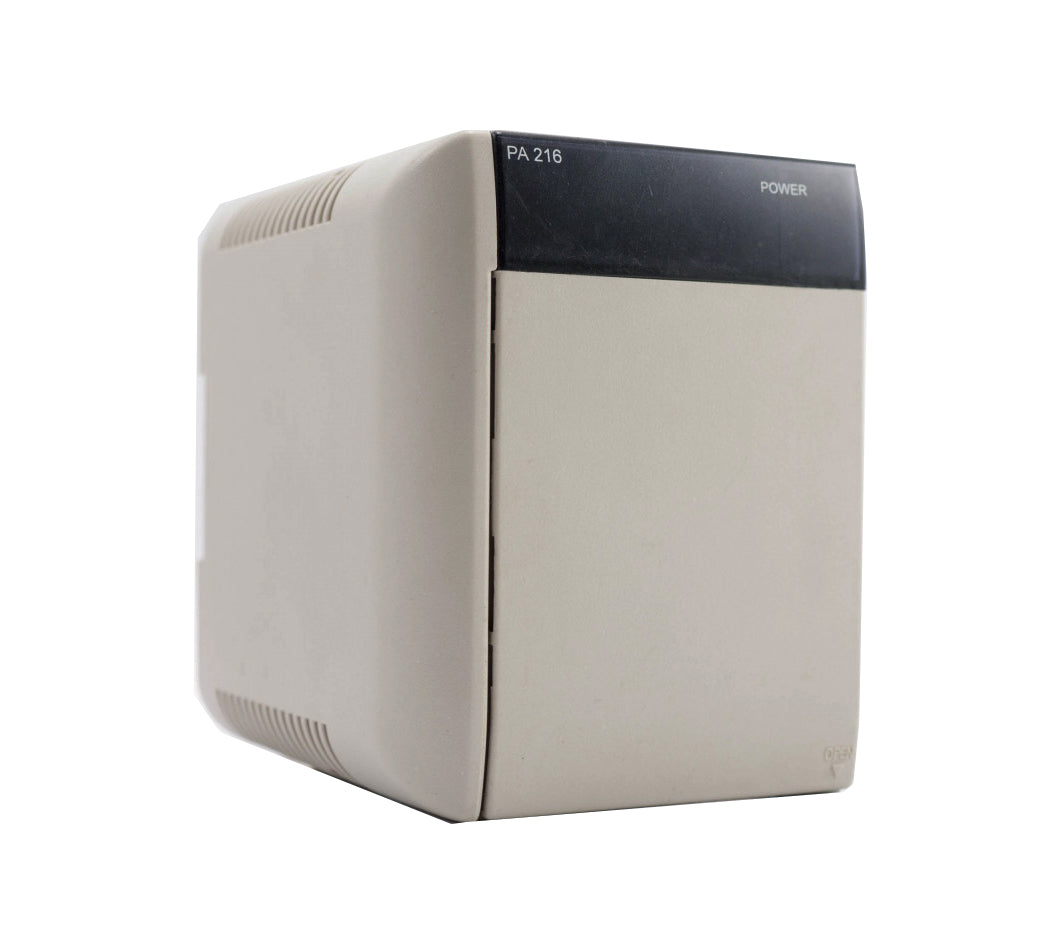

CQM1-PA216 | Omron CQM1 PLC Power Supply Unit 100–240 VAC 5 VDC 6 A And 24 VDC 0.5 A 30 W
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CQM1-PA216
Description
The Omron CQM1-PA216 is a power supply unit designed to provide regulated DC power for SYSMAC CQM1 programmable controller systems. It converts wide-range AC input voltage into stable 5 VDC and 24 VDC outputs required for PLC operation and connected modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Power Supplies |
| Part Number | CQM1-PA216 |
| Subcategory | PLC Power Supply Units |
| Product Type | Power Supply Module |
| Input Voltage | 100–240 VAC (Selectable 100 / 230 VAC) |
| Input Frequency | 50/60 Hz |
| Operating Voltage Range | 85–132 VAC / 170–264 VAC |
| Operating Frequency Range | 47–63 Hz |
| Output Capacity | 5 VDC 6.0 A, 24 VDC 0.5 A |
| Total Output Power | 30 W Max |
| Power Consumption | 120 VA Max |
| Inrush Current | 30 A Max |
| Insulation Resistance | 20 MΩ Min at 500 VDC |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 75°C |
| Humidity | 10% to 90% Non-Condensing |
| Mounting Type | Panel Mount |
| Weight | 6 kg |
Information About CQM1-PA216
The CQM1-PA216 is a dedicated power supply unit developed for Omron SYSMAC CQM1 PLC platforms. It delivers both 5 VDC system power and 24 VDC auxiliary output to support CPU modules, I/O units, and peripheral devices. The unit is designed for stable operation under varying electrical conditions, with wide input voltage tolerance and built-in electrical noise immunity. Its panel-mounted construction supports long-term use in industrial control cabinets where reliable power distribution is required.
Key Features
- Dual DC Output Capability: Supplies both 5 VDC for PLC system operation and 24 VDC for auxiliary control circuits within a single unit.
- Wide AC Input Range: Supports 100–240 VAC input with selectable voltage settings for compatibility with global power standards.
- 30 W Total Output Capacity: Ensures balanced power delivery across system and auxiliary outputs within defined limits.
- High Electrical Noise Immunity: Designed to withstand industrial electrical noise and transient disturbances.
- Robust Industrial Protection: Features insulation resistance, grounding support, and shock resistance suitable for control panel installation.
- SYSMAC CQM1 Compatibility: Engineered specifically for seamless integration with Omron CQM1 PLC systems.
- Panel-Mounted Design: Supports secure installation in enclosed industrial automation cabinets.
The CQM1-PA216 delivers the reliability and precision required for stable power distribution in SYSMAC CQM1 PLC-based automation systems.
