CQM1-PD026 | Omron 50W SYSMAC CQM1 DC Power Supply Module
- Regular price
- $355.00
- Sale price
- $355.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

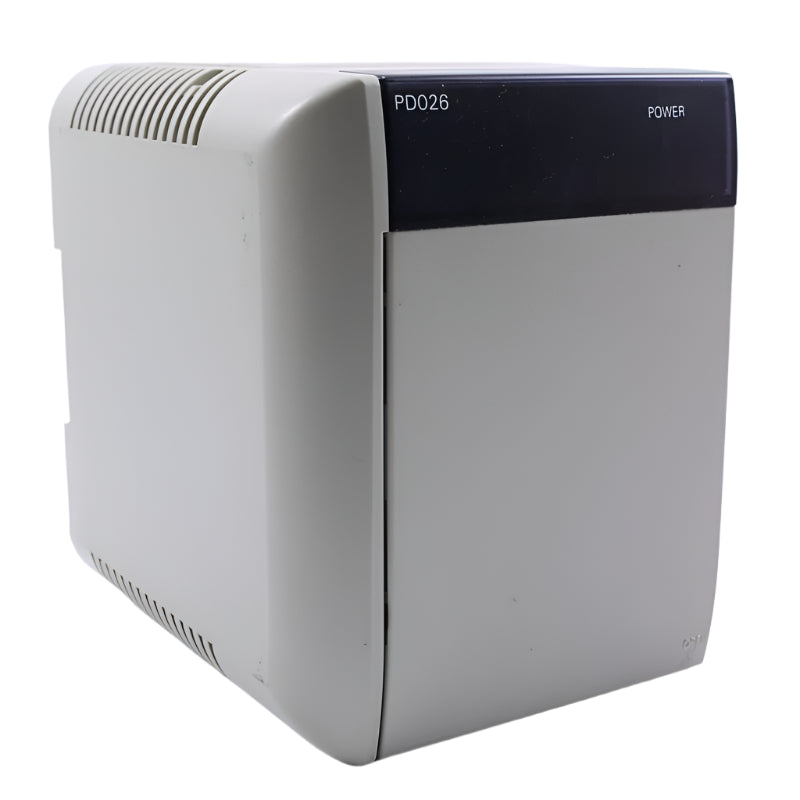

Product Description P/N: CQM1-PD026
Description
The Omron CQM1-PD026 is a 24 VDC power supply module for SYSMAC CQM1 systems, delivering up to 50 W output for stable and reliable control operation. It ensures efficient power distribution with robust electrical isolation and high inrush current tolerance for demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC Power Supplies |
| Part Number | CQM1-PD026 |
| Subcategory | DC Input Power Modules |
| Series | SYSMAC CQM1 |
| Product Type | Power Supply Unit |
| Supply Voltage | 24 VDC |
| Operating Voltage Range | 20 to 28 VDC |
| Power Consumption | 50 W max |
| Output Capacity | 5 VDC: 6 A (30 W) |
| Inrush Current | 30 A max |
| Insulation Resistance | 20 MΩ min (at 500 VDC) between AC external and GR terminals |
| Dielectric Strength | 2,300 VAC 50/60 Hz for 1 min between AC external and GR terminals |
| Leakage Current | 10 mA max |
| Noise Immunity | 1,500 Vp-p, pulse width 100 ns–1 s, rise time 1 ns |
| Vibration Resistance | 10–57 Hz: 0.075 mm amplitude; 57–150 Hz: 9.8 m/s² |
| Shock Resistance | 147 m/s² (21.8 m/s² for Contact Output Units) |
| Weight | 1.10 lbs |
Information About CQM1-PD026
The CQM1-PD026 is part of Omron’s SYSMAC CQM1 series, designed as a DC-input power supply module for modular PLC systems. Operating within a voltage range of 20–28 VDC, it delivers 6 A at 5 VDC (30 W) along with additional outputs to support multiple control components. The unit is built with strong safety measures, including 20 MΩ insulation resistance, high dielectric strength, and low leakage current, ensuring safe and consistent operation. It is engineered for resilience, with high noise immunity, vibration resistance, and shock resistance, making it suitable for continuous use in industrial automation setups.
Key Features:
-
24 VDC input operation: Accepts a wide range of 20–28 VDC supply voltages for compatibility with industrial DC power sources.
-
50 W maximum output: Provides sufficient power for PLC controllers and connected modules in the CQM1 series.
-
High current capacity: Supplies 6 A at 5 VDC for reliable operation of control circuits.
-
Strong electrical insulation: 20 MΩ minimum resistance and 2,300 VAC dielectric strength enhance safety and reliability.
-
Low leakage current: Maintains a maximum leakage of 10 mA for safe integration into sensitive systems.
-
High inrush current tolerance: Handles up to 30 A inrush without performance degradation.
-
Robust environmental resistance: Withstands vibration, shock, and industrial noise levels for stable performance.
The CQM1-PD026 delivers the reliability and precision required for powering modular PLC systems in demanding industrial environments.
