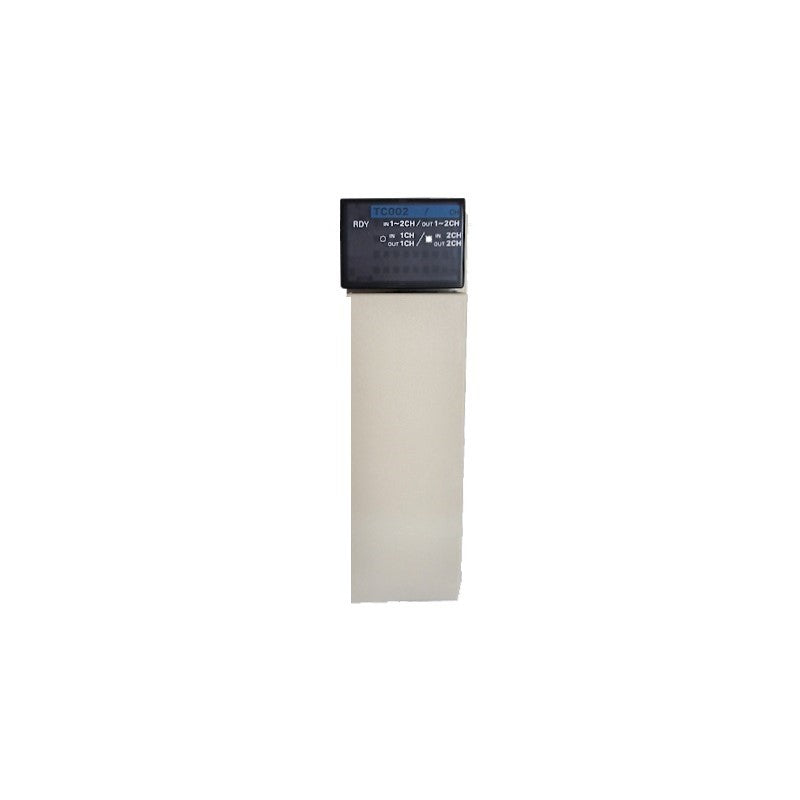

CQM1-TC002 | Omron CQM1 Dual-Loop Thermocouple Temperature Control Unit
- Regular price
- $897.00
- Sale price
- $897.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CQM1-TC002
Description
The Omron CQM1-TC002 is a temperature control unit designed for integration with Omron CQM1 Series PLC systems. This module provides precise temperature monitoring and control using thermocouple inputs and transistor outputs. It is engineered to support stable, closed-loop temperature regulation in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC Modules |
| Part Number | CQM1-TC002 |
| Subcategory | Temperature Control Units |
| Product Line | CQM1 |
| Product Type | Temperature Control Unit |
| Temperature Sensor Type | J/K Thermocouple |
| Number of Inputs | 2 Thermocouple Inputs |
| Number of Control Loops | 2 |
| Input Type | Thermocouple |
| Output Type | PNP Transistor Output |
| Function | Temperature Control |
| Current Consumption | 220 mA at 5 VDC |
| Input Words Allocated | IR 001 (1 or 2 words) |
| Output Words Allocated | IR 100 (1 or 2 words) |
| Series | SYSMAC CQM1 Series |
| Weight | 0.50 lbs (0.23 kg) |
Information About CQM1-TC002
The CQM1-TC002 is a temperature control module within Omron’s SYSMAC CQM1 Series, developed for compact PLC-based process control. It supports two independent temperature control loops using J or K type thermocouple inputs. The unit processes temperature data through allocated PLC memory words and outputs control signals via PNP transistor outputs. Designed for seamless PLC integration, it enables reliable temperature regulation in applications such as heating, cooling, and thermal process management.
Key Features:
- Dual Temperature Control Loops: Supports two independent temperature regulation channels within one module.
- Thermocouple Input Support: Accepts J and K type thermocouple sensors for flexible sensing options.
- PNP Transistor Outputs: Provides fast and reliable output control for connected devices.
- CQM1 Series Compatibility: Designed specifically for Omron CQM1 PLC architectures.
- PLC Memory Word Allocation: Uses defined IR input and output words for structured data handling.
- Integrated Temperature Control Function: Enables closed-loop control without external controllers.
- Compact Module Design: Fits efficiently within space-constrained PLC control panels.
The CQM1-TC002 delivers the reliability and precision required for PLC-based temperature control in industrial automation systems.
