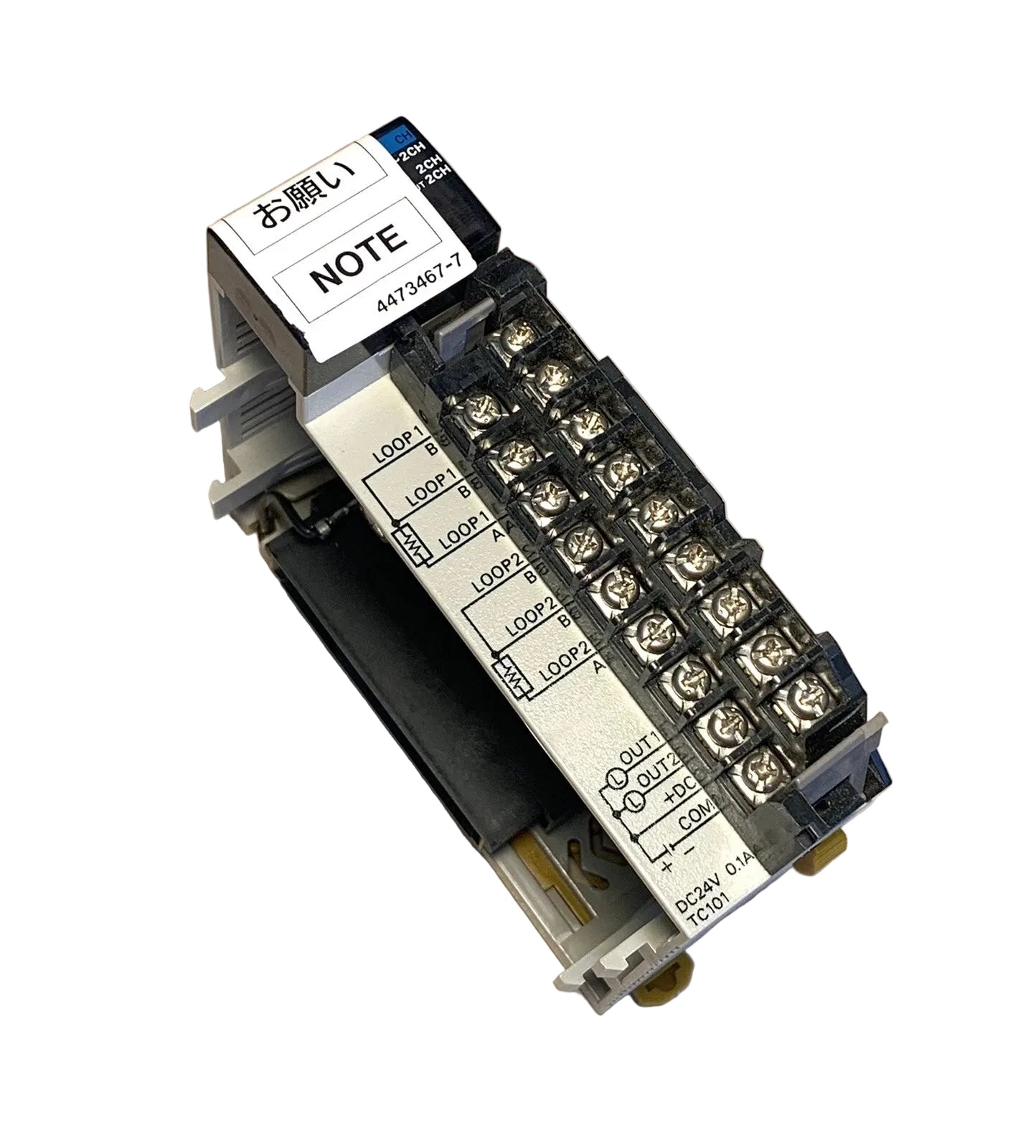

CQM1-TC101 | Omron 2-Loop PT100 Temperature Control Unit NPN
- Regular price
- $314.00
- Sale price
- $314.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CQM1-TC101
Description
The Omron CQM1-TC101 is a dedicated temperature control unit designed for SYSMAC CQM1 PLC systems, supporting two independent control loops. It accepts two PT100 platinum resistance thermometer (RTD) inputs and provides NPN transistor outputs for precise temperature regulation. This module enables accurate monitoring and control of thermal processes within industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC Modules |
| Part Number | CQM1-TC101 |
| Subcategory | Temperature Control Units |
| Series | SYSMAC CQM1 |
| Number of Control Loops | 2 Loops |
| Sensor Input Type | 2 × PT100 RTD Inputs |
| Thermometer Type | Platinum Resistance Thermometer |
| Output Type | Transistor Outputs |
| Transistor Output Configuration | NPN (Sinking) |
| Mounting Type | Rack Mount (CQM1 PLC Rack) |
| Dedicated I/O Unit | Yes |
| Application | Industrial Temperature and Process Control |
| Weight | 0.23 kg |
Information About CQM1-TC101
The CQM1-TC101 is a standard temperature control unit within the Omron SYSMAC CQM1 product line, engineered as a dedicated I/O module for PLC-based temperature management. It supports two-loop temperature control using platinum resistance thermometer (PT100) sensors for stable and accurate measurement. The module integrates NPN transistor outputs to drive external control devices such as heaters or contactors. Designed for rack mounting within CQM1 PLC systems, it is suitable for process control, packaging, and machinery requiring consistent thermal regulation.
Key Features:
- Dual Temperature Control Loops: Supports independent control of two heating or process zones.
- PT100 RTD Inputs: Compatible with platinum resistance thermometers for accurate sensing.
- NPN Transistor Outputs: Provides sinking outputs for control device interfacing.
- Dedicated I/O Unit: Designed specifically for integration with CQM1 PLC racks.
- SYSMAC CQM1 Series Compatibility: Seamless operation within Omron CQM1 automation systems.
- Integrated Temperature Control Functionality: Eliminates need for separate standalone controllers.
- Industrial Rack-Mount Design: Secure installation inside control cabinets.
The CQM1-TC101 delivers the reliability and precision required for multi-loop industrial temperature control applications.
