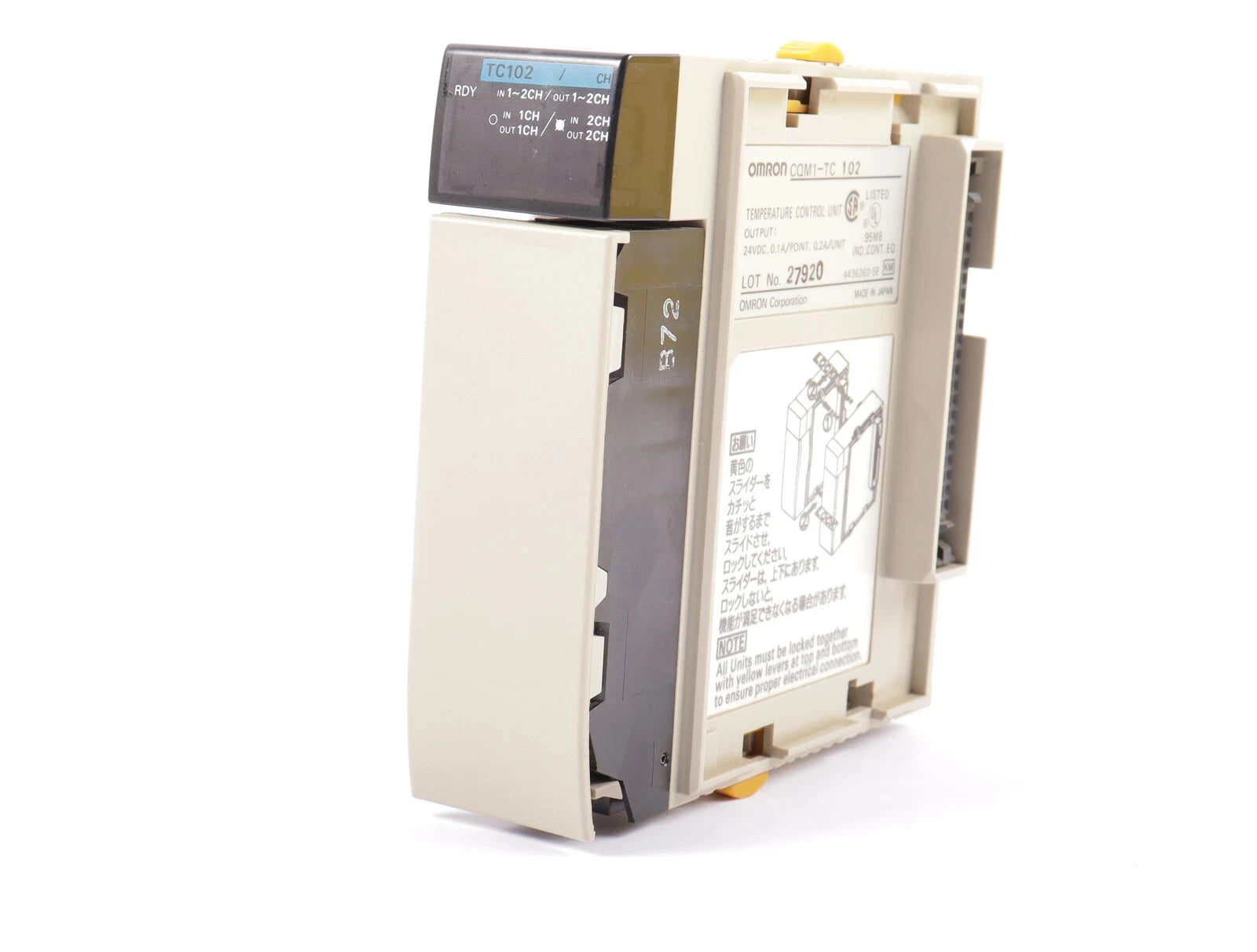

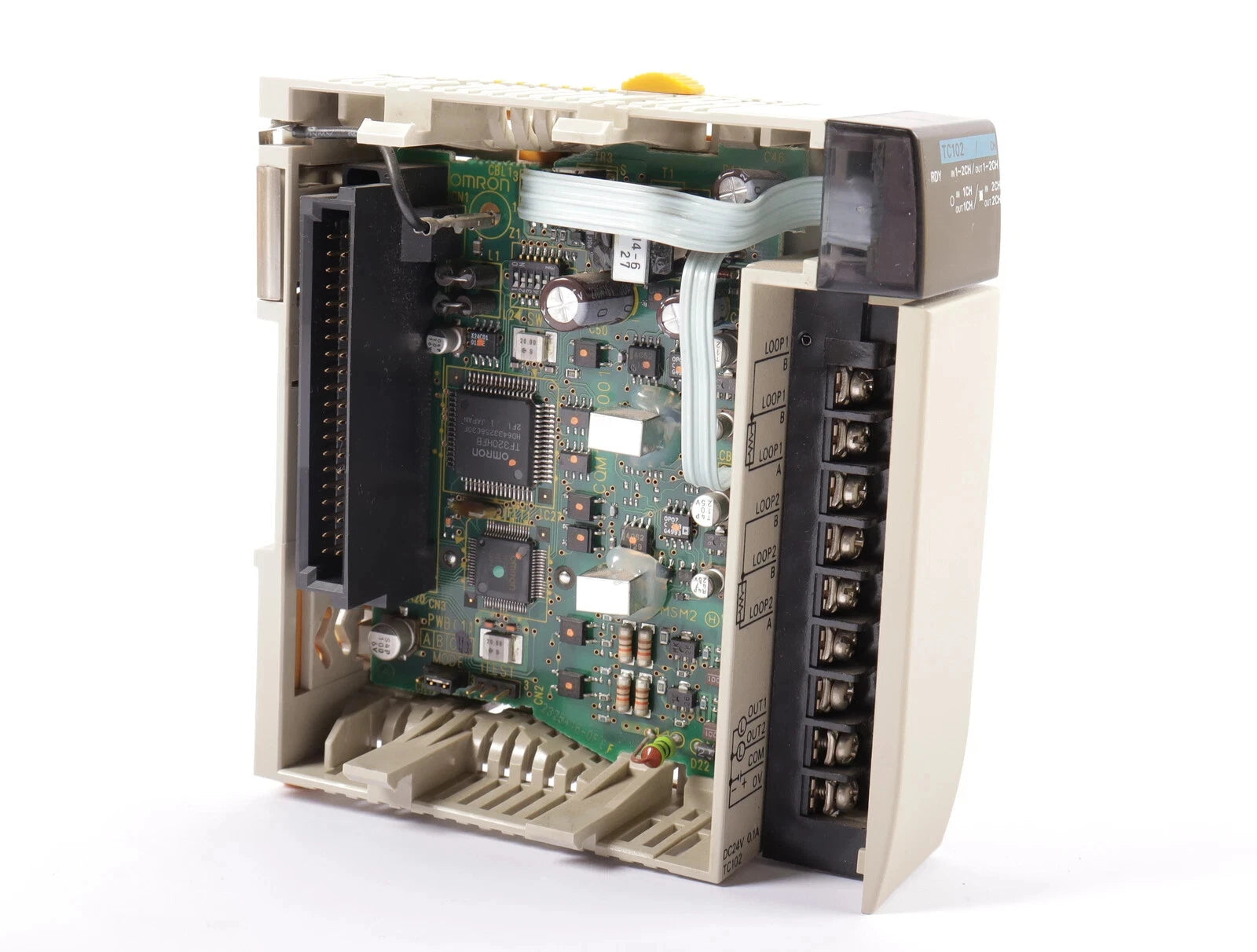

CQM1-TC102 | Omron CQM1 Dual-Loop PID Temperature Control Module
- Regular price
- $584.00
- Sale price
- $584.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CQM1-TC102
Description
The Omron CQM1-TC102 is a temperature control PLC module designed for precise thermal regulation within the CQM1 automation platform. It supports platinum resistance thermometer (Pt, JPt) and multiple thermocouple inputs, enabling flexible temperature measurement in industrial processes. Equipped with advanced PID control and dual PNP transistor outputs, this module provides accurate and stable two-loop temperature management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | CQM1-TC102 |
| Subcategory | PLC Temperature Control Modules |
| Product Line | CQM1 |
| Product Type | Temperature Control Module |
| Number of Control Loops | 2 |
| Output Type | Transistor (PNP) |
| Sensor Input Type | Platinum RTD (Pt, JPt); Thermocouple (K, J, L, T, R, S, B) |
| Input Voltage | 24 VDC |
| Input Current | 6 mA |
| Number of Inputs | 32 Points |
| I/O Capacity | 256 Points |
| Program Capacity | 7.2 K Words |
| DM Capacity | 6 K Words |
| Communication Port | RS-232C |
| Interface | ABS Interface |
| Weight | 0.38 lbs (0.17 kg) |
Information About CQM1-TC102
The CQM1-TC102 is a temperature control module developed for integration with Omron CQM1 Series programmable controllers. It features two independent control loops with transistor (PNP) outputs, allowing direct control of heating or cooling devices. The module accepts platinum resistance thermometer inputs (Pt, JPt) as well as thermocouple types K, J, L, T, R, S, and B for broad application compatibility. With advanced PID control functionality, built-in RS-232C communication, and ABS interface support, it enables precise temperature regulation and system integration in process automation environments.
Key Features:
- Dual Temperature Control Loops: Provides two independent control channels with PNP transistor outputs.
- Advanced PID Control: Ensures stable and accurate temperature regulation.
- Multiple Sensor Compatibility: Supports Pt, JPt RTDs and K, J, L, T, R, S, B thermocouples.
- 24 VDC Input Operation: Designed for standard industrial control voltage systems.
- RS-232C Port Included: Enables communication and configuration access.
- ABS Interface Support: Allows structured data exchange within the PLC system.
- High I/O Capacity: Supports up to 256 I/O points within the system configuration.
- Efficient Memory Allocation: 7.2 K program capacity and 6 K DM capacity for control applications.
The CQM1-TC102 delivers the reliability and precision required for accurate multi-loop temperature control in PLC-based process automation systems.
