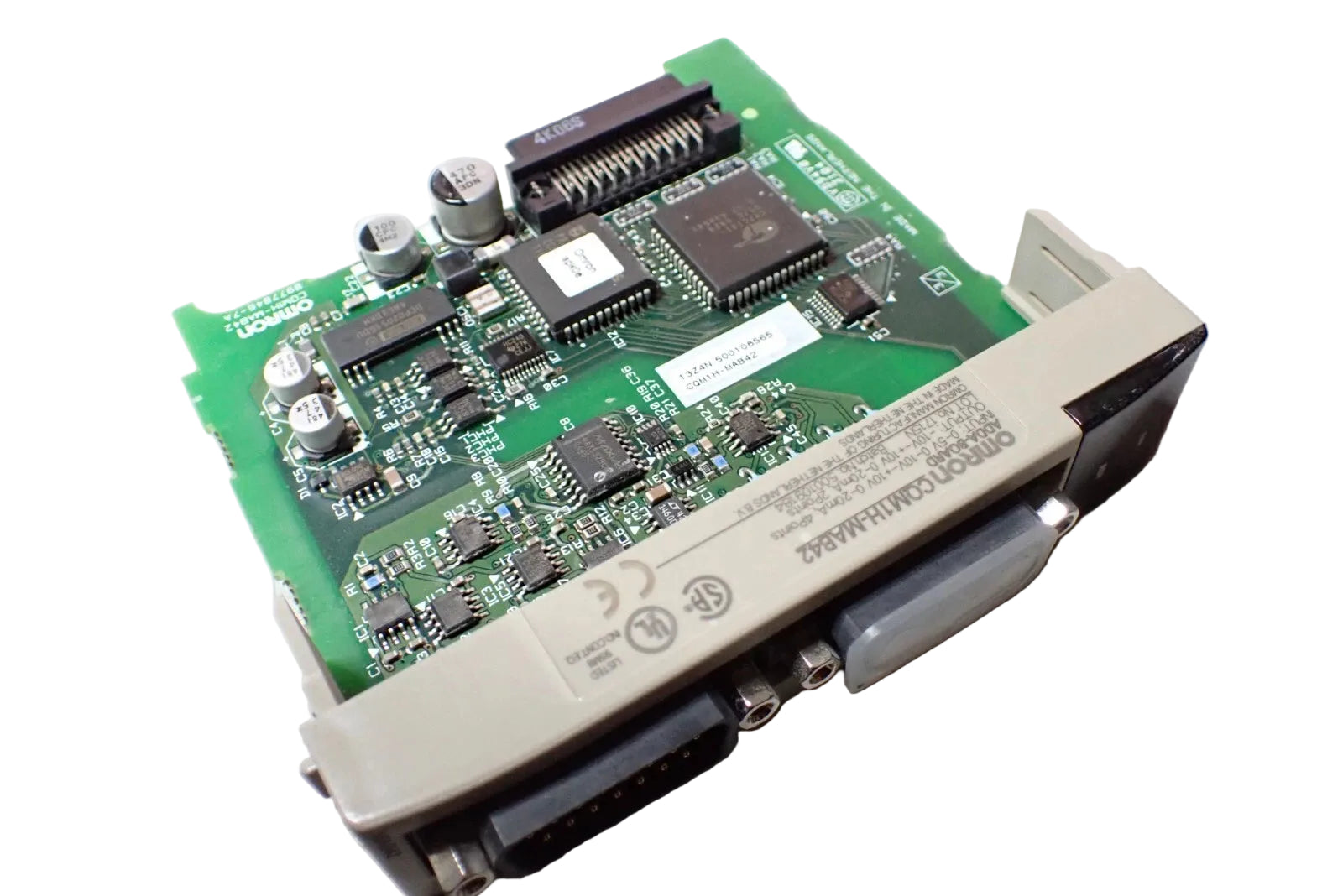

CQM1H-MAB42 | Omron CQM1H Analogue I/O Inner Board
- Regular price
- $717.00
- Sale price
- $717.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CQM1H-MAB42
Description
The Omron CQM1H-MAB42 is an analogue I/O inner board designed to extend the signal processing capabilities of CQM1H-series PLC systems. It provides multiple configurable analogue input and output channels to support precise measurement and control of voltage and current signals. This board is commonly used in industrial automation applications requiring compact, integrated analogue signal handling.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | CQM1H-MAB42 |
| Subcategory | PLC Module/Rack |
| Product Type | Analogue I/O inner board |
| PLC Series | CQM1H |
| Analogue Inputs | 4 channels |
| Analogue Outputs | 2 channels |
| Input Signal Ranges | ±10 V, 0–10 V, 0–5 V, 0–20 mA |
| Output Signal Ranges | ±10 V, 0–20 mA |
| Compatible CPUs | CQM1H-CPU51, CQM1H-CPU61 |
| Installation Position | Right inner slot only |
| Power Consumption | 400 mA at 5 VDC |
| Dimensions (W×L×H) | 25 × 107 × 110 mm |
| Lifecycle Status | Obsolete |
| Reference Code | (135732) |
| Weight | 0.19 lbs |
Information About CQM1H-MAB42
The CQM1H-MAB42 is part of Omron’s CQM1H series expansion architecture, engineered as an internal analogue I/O board for advanced PLC configurations. It is built to install in the right-side inner slot of compatible CQM1H CPUs, providing direct integration without external modules. The board supports multiple analogue signal ranges, enabling flexible interfacing with sensors, transmitters, and actuators. Although discontinued by the manufacturer, it remains important for maintaining and servicing legacy CQM1H PLC systems.
Key Features:
- Analogue I/O Inner Board: Expands PLC capability with integrated analogue signal processing.
- Four Analogue Inputs: Supports voltage and current input ranges for flexible sensor interfacing.
- Two Analogue Outputs: Provides configurable analogue output signals for precise control.
- Multi-Range Signal Support: Handles ±10 V, 0–10 V, 0–5 V, and 0–20 mA inputs.
- CQM1H CPU Compatibility: Designed for use with CQM1H-CPU51 and CQM1H-CPU61 controllers.
- Right-Slot Installation: Installs internally in the designated CPU slot for compact integration.
- Legacy System Support: Suitable for maintaining obsolete Omron PLC configurations.
The CQM1H-MAB42 delivers the reliability and precision required for integrated analogue I/O processing in legacy Omron PLC control systems.
