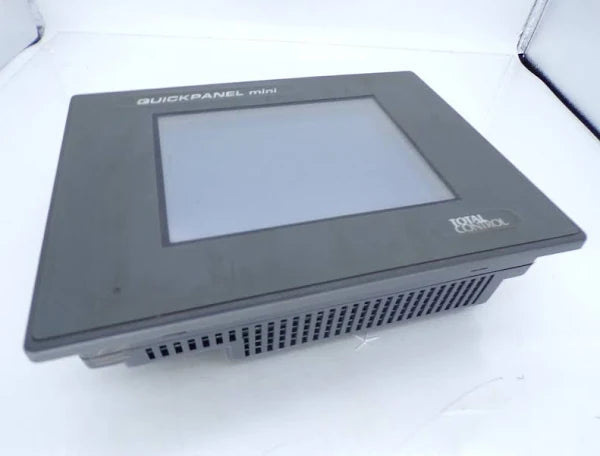

CQPM-3D200-B2P | GE FANUC blue/white 6" operator interface, QuickPanel series
CQPM-3D200-B2P | GE FANUC blue/white 6" operator interface, QuickPanel series
CQPM-3D200-B2P | GE FANUC blue/white 6" operator interface, QuickPanel series
    CQPM-3D200-B2P | GE FANUC blue/white 6" operator interface, QuickPanel series
CQPM-3D200-B2P | GE FANUC blue/white 6" operator interface, QuickPanel series

CQPM-3D200-B2P | GE FANUC blue/white 6" operator interface, QuickPanel series

Part #: CQPM-3D200-B2P Manufactured by: GE FANUC
Regular price
$4,285.00
Sale price
$4,285.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The GE FANUC CQPM-3D200-B2P is a 6" operator interface in the QuickPanel series, featuring a blue/white display for intuit...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: CQPM-3D200-B2P
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for GE FANUC
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: CQPM-3D200-B2P

Description / Specifications

Description

The GE FANUC CQPM-3D200-B2P is a 6" operator interface from the QuickPanel series. With a blue/white display, it provides intuitive control in industrial settings. This interface ensures efficient and user-friendly operation for monitoring and managing processes with precision and reliability.



Technical Specifications



Brand GE FANUC
Series QuickPanel Mini
Part Number CQPM-3D200-B2P
LCD Type Monochrome Display
Screen Size 5.7"
Input Voltage 24 VDC
Software Version QuickDesigner Version 3.7
NEMA Rating Type 4X/12 IP65





Information About CQPM-3D200-B2P

Performance Features

The CQPM-3D200-B2P is an mini operator interface from the QuickPanel series by GE Fanuc. It has a 5.7-inch blue/white monochrome liquid crystal display with a 320 by 240 pixels QVGA resolution. This display is backlit by a CCFL light with an estimated lifespan 25,000 hours at normal conditions. The CQPM-3D200-B2P has 1 MB of flash EPROM application memory which can store up to 320 screens (assuming 3.2 KB of data per screen). Backup memory is stored using the lithium backup battery; this model has 96 KB of SRAM for this purpose.

Compatibility

The CQPM-3D200-B2P has many features to help it communicate with other devices as well as the operators using it. It includes a large array of language fonts, including: ASCII (with European fonts), Japanese, Korean, traditional Chinese, and simplified Chinese. These fonts can be adjusted in size by 1, 2, 4, or 8 times the original size. The CQPM-3D200-B2P has 1 serial port with the capacity to interface with RS-232C ports via additional cables.

Additional Specifications

The CQPM-3D200-B2P has an input voltage of DC24V, with a rating of ±3.6V. The maximum allowable voltage drop for this model is for 2 milliseconds or less. The power draw of this model is under 20 watts. The housing of this unit is rated to protect from ingress of solid particles and liquids at an equivalent level to an IP65f rating. The Nema equivalent for this product would be Nema #250 Type 4/4x/12. This makes the CQPM-3D200-B2P well-equipped for harsh industrial environments, such as those where machinery may be frequently exposed to oils or other debris.



Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The GE FANUC CQPM-3D200-B2P is a 6" operator interface from the QuickPanel series. With a blue/white display, it provides intuitive control in industrial settings. This interface ensures efficient and user-friendly operation for monitoring and managing processes with precision and reliability.



Technical Specifications



Brand GE FANUC
Series QuickPanel Mini
Part Number CQPM-3D200-B2P
LCD Type Monochrome Display
Screen Size 5.7"
Input Voltage 24 VDC
Software Version QuickDesigner Version 3.7
NEMA Rating Type 4X/12 IP65





Information About CQPM-3D200-B2P

Performance Features

The CQPM-3D200-B2P is an mini operator interface from the QuickPanel series by GE Fanuc. It has a 5.7-inch blue/white monochrome liquid crystal display with a 320 by 240 pixels QVGA resolution. This display is backlit by a CCFL light with an estimated lifespan 25,000 hours at normal conditions. The CQPM-3D200-B2P has 1 MB of flash EPROM application memory which can store up to 320 screens (assuming 3.2 KB of data per screen). Backup memory is stored using the lithium backup battery; this model has 96 KB of SRAM for this purpose.

Compatibility

The CQPM-3D200-B2P has many features to help it communicate with other devices as well as the operators using it. It includes a large array of language fonts, including: ASCII (with European fonts), Japanese, Korean, traditional Chinese, and simplified Chinese. These fonts can be adjusted in size by 1, 2, 4, or 8 times the original size. The CQPM-3D200-B2P has 1 serial port with the capacity to interface with RS-232C ports via additional cables.

Additional Specifications

The CQPM-3D200-B2P has an input voltage of DC24V, with a rating of ±3.6V. The maximum allowable voltage drop for this model is for 2 milliseconds or less. The power draw of this model is under 20 watts. The housing of this unit is rated to protect from ingress of solid particles and liquids at an equivalent level to an IP65f rating. The Nema equivalent for this product would be Nema #250 Type 4/4x/12. This makes the CQPM-3D200-B2P well-equipped for harsh industrial environments, such as those where machinery may be frequently exposed to oils or other debris.



Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
