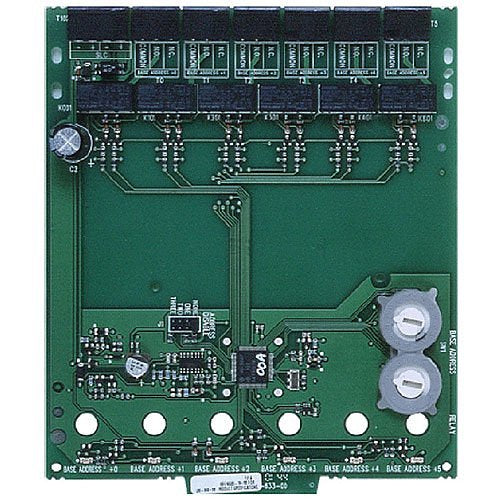

CRF-300-6 | Fire-Lite 6-Relay Control Module with Addressable Form-C Outputs
- Regular price
- $685.00
- Sale price
- $685.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CRF-300-6
Description
The Fire-Lite CRF-300-6 is a six-relay control module designed for use in intelligent fire alarm systems. Each relay provides a Form-C dry contact that can be configured for normally open or normally closed operation. This module allows fire alarm control panels to control multiple independent circuits, making it suitable for diverse system integration needs.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite Alarms by Honeywell |
| Category | Fire Safety |
| Part Number | CRF-300-6 |
| Subcategory | Relay Module |
| Operating Voltage | 15–32 VDC |
| Standby Current | 1.45 mA |
| Alarm Current | 32 mA (all relays switched, LEDs on) |
| Relay Current | 30 mA/relay pulse (15.6 ms duration) |
| Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 10–93% non-condensing |
| Dimensions | 6.8" H × 5.8" W × 1.0" D |
| Wire Gauge | 12–18 AWG |
| Indicators | Panel-controlled green LEDs for each relay |
| Addressing | Rotary code switches (01–154); auto assignment for five additional relays |
| Mounting Options | BB-X2F cabinet (1–2 modules) or CHS-6 chassis in BB-2F cabinet (up to 6 modules) |
| Accessories | CH-6 Chassis, BB-6 Cabinet, BB-2 Cabinet |
| Weight | 1.1 lbs |
Information About CRF-300-6
The CRF-300-6 is part of Fire-Lite’s intelligent module series, engineered to provide flexible switching solutions within addressable fire alarm systems. Each module supports six addressable Form-C relay contacts, with the first address set manually and the rest automatically assigned. The design incorporates removable plug-in terminal blocks for simplified installation and service, while rotary switches streamline configuration. LED indicators for each point provide real-time status feedback, ensuring reliability in monitoring and control applications.
Key Features
- Six Form-C Relays: Provides six independent relay outputs, each capable of normally open or normally closed wiring.
- Addressable Operation: First module address set manually; remaining relays assigned automatically to the next five addresses.
- LED Status Indicators: Each relay features a panel-controlled green LED for clear operational feedback.
- Address Disabling: Up to three unused module addresses can be disabled for efficient system resource use.
- Removable Terminal Blocks: Supports 12–18 AWG wiring with plug-in connectors for easier installation.
- Flexible Mounting: Compatible with BB-X2F cabinet or CHS-6 chassis in BB-2F cabinet.
- Compact Design: Measures only 6.8" × 5.8" × 1.0", fitting into tight installation spaces.
- Low Power Draw: Standby current of 1.45 mA ensures efficient system operation.
The CRF-300-6 delivers the reliability and precision required for intelligent fire alarm system relay control.
