Crowcon IRMAX-AA-AC-011-AC-00 Fixed Infrared Hydrocarbon Gas Detector
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IRMAX-AA-AC-011-AC-00
Description

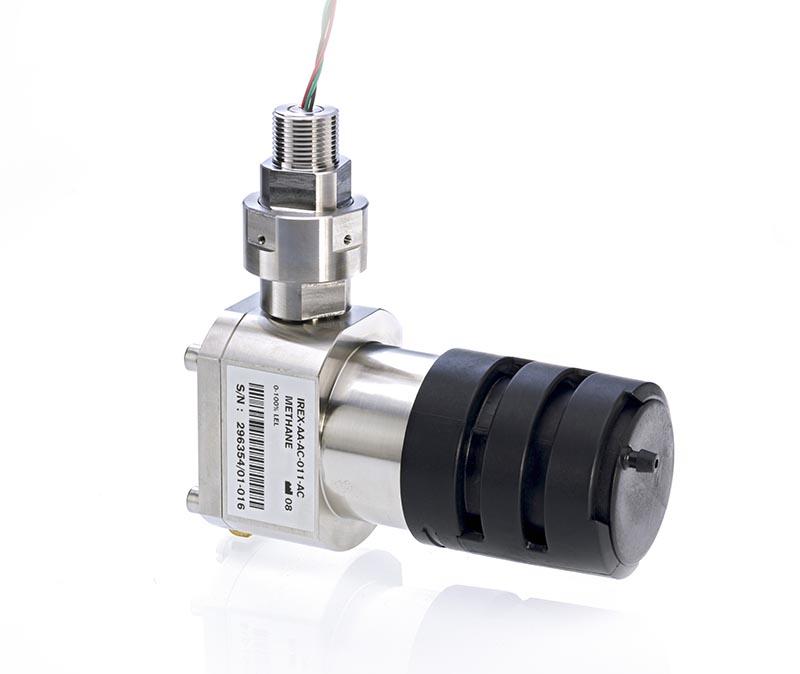

The Crowcon IRMAX-AA-AC-011-AC-00 is an infrared hydrocarbon gas detector designed for fixed installation in industrial environments where continuous gas monitoring is required. The IRmax platform uses dual-beam infrared sensing, a 4–20 mA output, and a rugged stainless-steel enclosure to support detection of flammable hydrocarbon gases in hazardous areas.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Crowcon |
| Category | Gas Detection |
| Part Number | IRMAX-AA-AC-011-AC-00 |
| Subcategory | Infrared Gas Detectors |
| Product Series | IRmax |
| Product Type | Fixed Infrared Hydrocarbon Gas Detector |
| Detection Technology | Dual-beam infrared |
| Target Gas | Hydrocarbon gases; exact calibration gas must be verified |
| Measurement Range | 0–100% LEL, depending on calibration |
| Operating Voltage | 12–30 V DC |
| Power Consumption | Less than 1 W |
| Electrical Output | 4–20 mA current sink or source |
| Optional Communications | RS-485 Modbus, HART 7 |
| Ingress Protection | IP66 |
| Enclosure Material | 316 stainless steel |
| Operating Temperature | −40°C to +75°C, subject to configuration |
| Response Time | T90 less than 4 seconds |
| Functional Safety | SIL 2 system suitability, subject to applicable certification |
| Dimensions (H × W × D) | 158 × 75 × 57 mm (detector body; configuration may vary) |
| Weight | 3.5 lb |
Information About IRMAX-AA-AC-011-AC-00
The IRMAX-AA-AC-011-AC-00 belongs to Crowcon’s IRmax series of fixed-point infrared gas detectors. Its optical sensing system measures hydrocarbon gas concentrations without relying on catalytic combustion, making it suitable for applications where conventional catalytic sensors may be less appropriate. The detector supports 12–30 V DC power and a standard 4–20 mA current-loop output for connection to compatible gas monitoring and control systems. Its 316 stainless-steel enclosure and IP66 protection rating support use in demanding industrial and offshore environments.
Key Features:
-
etection Technology: Dual-beam infrared sensing for hydrocarbon gas detection.
-
Measurement Range: 0–100% LEL, depending on the target gas and calibration.
-
Power Supply: Operates on 12–30 V DC.
-
Electrical Output: 4–20 mA current sink or source for integration with compatible control systems.
-
Low Power Consumption: Uses less than 1 W during normal operation.
-
Enclosure Protection: IP66-rated construction with a 316 stainless-steel enclosure.
-
Hazardous Area Certification: IRmax configurations are certified for designated hazardous areas, subject to the exact model and certification label.
-
Operating Temperature: Supports ambient temperatures from −40°C to +75°C, subject to configuration and certification limits.
The IRMAX-AA-AC-011-AC-00 delivers the monitoring capabilities required for fixed hydrocarbon gas detection in industrial and hazardous-area installations.
