CS-3-P3632 | SICK Three-Channel Color Sensor with PNP Output and 60 mm Range
- Regular price
- $3,299.00
- Sale price
- $3,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CS-3-P3632
Description

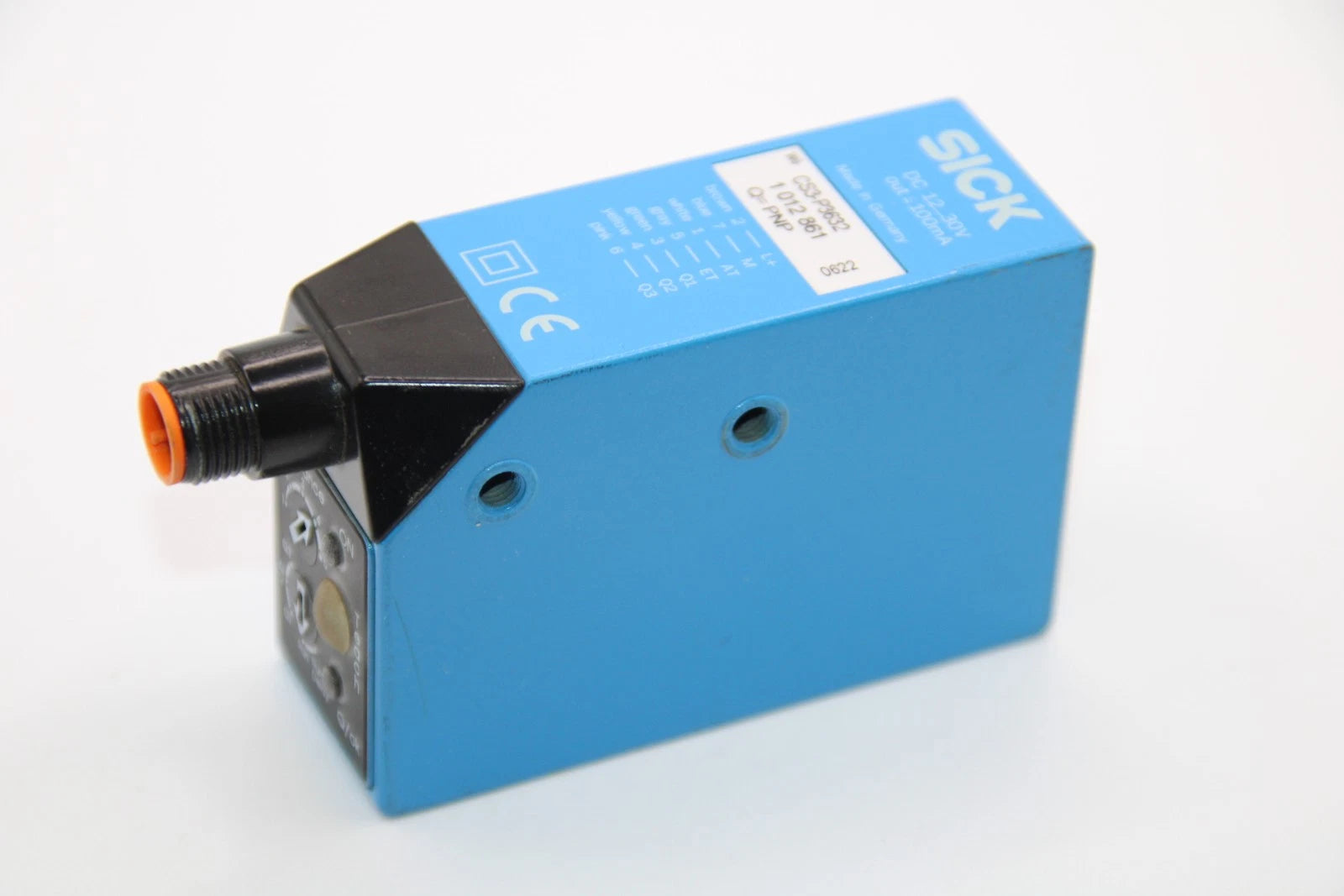

The SICK CS-3-P3632 is a three-channel color sensor designed for reliable color detection and differentiation in industrial automation environments. With part number CS-3-P3632, this sensor uses a PNP output and supports a 60 mm sensing distance for accurate non-contact color recognition. It is well suited for quality control, sorting, and verification tasks on production lines.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Part Number | CS-3-P3632 |
| Subcategory | Photoelectric |
| Sensing Distance | 60 mm |
| Detection Method | Color sensing (RGB) |
| Number of Color Channels | 3 |
| Output Type | PNP |
| Supply Voltage | 12–30 V DC |
| Switching Frequency | Approx. 300 Hz |
| Response Time | < 2.5 ms |
| Connection Type | 8-pin M12 connector |
| Teach-In Mode | Static teach-in |
| Housing Material | Die-cast zinc |
| Enclosure Rating | IP67 |
| Weight | 0.75 lbs |
Information About CS-3-P3632
The CS-3-P3632 is part of SICK’s CS series of compact color sensors developed for precise color evaluation in automated processes. This model features a robust industrial housing and integrates three independent color channels to distinguish subtle color variations on moving objects. It connects via an 8-pin M12 connector, allowing straightforward integration with standard PLC and control systems. Although discontinued by the manufacturer, it remains compatible with legacy installations where consistent color detection performance is required.
Key Features:
- Three-Channel Color Detection: Enables differentiation of multiple colors within a single sensing operation.
- PNP Output Signal: Provides direct compatibility with common industrial control inputs.
- 60 mm Sensing Distance: Supports stable color detection without close-proximity mounting.
- Compact Sensor Design: Allows installation in space-constrained machinery and production lines.
- 8-Pin M12 Connector: Ensures secure electrical connection and simplified wiring.
- Industrial-Grade Housing: Built to withstand typical factory floor conditions.
- Discontinued Model: Suitable for replacement or maintenance of existing systems using CS-series sensors.
The CS-3-P3632 delivers the reliability and precision required for accurate color detection in industrial automation and quality control applications.
