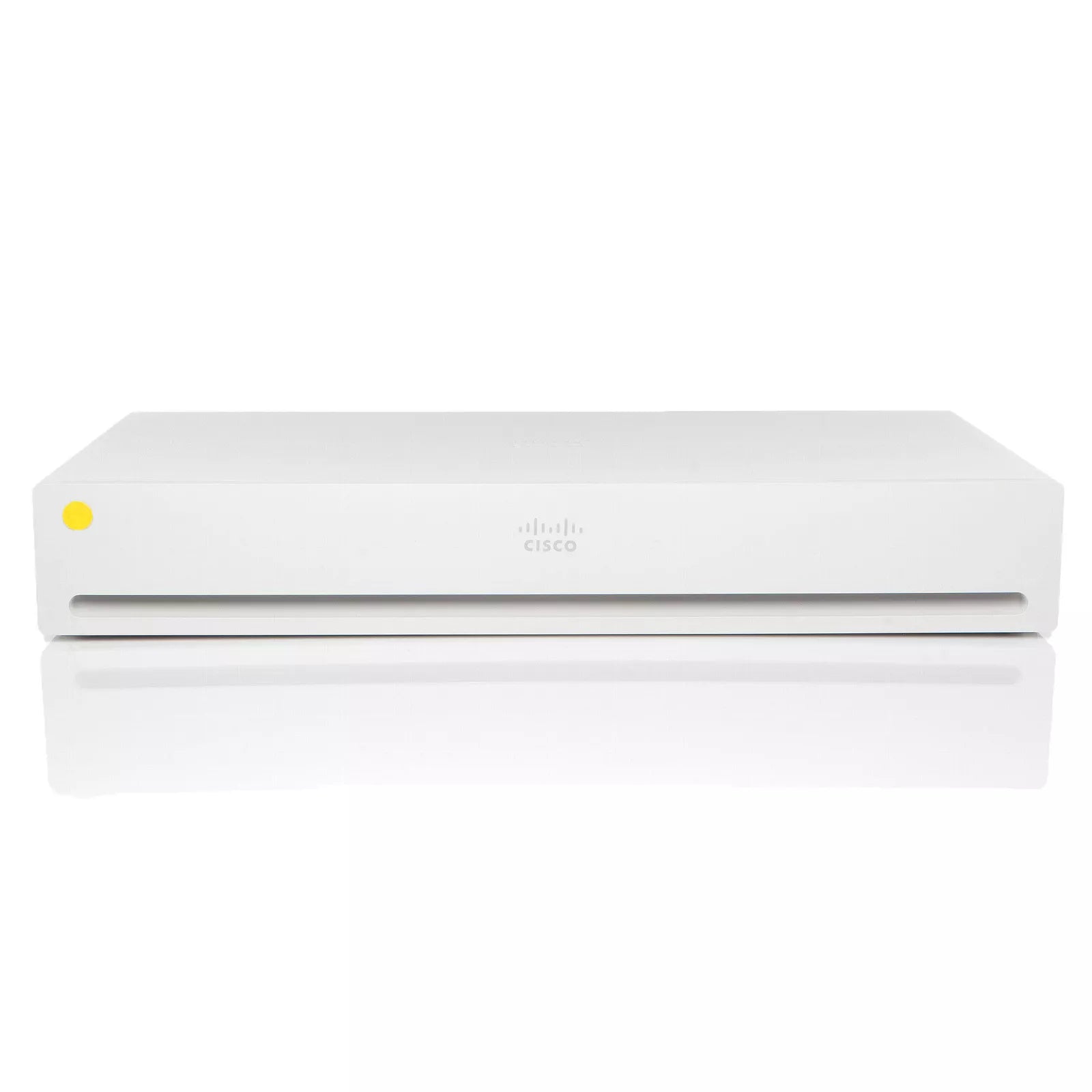

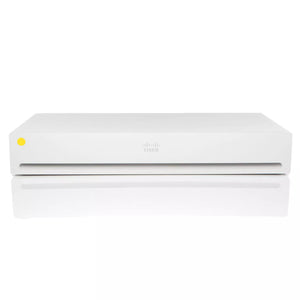

CS-CODEC-PRO-K9 | Cisco Webex Room Kit Pro
- Regular price
- $4,319.00
- Sale price
- $4,319.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CS-CODEC-PRO-K9
Description
The Cisco CS-CODEC-PRO-K9 is the core component of the Cisco Webex Room Kit Pro, designed for advanced video conferencing in large meeting rooms and auditoriums. It delivers powerful video, audio, and integration capabilities, supporting multiple displays, cameras, and content sources for professional, scalable collaboration experiences.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Collaboration Equipment
|
| Part Number | CS-CODEC-PRO-K9 |
| Subcategory |
Room Kits
|
| Inputs and Outputs | 8 HDMI inputs, 3 HDMI outputs |
| Audio Inputs and Outputs | 4 Microphone inputs, Speaker tracking support |
| Digital Video Support |
4K UHD at 60 fps |
| Networking | Dual LAN: 2x 1Gbps Ethernet port |
| USB Ports | 6 USB 2.0 ports |
| Supported Video Resolutions | Supported Resolutions: 720p, 1080p, 4K UHD |
| Protocols | SIP, H.323 |
| Power Supply | 100-240V, 50-60 Hz |
| Video Standards | H.264, H.265 |
| Audio Standards | G.711, G.722, AAC-LD |
| Audio Features | Acoustic Echo Cancellation, Background Noise Suppression |
| Video Features | Automatic Gain Control, Auto White Balance |
| Environmental Conditions | Operating: 0°C to 35°C, Storage: -20°C to 60°C |
| Mounting Options | Wall or Rack Mountable |
| Security Features | Advanced Encryption Standard (AES), Secure Boot |
| Camera Control | Up to 8 Cameras |
| Supported Accessories | Room Kit, Spark Board |
| Management | Web-based Interface, Remote Management |
| Dimensions | 445 x 51 x 258 mm |
| Weight | 4.8 kgs |
Information About CS-CODEC-PRO-K9
The Cisco CS-CODEC-PRO-K9 is a high-performance collaboration codec from the Webex Room Kit Pro series, designed for complex and customizable video conferencing environments. It supports multiple video and audio input/output options, integrates seamlessly with a variety of Cisco cameras and displays, and provides a robust platform for immersive, large-room collaboration experiences.
Key Features:
-
Model: CS-CODEC-PRO-K9
-
Video Inputs: 3 × HDMI, 3 × 3G-SDI, 3 × USB (up to 9 simultaneous sources)
-
Video Outputs: 3 × HDMI (supports up to 4Kp60 resolution)
-
Audio Inputs: 8 × mic/line, digital (AES67, USB), HDMI
-
Audio Outputs: Balanced line out, HDMI, digital
-
Camera Support: Cisco PTZ, SpeakerTrack, Quad Camera, Precision 60
-
Display Support: Up to 3 × 4K displays
-
Control Interfaces: API, RS-232, USB, Ethernet
-
Protocol Support: SIP, H.323, Cisco Webex Cloud
-
Management: Web GUI, SSH, Cisco TMS, Webex Control Hub
-
Form Factor: 1U rack-mountable
This codec is ideal for organizations requiring a powerful and flexible solution for large or custom-designed video conferencing spaces. With support for multiple content streams, high-definition media, and seamless integration into AV control systems, the CS-CODEC-PRO-K9 delivers a premium Webex experience that scales to meet the demands of modern collaboration environments.
Description
The Cisco CS-CODEC-PRO-K9 is the core component of the Cisco Webex Room Kit Pro, designed for advanced video conferencing in large meeting rooms and auditoriums. It delivers powerful video, audio, and integration capabilities, supporting multiple displays, cameras, and content sources for professional, scalable collaboration experiences.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Collaboration Equipment
|
| Part Number | CS-CODEC-PRO-K9 |
| Subcategory |
Room Kits
|
| Inputs and Outputs | 8 HDMI inputs, 3 HDMI outputs |
| Audio Inputs and Outputs | 4 Microphone inputs, Speaker tracking support |
| Digital Video Support |
4K UHD at 60 fps |
| Networking | Dual LAN: 2x 1Gbps Ethernet port |
| USB Ports | 6 USB 2.0 ports |
| Supported Video Resolutions | Supported Resolutions: 720p, 1080p, 4K UHD |
| Protocols | SIP, H.323 |
| Power Supply | 100-240V, 50-60 Hz |
| Video Standards | H.264, H.265 |
| Audio Standards | G.711, G.722, AAC-LD |
| Audio Features | Acoustic Echo Cancellation, Background Noise Suppression |
| Video Features | Automatic Gain Control, Auto White Balance |
| Environmental Conditions | Operating: 0°C to 35°C, Storage: -20°C to 60°C |
| Mounting Options | Wall or Rack Mountable |
| Security Features | Advanced Encryption Standard (AES), Secure Boot |
| Camera Control | Up to 8 Cameras |
| Supported Accessories | Room Kit, Spark Board |
| Management | Web-based Interface, Remote Management |
| Dimensions | 445 x 51 x 258 mm |
| Weight | 4.8 kgs |
Information About CS-CODEC-PRO-K9
The Cisco CS-CODEC-PRO-K9 is a high-performance collaboration codec from the Webex Room Kit Pro series, designed for complex and customizable video conferencing environments. It supports multiple video and audio input/output options, integrates seamlessly with a variety of Cisco cameras and displays, and provides a robust platform for immersive, large-room collaboration experiences.
Key Features:
-
Model: CS-CODEC-PRO-K9
-
Video Inputs: 3 × HDMI, 3 × 3G-SDI, 3 × USB (up to 9 simultaneous sources)
-
Video Outputs: 3 × HDMI (supports up to 4Kp60 resolution)
-
Audio Inputs: 8 × mic/line, digital (AES67, USB), HDMI
-
Audio Outputs: Balanced line out, HDMI, digital
-
Camera Support: Cisco PTZ, SpeakerTrack, Quad Camera, Precision 60
-
Display Support: Up to 3 × 4K displays
-
Control Interfaces: API, RS-232, USB, Ethernet
-
Protocol Support: SIP, H.323, Cisco Webex Cloud
-
Management: Web GUI, SSH, Cisco TMS, Webex Control Hub
-
Form Factor: 1U rack-mountable
This codec is ideal for organizations requiring a powerful and flexible solution for large or custom-designed video conferencing spaces. With support for multiple content streams, high-definition media, and seamless integration into AV control systems, the CS-CODEC-PRO-K9 delivers a premium Webex experience that scales to meet the demands of modern collaboration environments.
