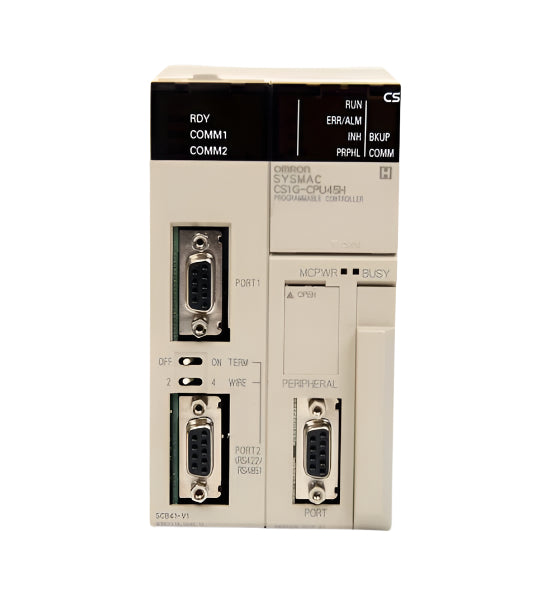

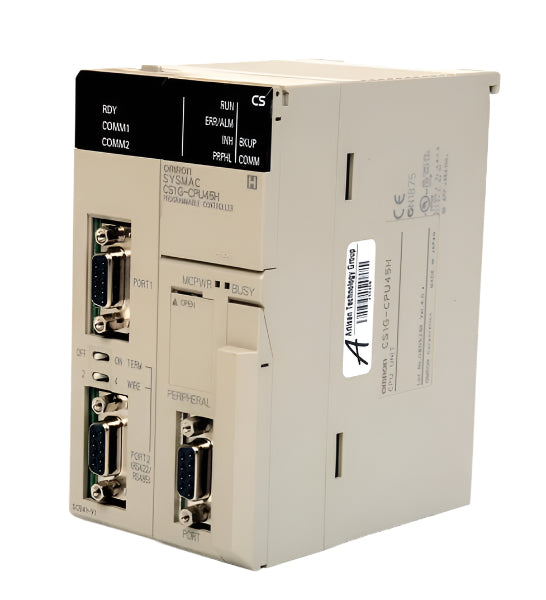

CS1G-CPU45H | Omron CS-Series PLC CPU with 60K Steps 128K Memory
- Regular price
- $4,200.00
- Sale price
- $4,200.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CS1G-CPU45H
Description
The Omron CS1G-CPU45H is a CS-series PLC CPU module offering 60K program steps, 128K words of program memory, and support for up to 5,120 I/O bits. With high-speed instruction execution and multiple communication interfaces, it is designed for reliable control in advanced industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC & PAC Control Systems |
| Part Number | CS1G-CPU45H |
| Subcategory | CPU Modules |
| Series | SYSMAC CS Series |
| Program Capacity | 60K Steps |
| Program Memory Capacity | 128K Words |
| Data Memory Capacity | 32K Words |
| Processing Speed | 0.08 μs per instruction |
| I/O Bit Capacity | 5,120 Bits |
| Max Expansion Racks | 7 |
| Communication Interfaces | Ethernet, RS-232C, RS-485 |
| Programming Languages | LD, ST, SFC (via CX-Programmer) |
| Real-Time Clock | Yes |
| Mounting Type | Rack Mount |
| Output Current (5 VDC) | 0.78 A |
| Power Supply | External via PLC rack |
| RoHS Status | Compliant |
| Dimensions (HxWxD) | Standard CS1 format |
| Weight | 1.04 lbs |
Information About CS1G-CPU45H
The CS1G-CPU45H is a high-performance CPU module from Omron’s SYSMAC CS series, tailored for scalable control in complex automation environments. With a program capacity of 60K steps and 128K words of memory, it ensures smooth execution of intricate control routines, while 32K words of data memory support extensive variable and process data handling. The unit supports up to 5,120 I/O bits and seven expansion racks, offering excellent scalability. It includes communication interfaces such as Ethernet, RS-232C, and RS-485, along with a real-time clock for precise event tracking and scheduling in time-sensitive applications.
Key Features:
-
60K-Step Program Capacity: Handles complex control programs for high-level automation tasks with reliable performance.
-
128K Words Program Memory + 32K Words Data Memory: Provides extensive memory resources for logic, variable storage, and system diagnostics.
-
Fast Instruction Execution: Executes basic instructions at a speed of 0.08 μs, ensuring responsive operation in demanding processes.
-
Wide I/O Support: Controls up to 5,120 I/O bits across as many as 7 expansion racks, offering flexibility for large-scale systems.
-
Versatile Communication Ports: Equipped with Ethernet, RS-232C, and RS-485 interfaces for integration with external equipment and networks.
-
Real-Time Clock Functionality: Supports time-stamped operations, alarms, and logging with built-in RTC capabilities.
-
Modular CS1 Architecture: Compatible with other CS1 modules, enabling flexible system configuration and expansion.
-
Robust Design for Industrial Use: Built to operate reliably in continuous-use manufacturing and process control environments.
The CS1G-CPU45H delivers the reliability and precision required for centralized control in complex industrial automation networks.
