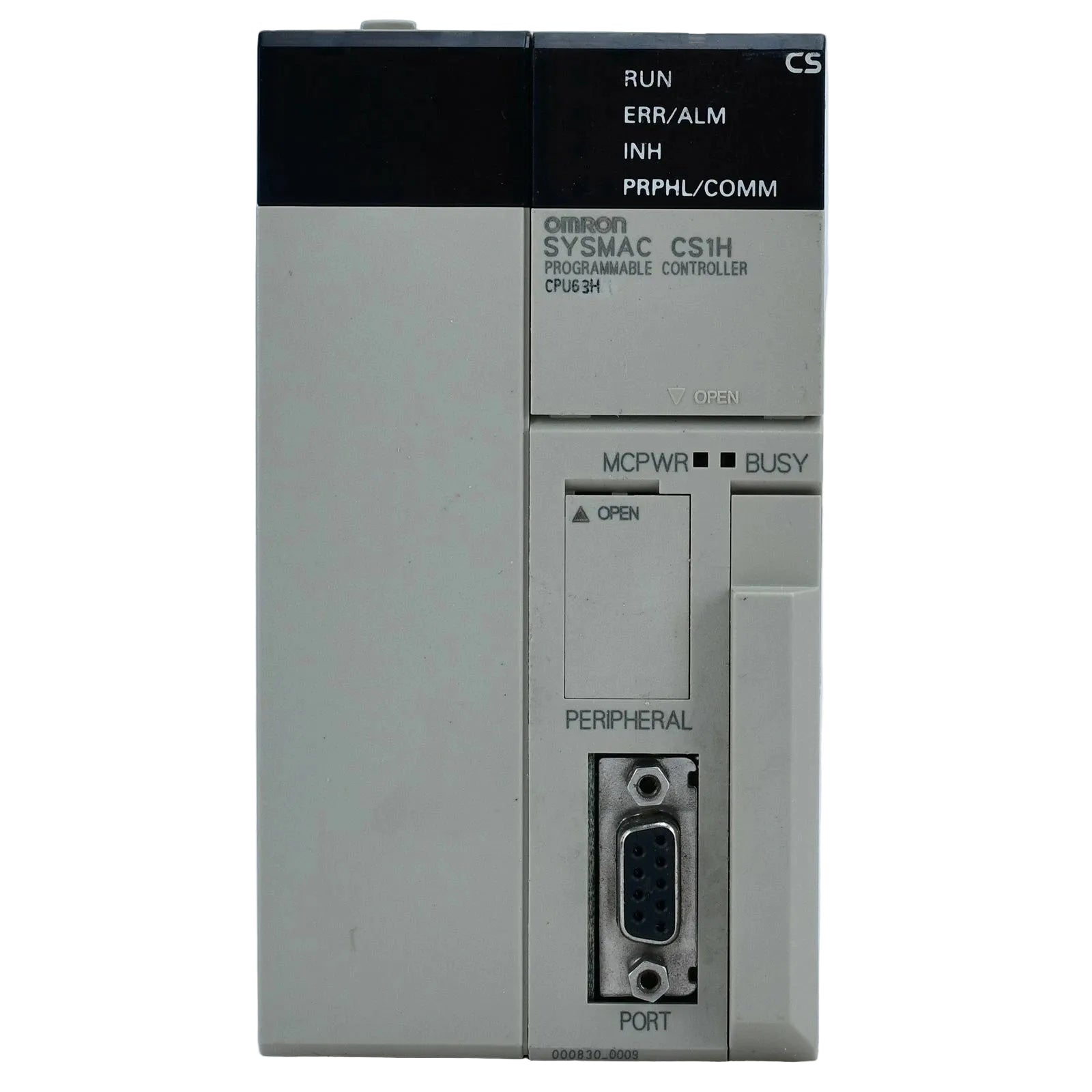

CS1H-CPU63H | Omron SYSMAC CS-Series High-Speed PLC CPU Module
- Regular price
- $774.00
- Sale price
- $774.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CS1H-CPU63H
Description
The Omron CS1H-CPU63H CPU module is a high-performance programmable controller processor designed for advanced control within SYSMAC CS-series PLC systems. It delivers fast instruction execution and expanded memory capacity to support complex automation tasks in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Programmable Logic Controllers |
| Part Number | CS1H-CPU63H |
| Subcategory | PLC CPU Modules |
| Product Line | CS1 |
| Series | SYSMAC CS Series |
| Product Type | CPU Module |
| Program Capacity | 20K Steps |
| Total Data Memory Capacity | 64K Words |
| Data Memory (DM) | 32K Words |
| Extended Memory (EM) | 32K Words |
| Instruction Processing Speed | 0.04 µs |
| Supported Expansion Racks | Up to 7 |
| Maximum Expandable Modules | Up to 80 Modules |
| Communication Ports | RS-232C, Peripheral Port |
| Optional Memory Cards | Supported |
| Programming Software | CX-One |
| Mounting Type | Backplane |
| Certifications | CE, cULus, Lloyd, NK |
| Weight | 2.00 lbs (0.91 kg) |
Information About CS1H-CPU63H
The CS1H-CPU63H is part of Omron’s SYSMAC CS1 product line, engineered for scalable and high-speed PLC architectures. This CPU module supports large program and data memory capacities, enabling sophisticated control logic and extensive data handling. It is designed for backplane mounting and supports multiple expansion racks, allowing systems to grow as application demands increase. Compatibility with Omron CX-One software and standard communication ports ensures seamless integration and efficient system programming.
Key Features:
- High-Speed CPU Performance: Executes ladder instructions at 0.04 microseconds for rapid control response.
- Large Memory Capacity: Provides a total of 64K words for program and data storage.
- Expansion Rack Support: Allows connection of up to seven expansion racks for scalable system design.
- Flexible Data Memory Structure: Includes dedicated DM and EM memory areas for organized data handling.
- Integrated Communication Ports: Equipped with RS-232C and peripheral interfaces for programming and device connectivity.
- Optional Memory Card Support: Enables external memory expansion and data backup.
- SYSMAC CS-Series Compatibility: Designed for seamless operation within Omron CS-series PLC systems.
The CS1H-CPU63H delivers the reliability and precision required for high-speed PLC processing and complex industrial automation control.
