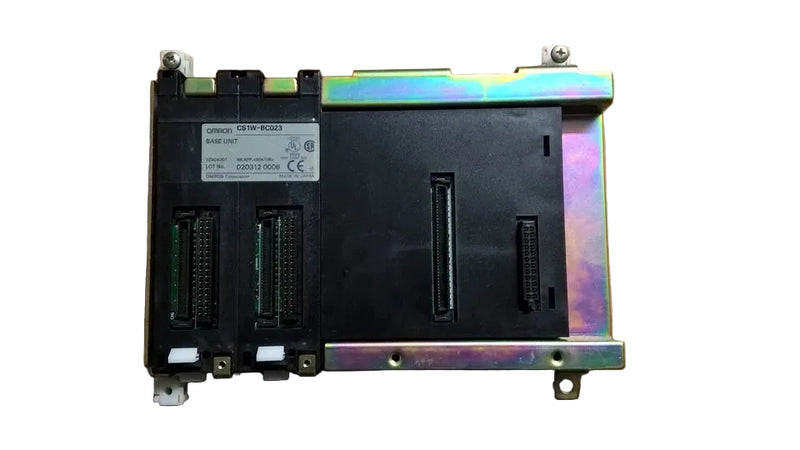

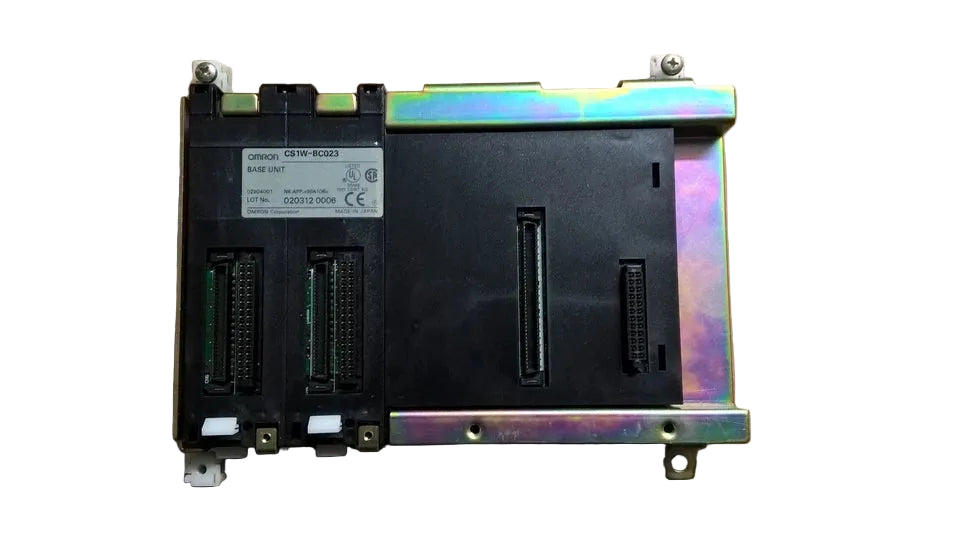

CS1W-BC023 | Omron CS-Series 2-Slot PLC CPU Backplane
- Regular price
- $559.00
- Sale price
- $559.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CS1W-BC023
Description
The Omron CS1W-BC023 is a 2-slot CPU backplane designed for CS-Series and C200H Series PLC systems. It provides the structural and electrical interface required to mount and interconnect PLC modules within a control panel. This backplane supports reliable module communication and stable system expansion in industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation |
| Part Number | CS1W-BC023 |
| Subcategory | PLC Backplanes |
| Product Type | Central Processing Unit Backplane |
| Product Line | CS1 |
| Number of Slots | 2 Slots |
| Compatibility | CS-Series, C200H Series |
| Mounting Mode | Panel Surface |
| Operating Temperature Range | -20°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
| Compliance Standards | Lloyd, EC Directives, UL, CSA |
| Material | Industrial-Grade Metal or Durable Plastic |
| Power Supply | Dependent on Installed System Modules |
| Application | PLC Module Mounting and Interconnection |
| Weight | 1.00 lbs (0.45 kg) |
Information About CS1W-BC023
The CS1W-BC023 is a central processing unit backplane developed for Omron CS-Series and compatible C200H Series programmable controllers. It features two module slots that allow installation of a CPU and an additional expansion or support module within a compact system configuration. Designed for panel surface mounting, the backplane ensures secure mechanical support and consistent electrical connectivity between installed PLC components. Constructed from durable industrial-grade materials and compliant with Lloyd, EC Directives, UL, and CSA standards, it is suitable for operation in environments ranging from -20°C to +55°C.
Key Features:
- 2-Slot Configuration: Supports installation of a CPU and one additional module.
- CS and C200H Compatibility: Designed for integration with Omron CS-Series and C200H PLC platforms.
- Panel Surface Mounting: Enables secure attachment within industrial control enclosures.
- Reliable Module Interconnection: Provides stable electrical and communication pathways between modules.
- Industrial Temperature Range: Operates from -20°C to +55°C for demanding environments.
- Wide Compliance Standards: Certified to Lloyd, EC Directives, UL, and CSA requirements.
- Durable Construction: Built from robust materials for long-term industrial use.
The CS1W-BC023 delivers the reliability and precision required for stable PLC module mounting and system integration in industrial control systems.
