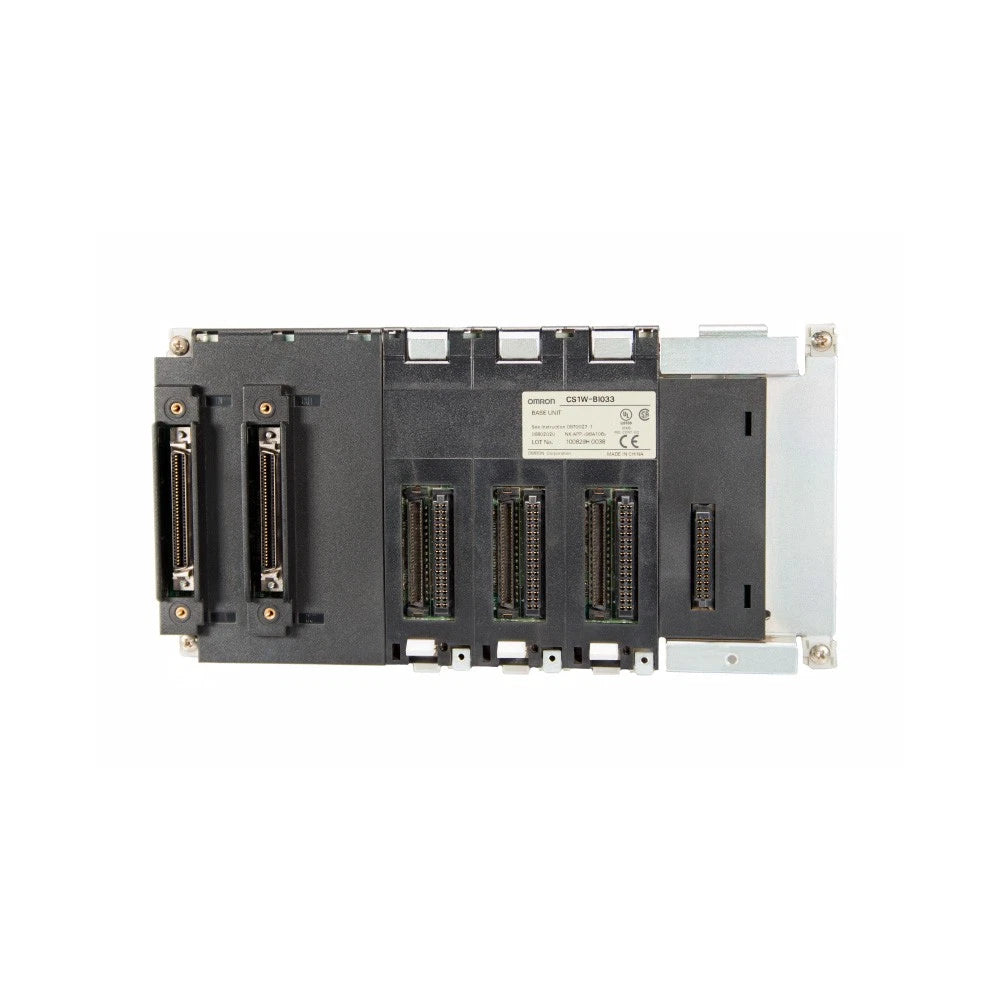

CS1W-BI033 | Omron CS1/C200H 3-Slot PLC CPU Backplane

CS1W-BI033 | Omron CS1/C200H 3-Slot PLC CPU Backplane

Part #: CS1W-BI033 Manufactured by: Omron

Regular price: $317.00
Sale price: $317.00
Regular price

1 in Stock

Condition: New-Surplus Original Box

Shipping calculated at checkout.

Product variants:

Quantity:

Product Overview

The CS1W-BI033 is a 3-slot backplane designed to interconnect CPU and expansion I/O modules in Omron CS1 and C200H Series ... Read more

We accept:

Talk to a real expert.

+1 (828) 222-3490

sales@iqelectro.com

Mon–Sat, 7:00 AM – 8:00 PM (EST)

IQElectro 2-Year Warranty

Warranty for Product #: CS1W-BI033

IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms

2-3 Day Free Shipping

Packed Ready to Ship

24/7 Expert Support

Return within 30-Days

IQElectro is Not an authorized distributor for Omron

Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: CS1W-BI033

Description / Specifications

Description

The Omron CS1W-BI033 is a 3-slot CPU backplane designed for CS1 and C200H Series PLC systems. It provides mechanical support and electrical interconnection for CPU and expansion I/O modules within a control panel. With a 5 V system current consumption of 0.23 A, this backplane ensures stable integration of PLC components in industrial automation environments.

Technical Specifications

Condition	New/Never Used Surplus
Brand	Omron
Category	Industrial Automation
Part Number	CS1W-BI033
Subcategory	PLC Backplanes
Product Line	CS1W Series
Product Type	3-Slot CPU Backplane
Slot Count	3 Slots
Technical Compatibility	CS1 Series, C200H Series
Mounting Type	Panel or Surface Mount
Power Consumption	0.23 A at 5 V
Operating Temperature Range	-10°C to +55°C
Storage Temperature Range	-25°C to +70°C
Expandable	Yes
Application	CPU and Expansion I/O Integration
Weight	2.00 lbs (0.91 kg)

Information About CS1W-BI033

The CS1W-BI033 is a backplane unit developed for use with Omron CS1 and C200H Series programmable controllers. It features three slots for mounting CPU and expansion I/O modules, enabling compact and expandable PLC configurations. Designed for panel or surface mounting, it supports secure installation within control cabinets. Operating within a temperature range of -10°C to +55°C and compatible with related CS1 and C200H products, it provides dependable system expansion and interconnection.

Key Features:

3-Slot Configuration: Accommodates CPU and expansion I/O modules in compact setups.
CS1 and C200H Compatibility: Supports both series for flexible system integration.
Expandable Design: Enables scalable PLC architecture.
Low System Current Consumption: 0.23 A at 5 V system power.
Panel or Surface Mounting: Provides secure installation in control enclosures.
Wide Operating Temperature Range: Operates from -10°C to +55°C.
Industrial Storage Range: Withstands storage temperatures from -25°C to +70°C.

The CS1W-BI033 delivers the reliability and precision required for stable PLC module mounting and expansion in CS1 and C200H automation systems.
