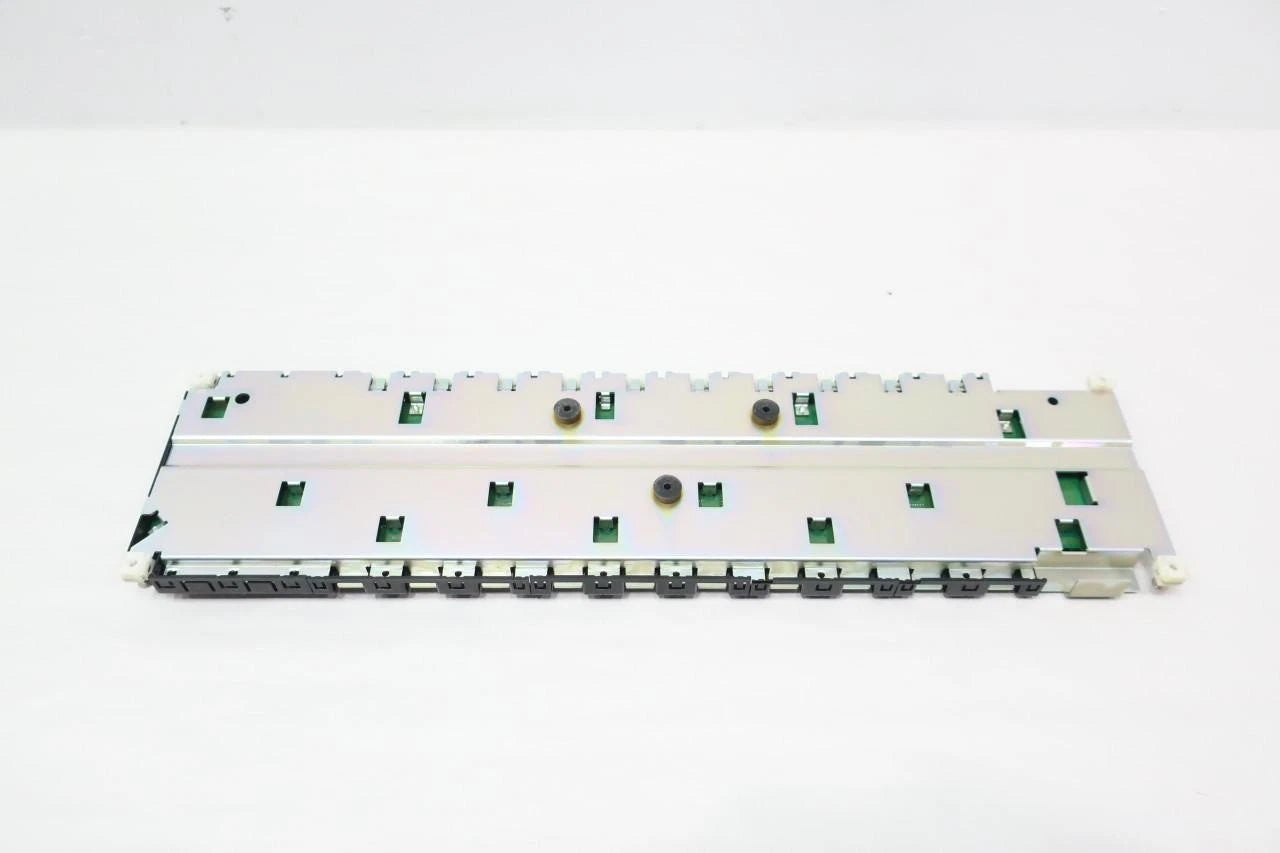

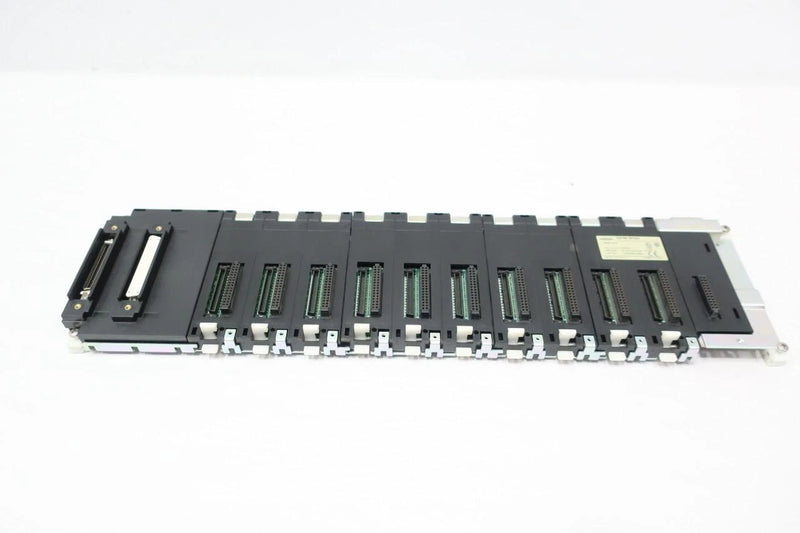

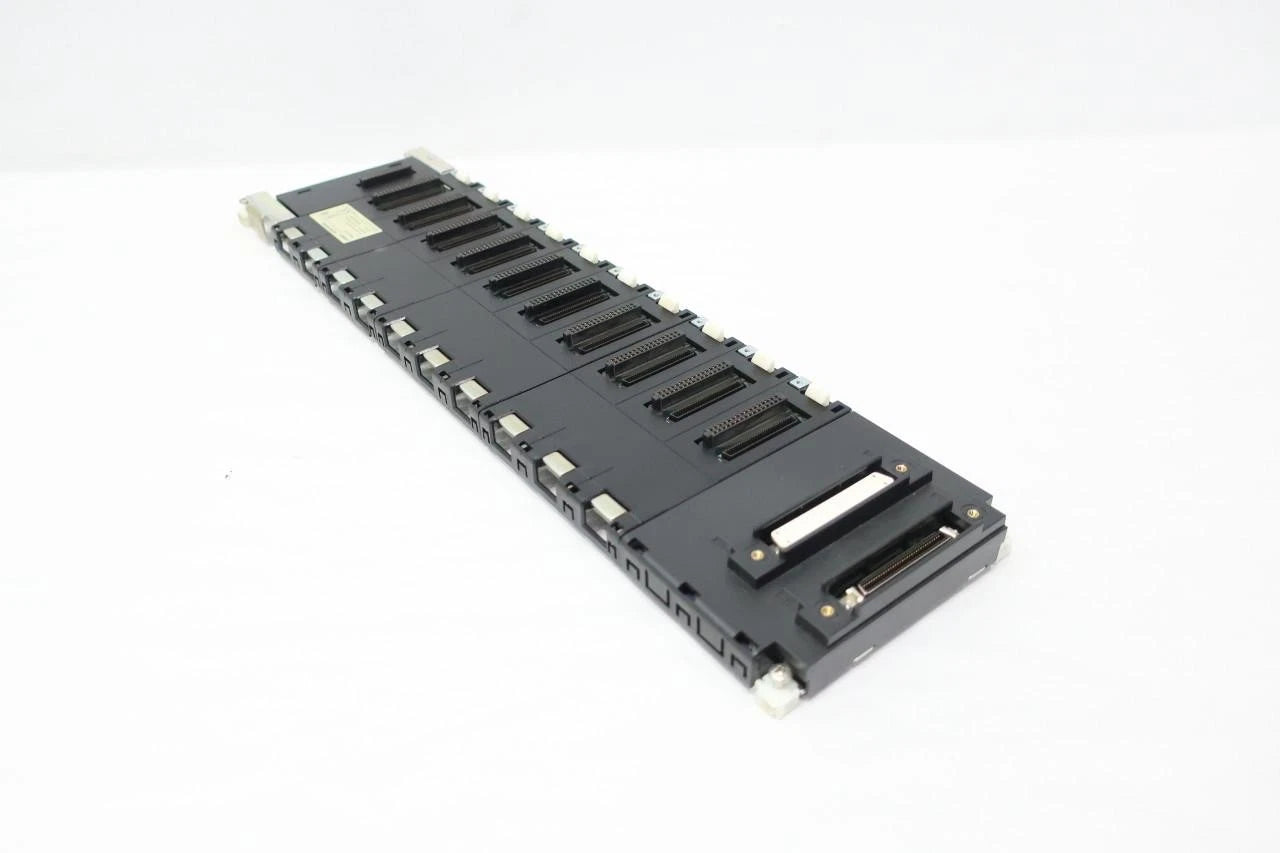

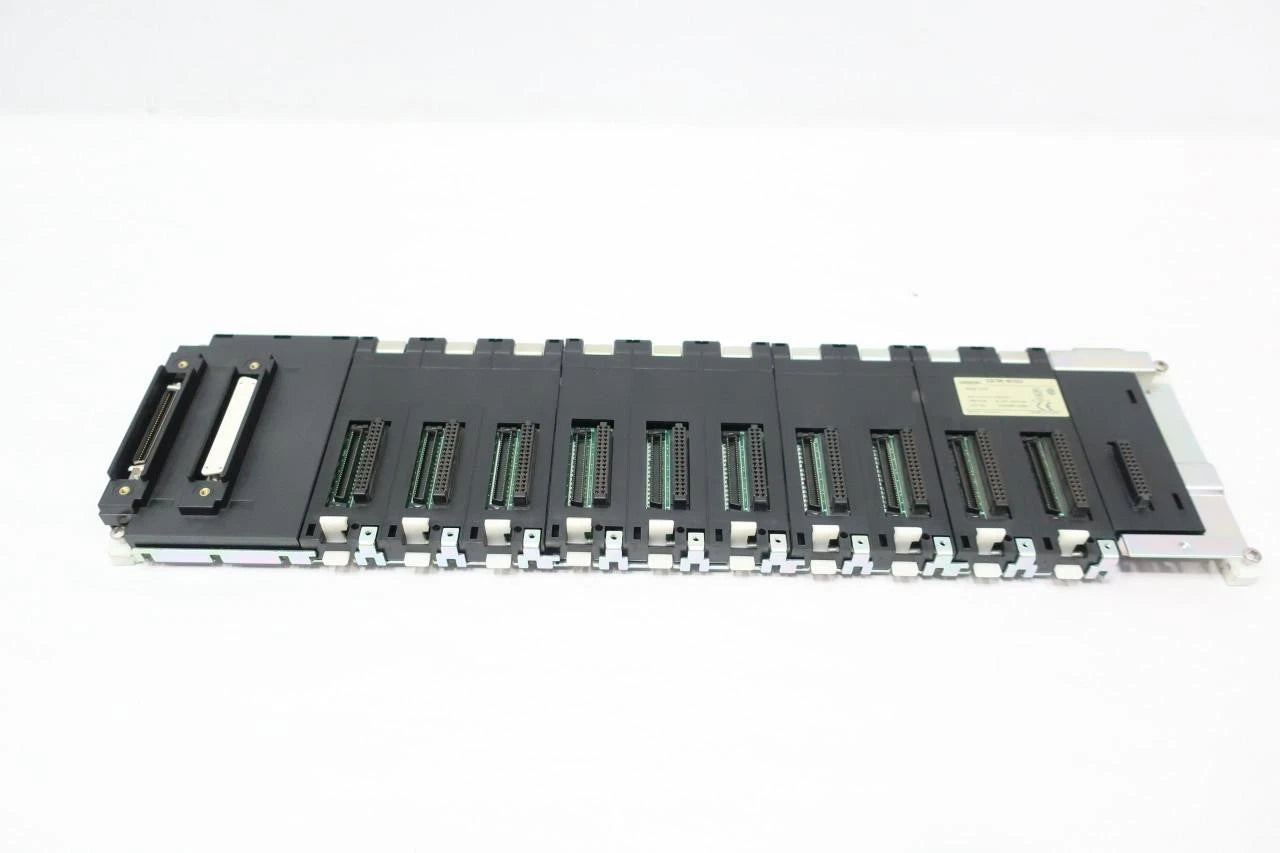

CS1W-BI103 | Omron CS1 10-Slot PLC Expansion Backplane Base Unit
- Regular price
- $422.00
- Sale price
- $422.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CS1W-BI103
Description
The Omron CS1W-BI103 is a 10-slot I/O expansion backplane designed for the SYSMAC CS1 series PLC platform. It serves as a base unit for mounting and interconnecting basic and special I/O units within a control panel. The CS1W-BI103 provides structured expansion capability for modular PLC system configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | CS1W-BI103 |
| Subcategory | PLC Module/Rack |
| Series | CS1 / SYSMAC CS1 |
| Model Number | CS1W-BI103 |
| Function | I/O Expansion Backplane / Base Unit |
| Number of Slots | 10 |
| Expansion Type | Normal Expansion |
| Supported Units | Basic & Special I/O Units |
| Compatibility | CS-Series and C200H-Series I/O/Bus Units |
| Mounting Type | Panel / Surface Mount |
| Operating Temperature | 0 to +55 °C |
| Compliance | UL, CSA, EC Directives |
| Part Alias | CS1WBI103 |
| Weight | 3.00 lbs |
Information About CS1W-BI103
The CS1W-BI103 is an expansion backplane developed for Omron’s CS1 / SYSMAC CS1 programmable controller series. It functions as a normal expansion base unit, offering 10 slots for installing CPU bus units, basic I/O modules, and special I/O units. Designed for panel or surface mounting, the unit enables organized system layout and secure electrical interconnection between modules. Compatible with CS-series and certain C200H-series I/O and bus units, it supports scalable automation architectures in industrial control environments.
Key Features:
- 10-Slot Capacity: Provides ten module slots for flexible PLC system expansion.
- CS1 Series Integration: Engineered for seamless operation within SYSMAC CS1 PLC systems.
- Basic & Special I/O Support: Accepts a wide range of CPU bus, I/O, and special function modules.
- Modular System Design: Enables structured and scalable PLC configurations.
- Panel/Surface Mounting: Designed for secure installation inside control cabinets.
- Broad Compatibility: Works with CS-series and compatible C200H-series I/O/bus units.
- Industrial Compliance: Meets UL, CSA, and EC directive standards per supplier data.
The CS1W-BI103 delivers the reliability and precision required for structured PLC system expansion and modular automation control.
