CS1W-CIF31 | Omron | Conversion Cable/Features

Description

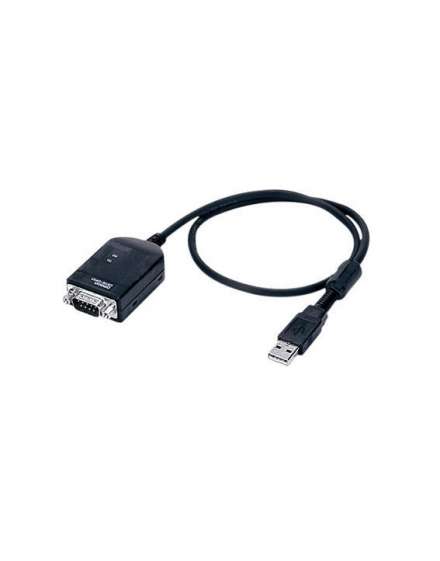

The CS1W-CIF31 USB-Serial Conversion Cable facilitates the connection between OMRON PLCs (Programmable Logic Controllers) including CS/CJ/CP Series, C Series, CVM1/CV Series, or PT (Programmable Terminal) and a personal computer's USB port. This cable serves as an interface for serial communication, enabling users to transfer data and establish communication between OMRON PLCs and computers via USB connectivity. With its convenient USB-Serial conversion functionality, the CS1W-CIF31 cable enhances accessibility and ease of use in programming, monitoring, and configuring OMRON PLC systems from a computer platform.

Technical Specifications

Information About CS1W-CIF31

The CS1W-CIF31 USB-Serial Conversion Cable serves as a bridge between the CS/CJ/CP Series, C Series, CVM1/CV Series of OMRON PLC (Programmable Controller) or PT (Programmable Terminal) and a personal computer's USB port. It facilitates communication between the mentioned OMRON PLCs and personal computers, enabling data exchange and programming tasks.

Designed to adhere to USB Specification standards, the CS1W-CIF31 cable ensures compatibility and reliability in data transmission. It features a USB interface rating conforming to USB Specification 2.0, ensuring seamless connectivity and data transfer between the connected devices.

The cable operates at a DTE speed of 115.2 kbps, providing efficient data transmission rates suitable for various industrial and automation applications. Its robust design and construction guarantee stable and secure communication between the PLCs and the computer system.

The CS1W-CIF31 cable is equipped with specific connectors at both ends to facilitate easy and secure connections. At the computer end, it features a USB Type A plug (male), while at the PLC or PT end, it includes an RS-232C connector (D-sub 9-pin, male). These connectors ensure compatibility with the respective ports on the devices, establishing a reliable data link.

The cable is powered via bus power, drawing 5 VDC power from the upstream device. This eliminates the need for additional power sources and simplifies the setup process, enhancing convenience and flexibility in deployment.

In terms of environmental suitability, the CS1W-CIF31 cable is designed to operate within a temperature range of 0 to 55 ºC. It can withstand ambient humidity levels ranging from 10% to 90% without condensation, ensuring reliable performance in diverse operating conditions. Additionally, it is engineered to function in atmospheres free from corrosive gases, safeguarding its longevity and functionality.

Manufacturer information

OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
