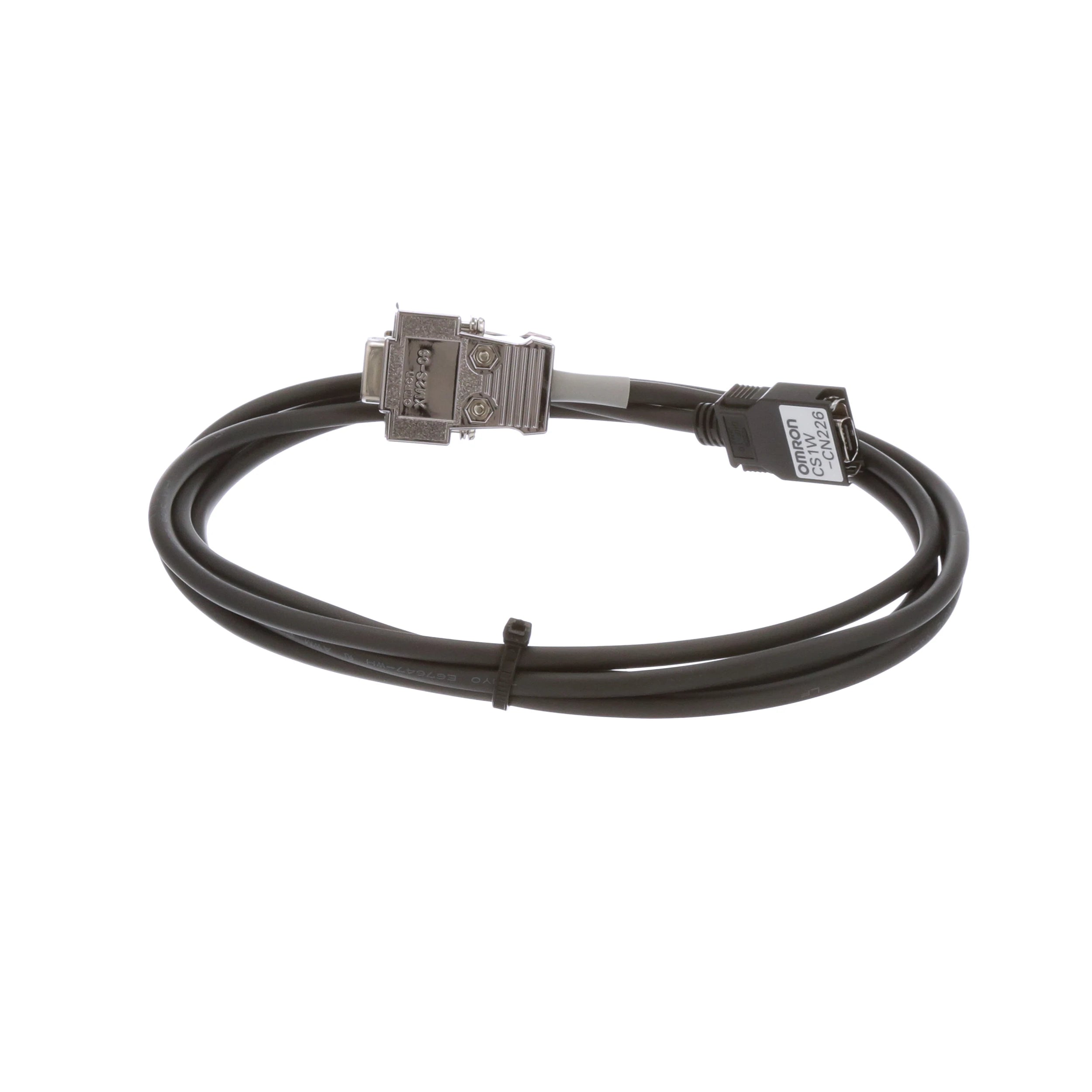

CS1W-CN226 | Omron Connecting Cable
- Regular price
- $133.00
- Sale price
- $133.00
- Regular price
-
Do you need more quantity?
Product Description P/N: CS1W-CN226
Description
Omron's CS1W-CN226 USB-Serial Conversion Cable is a small, strong option for wirelessly connecting USB-connected Omron PLCs or PTs to computers. It runs at a DTE speed of 115.2 kbps, enabling effective programming and data interchange. It has USB (type A) and RS-232C (D-sub 9-pin) interfaces and is OS and software compatible. It also draws power from the USB interface. With a 0 to 55 oC ambient temperature range, it guarantees dependable operation in commercial settings.
Technical Specifications
Brand | OMRON |
Product Type | USB-Serial Conversion Cable |
Part Number | CS1W-CN226 |
Compatible Operating Systems | Windows 98/ME/2000/XP(32bit)/Vista(32bit/64bit)/7(32bit/64bit) |
Compatible Software Applications | CX-One, PLC Reporter, DeviceNet Configurator, NT Support Tool for Windows, ZEN Support Software Ver.3.0 or later |
Compatible PLCs | CS/CJ-series, C-series, CVM1/CV-series, CQM1, CPM1, CPM1A, CPM2A, SRM1, CQM1H, CPM2C |
Compatible PTs | NS-series, NT-series |
Compatible Programmable Relay | ZEN |
Dimensions | 50 g |
USB Interface Rating | Conforms to USB Specification 1.1 |
DTE Speed | 115.2 kbps |
Connector Specifications | Computer end: USB (type A plug, male), PLC or PT end: RS-232C (D-sub 9-pin, male) |
Power Supply | Bus power (5 VDC power from upstream) |
Current Consumption | 35 mA |
Ambient Temperature | 0 to 55 ºC |
Information About CS1W-CN226
The Omron CS1W-CN226 USB-Serial Conversion Cable stands as a versatile solution designed to facilitate seamless connectivity between Omron Programmable Controllers (PLCs) or Programmable Terminals (PTs) and a computer's USB port. This cable, serving as a pivotal component in industrial automation, fosters efficient communication for programming, monitoring, and data exchange between the PLC/PT and the computer. Engineered with precision, the CS1W-CN226 embodies a compact and lightweight design, ensuring its resilience in rigorous industrial environments. With a USB connector (type A plug, male) on the computer end and an RS-232C connector (D-sub 9-pin, male) on the PLC/PT end, the cable spans 0.5 meters in length, offering flexibility in setup while operating at a rapid DTE speed of 115.2 kbps. Drawing power from the USB interface and consuming a mere 35 mA of current, this cable guarantees minimal energy consumption during operation. The CS1W-CN226 exhibits outstanding compatibility with a wide range of operating systems, including Windows 98, ME, 2000, XP, Vista, and 7, encompassing both 32-bit and 64-bit variants. Furthermore, its adaptability extends to various software applications, including CX-One, PLC Reporter, DeviceNet Configurator, NT Support Tool for Windows, and ZEN Support Software version 3.0 or later. The cable demonstrates its versatility by supporting multiple Omron PLCs, such as CS/CJ-series, C-series, CVM1/CV-series, and various PTs like NS-series and NT-series. It also accommodates the ZEN Programmable Relay in conjunction with ZEN Support Software version 3.0 or later. Dedicated to dependable performance, the CS1W-CN226 thrives in challenging conditions, operating within an ambient temperature range of 0 to 55 ºC and humidity ranging from 10% to 90% (without condensation). This robust cable conforms to USB Specification 1.1, guaranteeing reliability and consistency in data transfer. Weighing a mere 50 grams, this cable boasts an impressive combination of sturdiness and lightweight portability, simplifying installation and usage. In essence, the Omron CS1W-CN226 USB-Serial Conversion Cable epitomizes innovation, reliability, and compatibility in the realm of industrial automation, ultimately enhancing connectivity and control within automation setups.
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
