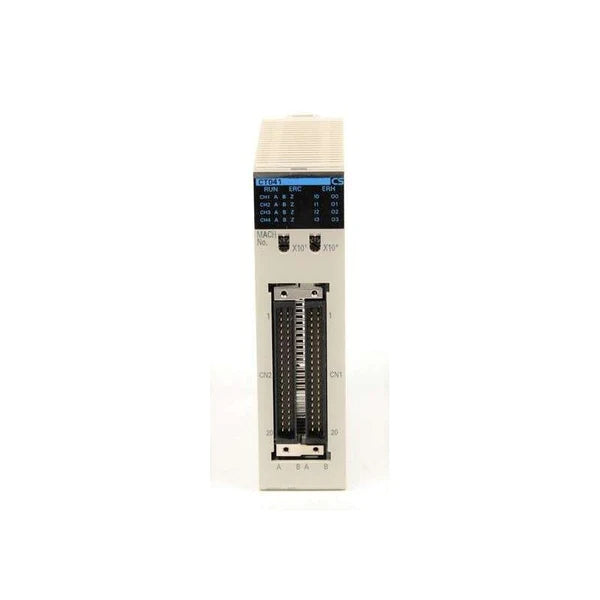

CS1W-CT041 | Omron Sysmac CS1 High-Speed 4-Channel Counter Unit With Encoder Inputs
- Regular price
- $528.00
- Sale price
- $528.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CS1W-CT041
Description
The Omron CS1W-CT041 is a high-speed 4-channel counter unit designed for precise encoder and pulse-signal measurement in Sysmac CS1 automation systems. It supports multiple voltage levels and high-frequency inputs, enabling accurate counting and position feedback in demanding industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Controls & Indicators |
| Part Number | CS1W-CT041 |
| Subcategory | Timer / Counter |
| Main Function | I/O Unit (High-Speed Counter) |
| Product Series | SYSMAC CS1 Series |
| Channels | 4 High-Speed Counting Channels |
| Digital Inputs | 4 Inputs (A/B/Z Encoder Signals; 5 VDC / 12 VDC / 24 VDC) |
| Input Frequency | 50 kHz (Standard) or 500 kHz via RS-422 |
| Current Consumption | 0.45 A @ 5 VDC |
| Mounting Mode | Backplane / Rack |
| Operating Temperature | 0…55 °C |
Information About CS1W-CT041
The Omron CS1W-CT041 is a high-performance counter module designed for the Sysmac CS1 PLC series, providing four independent high-speed counting channels for real-time encoder processing and pulse measurement tasks. It accepts multiple voltage levels and supports A/B/Z encoder formats, enabling compatibility with a wide range of industrial position sensors. With the ability to process signals up to 50 kHz or 500 kHz when using RS-422 differential transmission, the unit is well suited for applications requiring rapid motion detection or precision feedback. Its compact backplane-mounted design ensures easy integration into CS1 racks, while low current consumption supports efficient system architecture. Engineered for environments up to 55°C, it maintains accurate counting performance in continuous industrial operation.
Key Features:
- Four Independent High-Speed Channels: Enables simultaneous processing of multiple encoders or pulse-generating devices for multi-axis or multi-sensor applications.
- Versatile Encoder Support: Accepts A/B/Z quadrature encoder signals across 5 V, 12 V, or 24 V levels, ensuring broad compatibility with industrial feedback devices.
- High-Frequency Input Capability: Handles 50 kHz counting rates for standard inputs and up to 500 kHz using RS-422 differential signals for high-resolution motion control.
- Backplane-Mounted Integration: Installs directly into Sysmac CS1 racks, enabling seamless communication with PLC logic and synchronous system updates.
- Low Power Consumption: Draws only 0.45 A at 5 VDC, minimizing impact on system power budgets while maintaining high-speed performance.
- Robust Operating Temperature Range: Designed to function reliably from 0 to 55°C, supporting stable performance in industrial control cabinets.
- Ideal for Precision Motion Feedback: Suitable for conveyor tracking, rotary indexing, cut-to-length machines, and position-based automation tasks.
- High Signal Integrity: RS-422 compatibility ensures excellent noise immunity in long-distance or high-interference environments.
The CS1W-CT041 delivers the reliability and precision required for high-speed counting and encoder signal processing in advanced Omron Sysmac CS1 automation systems.
