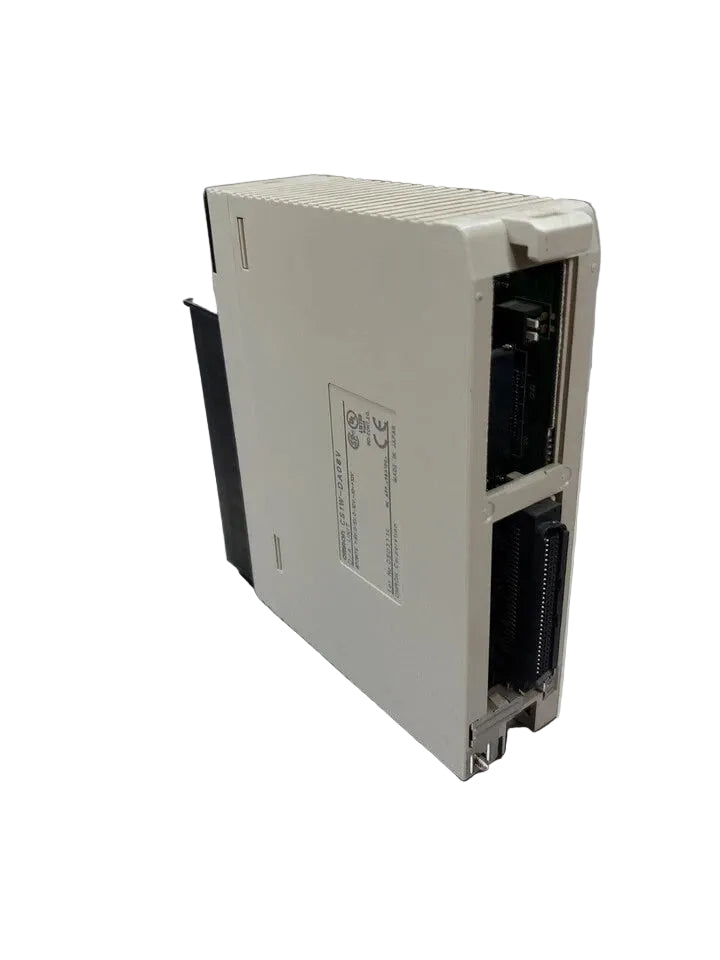

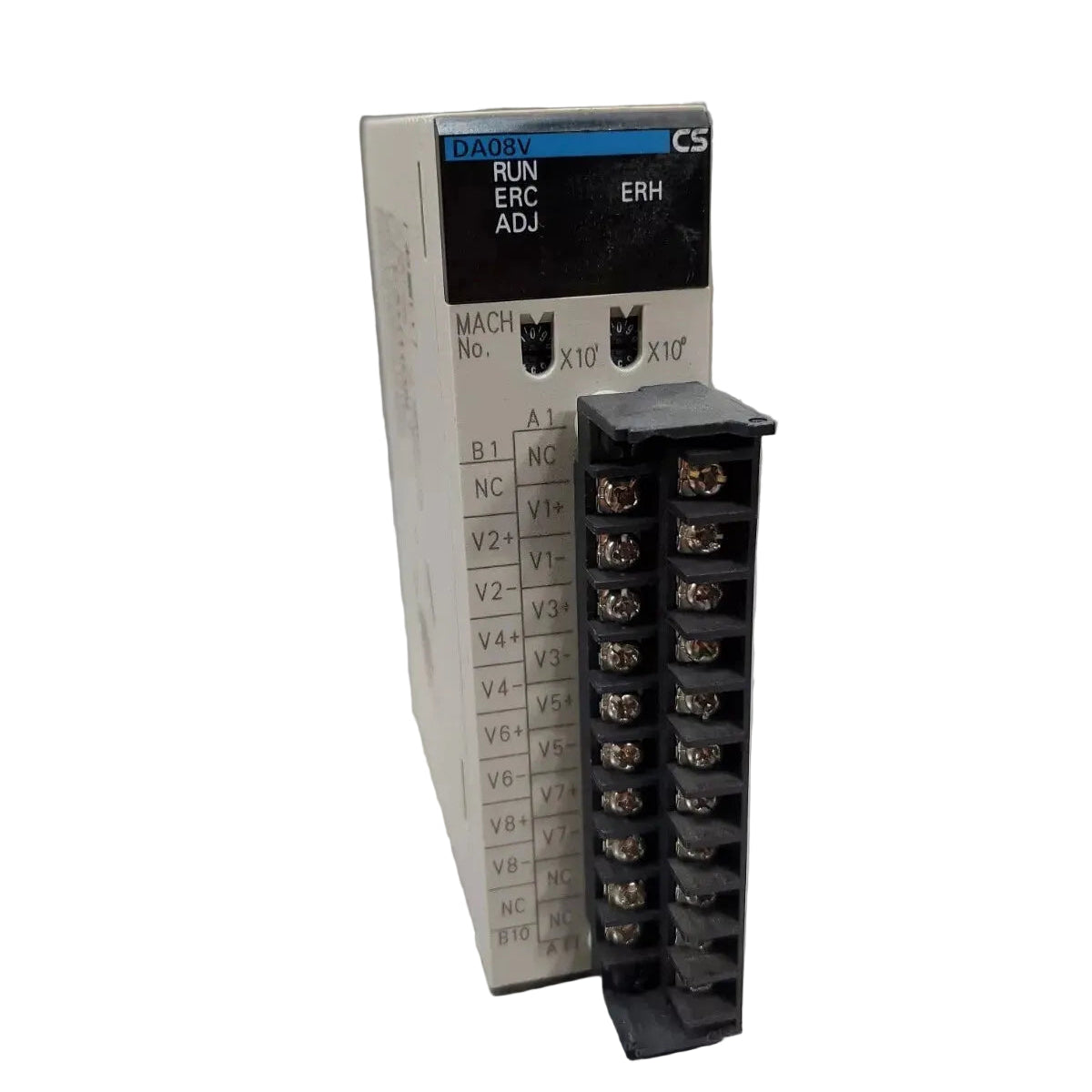

CS1W-DA08V | Omron CS Series PLC Analog Output Module 8 Channels 12 Bit Resolution
- Regular price
- $439.00
- Sale price
- $439.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CS1W-DA08V
Description
The Omron CS1W-DA08V is an analog output unit designed to deliver precise voltage signals within SYSMAC CS Series PLC systems. It provides eight high-resolution analog output channels to support accurate process and machine control in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Programmable Logic Controllers |
| Part Number | CS1W-DA08V |
| Subcategory | PLC Analog Output Modules |
| PLC Series | SYSMAC CS Series |
| Module Type | Analog Output Unit |
| Number of Analog Outputs | 8 |
| Output Signal Ranges | 1–5 VDC, 0–5 VDC, 0–10 VDC, -10 to +10 VDC |
| Resolution | 12 Bit (1/4000) |
| Refreshing Time | 1 ms |
| Connection Type | Removable Screw Terminal Block |
| Mounting Mode | Backplane / Rack |
| Current Consumption | 0.13 A at 5 VDC / 0.18 A at 24 VDC |
| Operating Temperature | 0°C to +55°C |
| Compliance | cULus Class I Division 2 |
| Application | Analog Process Signal Control |
| Weight | 1.1 lbs |
Information About CS1W-DA08V
The CS1W-DA08V is an analog output module from Omron’s CS Series, engineered to generate stable and accurate voltage signals for industrial control systems. It is commonly used to control devices such as variable frequency drives, actuators, valves, and other analog-controlled equipment. The module supports multiple voltage ranges per channel, allowing flexible configuration based on application requirements. Its rack-mounted design and removable terminal connections support reliable installation and maintenance in PLC-based automation panels.
Key Features
- Eight Independent Analog Output Channels: Provides multiple output points for controlling several analog devices from a single PLC module.
- Multiple Voltage Output Ranges: Supports 1–5 VDC, 0–5 VDC, 0–10 VDC, and ±10 VDC signals for broad device compatibility.
- 12-Bit High-Resolution Output: Delivers fine signal granularity to support precise control of speed, position, pressure, and flow.
- Fast 1 ms Refresh Time: Ensures rapid signal updates for responsive process and motion control applications.
- Removable Screw Terminal Connections: Simplifies wiring, maintenance, and replacement in industrial control cabinets.
- CS Series System Integration: Designed for seamless compatibility with Omron SYSMAC CS Series PLC CPUs and racks.
- Industrial Temperature Rating: Operates reliably in environments up to +55°C, supporting continuous-duty automation systems.
The CS1W-DA08V delivers the reliability and precision required for accurate analog output control in advanced PLC-based industrial automation systems.
