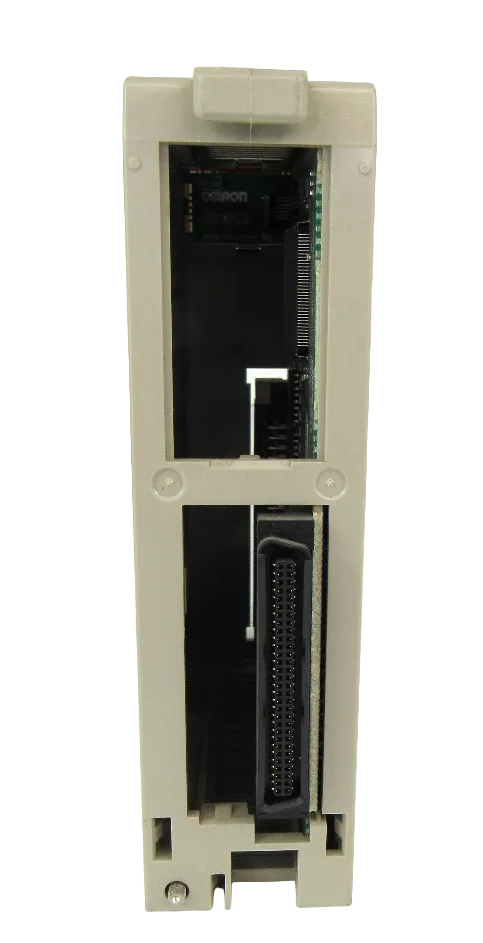

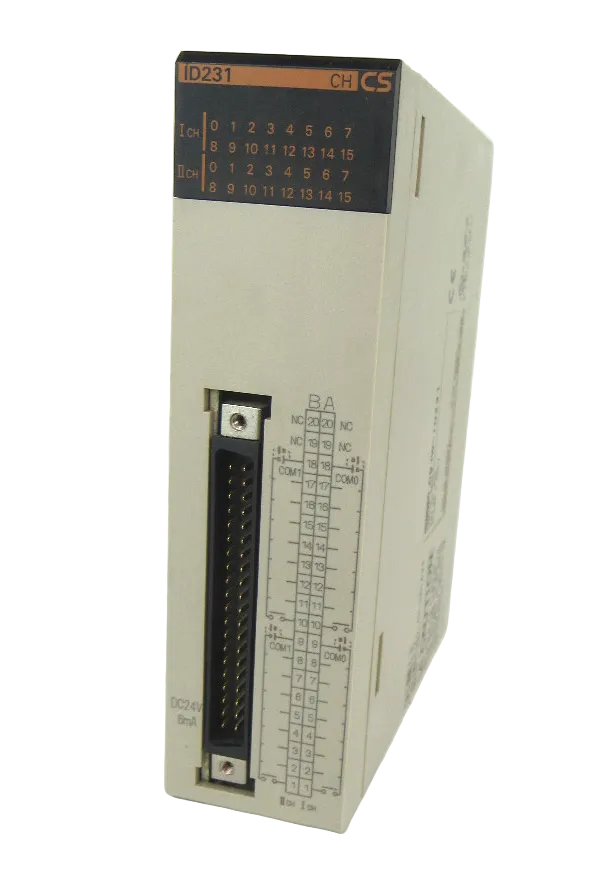

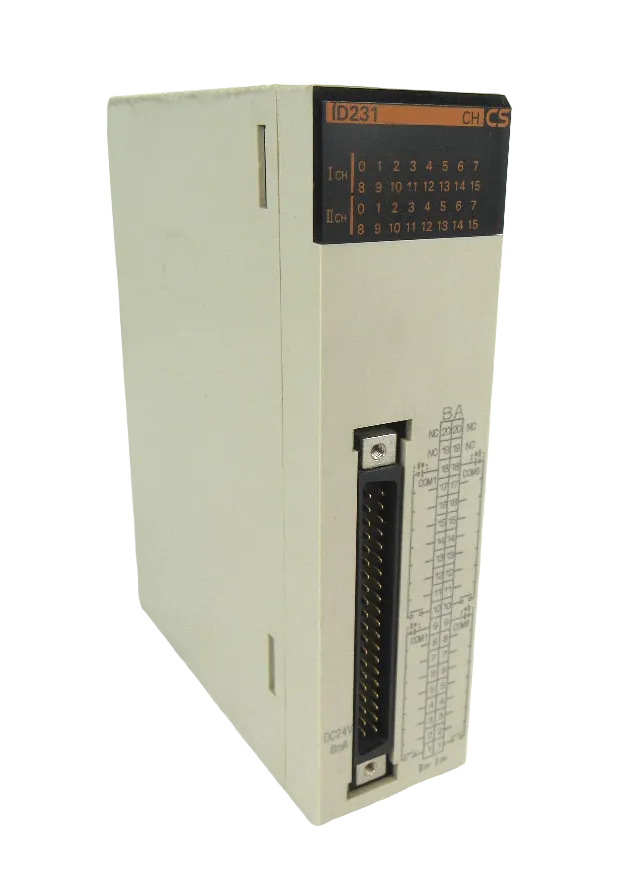

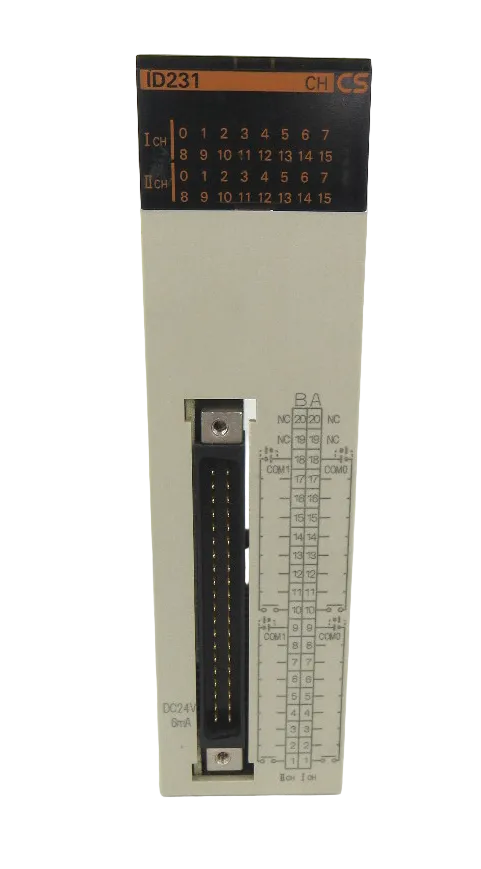

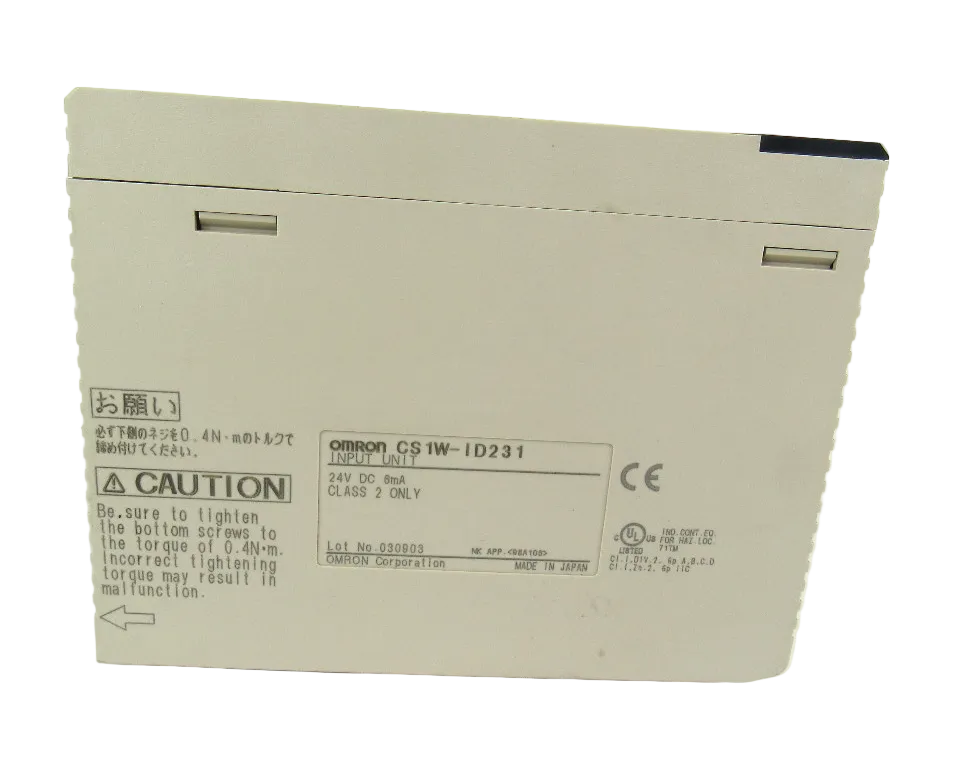

CS1W-ID231 | Omron 32-Point 24VDC Digital Input Module CS1
- Regular price
- $214.00
- Sale price
- $214.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CS1W-ID231
Description
The Omron CS1W-ID231 is a 32-point DC input module designed for CS1 series PLC systems. It operates at a rated input voltage of 24 V DC and provides reliable digital signal acquisition for industrial automation applications. With configurable response times and dual input circuits, it ensures stable and flexible integration into control architectures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLC Modules |
| Part Number | CS1W-ID231 |
| Subcategory | DC Input Module |
| Product Line | CS1 |
| Module Type | DC Input Module |
| Number of Inputs | 32 (16 points/common, 2 circuits) |
| Rated Input Voltage | 24 V DC |
| Rated Input Voltage Range | 20.4–26.4 V DC |
| Input Impedance | 3.9 kΩ |
| Input Current | 6 mA typical (at 24 V DC) |
| ON Voltage / ON Current | 15.4 V DC min. / 3 mA min. |
| OFF Voltage / OFF Current | 5 V DC max. / 1 mA max. |
| ON/OFF Response Time | 8.0 ms max (adjustable 0–32 ms in PLC setup) |
| Simultaneously ON Points | 70% (11 points/common at 24 V DC) |
| Insulation Resistance | 20 MΩ min. (100 V DC) |
| Dielectric Strength | 1,000 V AC for 1 minute (10 mA max leakage) |
| Internal Current Consumption (5 V DC) | 150 mA max |
| Fujitsu Connector | Supported |
| Weight | 0.63 lbs (0.28 kg) |
Information About CS1W-ID231
The CS1W-ID231 is part of Omron’s CS1 product line and functions as a high-density DC input module for programmable controller systems. It supports 32 digital inputs arranged as 16 points per common across two circuits, allowing organized and efficient wiring. The module operates within a rated input voltage range of 20.4 to 26.4 V DC and features adjustable ON/OFF response times configurable through the PLC setup. Designed for industrial environments, it includes reinforced insulation characteristics and supports Fujitsu connector interfaces for structured panel wiring.
Key Features:
- 32 Digital Inputs: Provides high-density input capacity (16 points/common, 2 circuits).
- 24 V DC Operation: Rated input voltage with 20.4–26.4 V DC operating range.
- Adjustable Response Time: ON/OFF response configurable from 0 to 32 ms (8 ms max standard).
- Low Input Current: 6 mA typical at 24 V DC for efficient signal processing.
- Defined Switching Thresholds: ON at 15.4 V DC min./3 mA; OFF at 5 V DC max./1 mA.
- Fujitsu Connector Support: Enables organized and reliable wiring connections.
- High Insulation Resistance: 20 MΩ minimum between external terminals and GR terminal.
- Dielectric Strength: 1,000 V AC isolation for 1 minute at 10 mA max leakage.
The CS1W-ID231 delivers the reliability and precision required for high-density digital input acquisition in industrial PLC systems.
