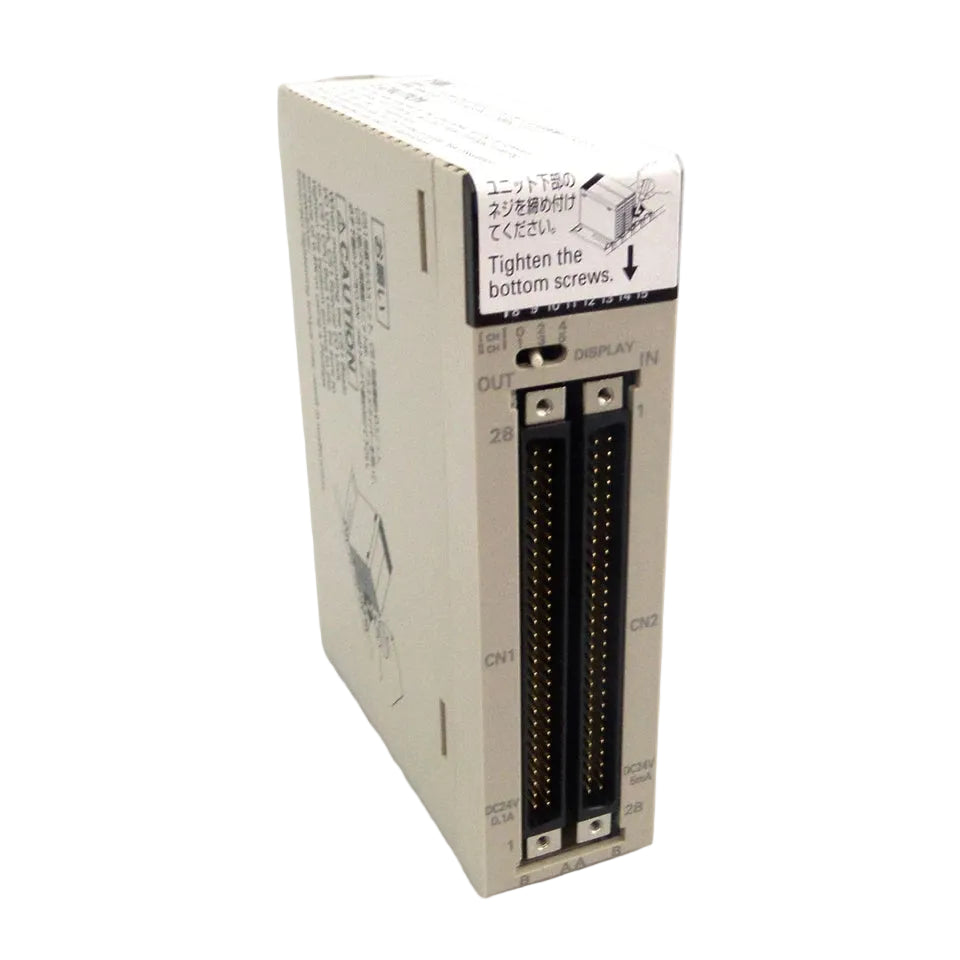

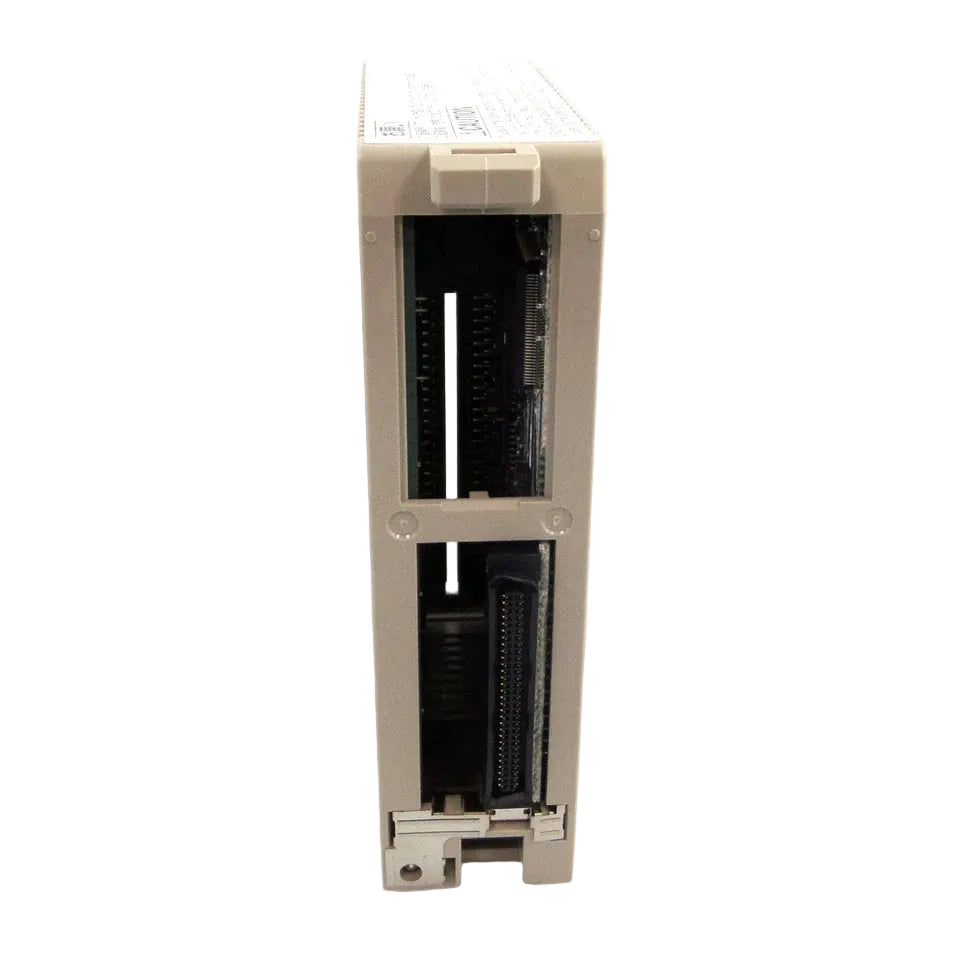

CS1W-MD292 | Omron CS Series PLC Basic I O Module 48 Digital Inputs 48 Transistor Outputs 12–24 VDC
- Regular price
- $2,749.00
- Sale price
- $2,749.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CS1W-MD292
Description
The Omron CS1W-MD292 is a basic I/O module designed to provide combined digital input and transistor output functionality within CS Series PLC systems. It supports 48 DC digital inputs and 48 solid-state transistor outputs for reliable signal processing in industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Programmable Logic Controllers |
| Part Number | CS1W-MD292 |
| Subcategory | PLC I/O Modules |
| PLC Series | CS Series |
| Module Type | Basic I/O Unit |
| Number of Digital Inputs | 48 |
| Number of Digital Outputs | 48 |
| Output Type | Solid State Transistor |
| Input Voltage | 12–24 VDC |
| Output Voltage | 12–24 VDC |
| Output Current Per Point | 0.1 A |
| Current Consumption | 0.35 A at 5 VDC system |
| Mounting Type | Backplane |
| Termination Style | Rectangular Connector |
| Application | Digital Signal Input And Output Control |
| Weight | 3.1 lbs |
Information About CS1W-MD292
The CS1W-MD292 is a combined input and output module from Omron’s CS Series PLC platform, designed to simplify system architecture by integrating digital inputs and transistor outputs in a single unit. It supports DC input signals and solid-state transistor outputs suitable for fast and frequent switching operations. The module installs directly into the PLC backplane and interfaces with field devices through rectangular connectors. Its design supports stable operation in industrial automation systems where space efficiency and reliable signal handling are required.
Key Features
- Combined I/O Module Design: Integrates 48 digital inputs and 48 digital transistor outputs in a single module to reduce rack space and simplify wiring.
- DC Input Signal Support: Accepts 12–24 VDC input signals commonly used with sensors, switches, and proximity devices.
- Solid-State Transistor Outputs: Provides fast and wear-free switching suitable for high-frequency control applications.
- Consistent Output Current Rating: Supports up to 0.1 A per output point for reliable operation of DC loads.
- CS Series System Compatibility: Designed for seamless integration with Omron CS Series PLC CPUs and expansion racks.
- Backplane Mounting Architecture: Ensures secure electrical connection and stable data communication within the PLC system.
- Efficient Power Consumption: Optimized for controlled current usage within the 5 V system power budget.
The CS1W-MD292 delivers the reliability and precision required for efficient digital input and output control in CS Series PLC-based automation systems.
