CS1W-NC133 | Omron Single-Axis Position Control PLC Module 500 kHz Line-Driver Output

Description

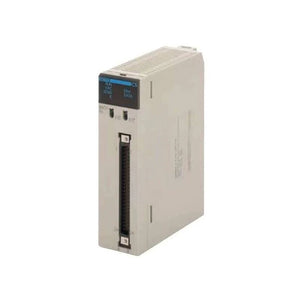

The Omron CS1W-NC133 is a single-axis position control unit designed for CS Series PLC systems. It provides line-driver pulse string output with a maximum frequency of 500 kHz, enabling accurate motion control in industrial automation applications. This module integrates directly into the PLC backplane to support precise positioning tasks such as indexing, feeding, and component alignment.

Technical Specifications

Information About  CS1W-NC133

The CS1W-NC133 is a motion control module from Omron’s CS1W series, engineered for integration with CS Series programmable logic controllers. It is designed as a single-axis positioning unit that generates high-speed pulse outputs via a line-driver interface for controlling servo drives and stepper motor systems. The module mounts directly onto the PLC backplane and utilizes a D-Sub connector for secure signal termination. Built for industrial control panels, it complies with CE, CSA, Lloyd, NK, and UL standards, making it suitable for regulated automation environments.

Key Features:

• Single-Axis Position Control: Provides dedicated control for one motion axis in PLC-based systems.

• Line-Driver Pulse Output: Ensures reliable high-speed pulse transmission with reduced electrical noise.

• 500 kHz Output Frequency: Supports high-resolution positioning and rapid motion sequences.

• Backplane Mounting: Installs directly into the CS Series PLC rack for streamlined system integration.

• D-Sub Termination: Offers secure and standardized signal connection for motion devices.

• CS Series Compatibility: Specifically designed for use with Omron CS Series PLC platforms.

• Industrial Compliance Certifications: Meets CE, CSA, Lloyd, NK, and UL requirements.

The CS1W-NC133 delivers the reliability and precision required for single-axis motion control in industrial automation systems.
