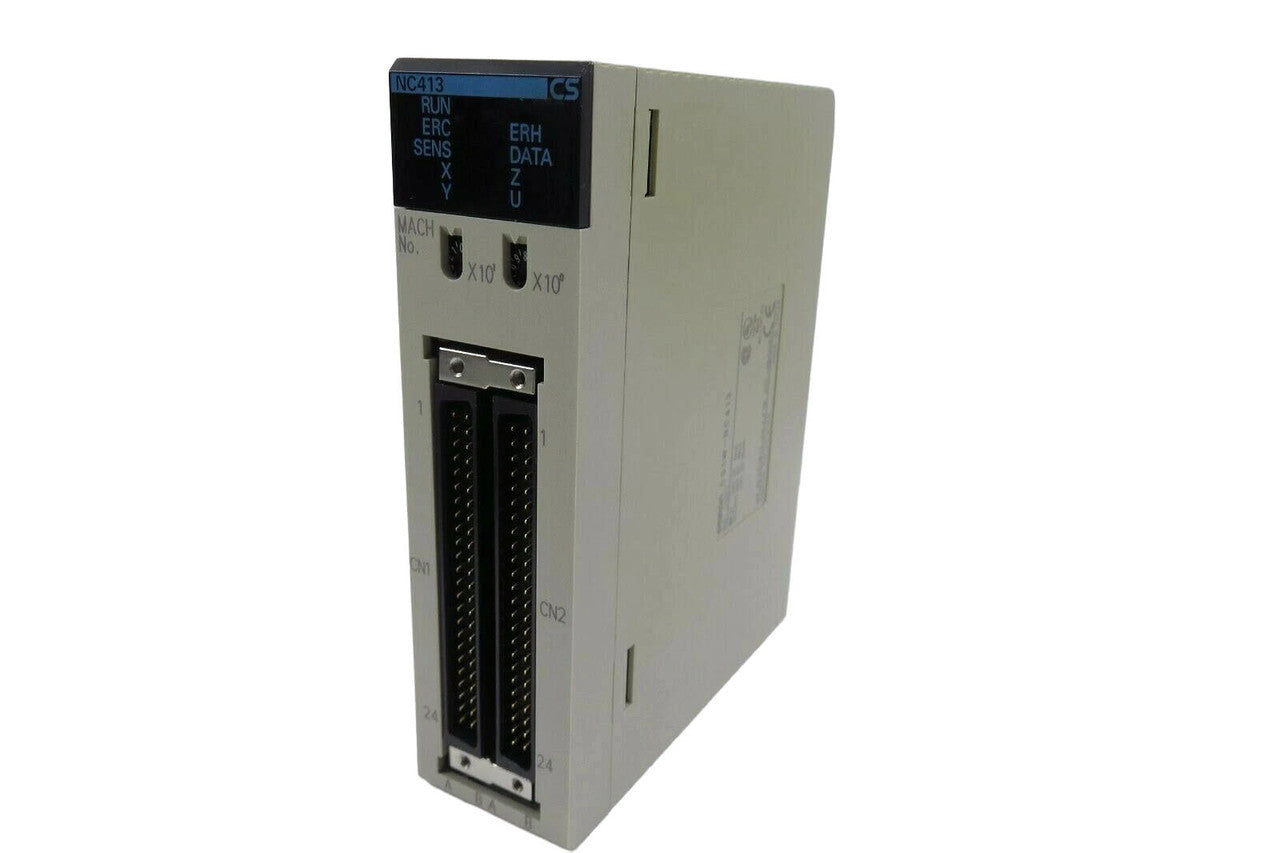

CS1W-NC413 | Omron Position Control Unit 4 Axes
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: CS1W-NC413
Description
The CS1W-NC413 is a 4-axis position control unit for CS-series PLCs, supporting open-loop control via pulse train output. It enables precise, programmable positioning through both memory-based and direct operation modes.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
PLCs/Machine Control
|
| Part Number | CS1W-NC413 |
| Subcategory | PLC Module/Rack |
| Power Supply Voltage | 5 VDC (for the PCU itself), 24 VDC (external power supply), 5 VDC (external power supply; line driver output only) |
| Allowable Power Supply Voltage Range | 4.75 to 5.25 VDC (for the PCU itself), 21.6 to 26.4 VDC (external power supply), 4.75 to 5.25 VDC (external power supply; line driver output only) |
| Internal Current Consumption | 360 mA max. at 5 VDC |
| Current Consumption of External Power Supply | 90 mA max. at 24 VDC |
| Applicable PLC | CS-series PLCs |
| I/O Requirements | 20 words, 1 slot |
| Control System | Open-loop control by pulse train output |
| Number of Control Axes | 4 axes |
| Control Unit | Pulse |
| Positioning Operations | Two types: memory operation and direct operation |
| External Dimensions (HxWxD) | 130 × 35 × 101 mm |
| Weight | 0.3 kg |
Information About CS1W-NC413
The CS1W-NC413 is a position control unit (PCU) from the Omron SYSMAC CS1 series, developed for managing up to four motion control axes within an open-loop system. It operates on 5 VDC internally while using 24 VDC externally to power associated line driver outputs and connected systems. This module transmits positioning signals using pulse trains and supports two operation modes—memory operation for stored sequences and direct operation for real-time control. Designed for compatibility with CS-series PLCs, it consumes 20 I/O words and occupies a single slot in the rack. Compact in form yet capable in function, the CS1W-NC413 provides reliable multi-axis motion control in a wide range of automated environments.
Key Features:
- Multi-Axis Motion Control: Supports control of up to 4 independent axes for coordinated machine movement and automation sequences.
- Open-Loop Control via Pulse Output: Uses pulse train output for accurate positioning without feedback systems, ideal for stepper and open-loop servo motors.
- Dual Positioning Modes: Offers both memory operation for pre-programmed tasks and direct operation for manual or dynamic input control.
- Flexible Power Compatibility: Operates with 5 VDC for internal circuits and 24 VDC for external control devices and line driver signal outputs.
- Compact Rack Installation: Occupies only one slot in the PLC rack and integrates seamlessly with Omron CS-series controllers.
- Low Power Consumption: Draws a maximum of 360 mA internally and only 90 mA from the external 24 VDC supply, optimizing energy usage.
- Precise I/O Allocation: Requires 20 words of I/O memory, enabling streamlined control and monitoring within the PLC system.
- Built-in Line Driver Support: Dedicated 5 VDC output supports stable signal transmission over longer distances.
- Lightweight Construction: Weighs just 0.3 kg, minimizing panel load and simplifying installation and maintenance.
- Optimized for CS-Series PLCs: Fully compatible with the SYSMAC CS1 platform, ensuring reliable system communication and configuration.
The CS1W-NC413 delivers accurate 4-axis motion control in a compact module with support for programmable and real-time positioning.
