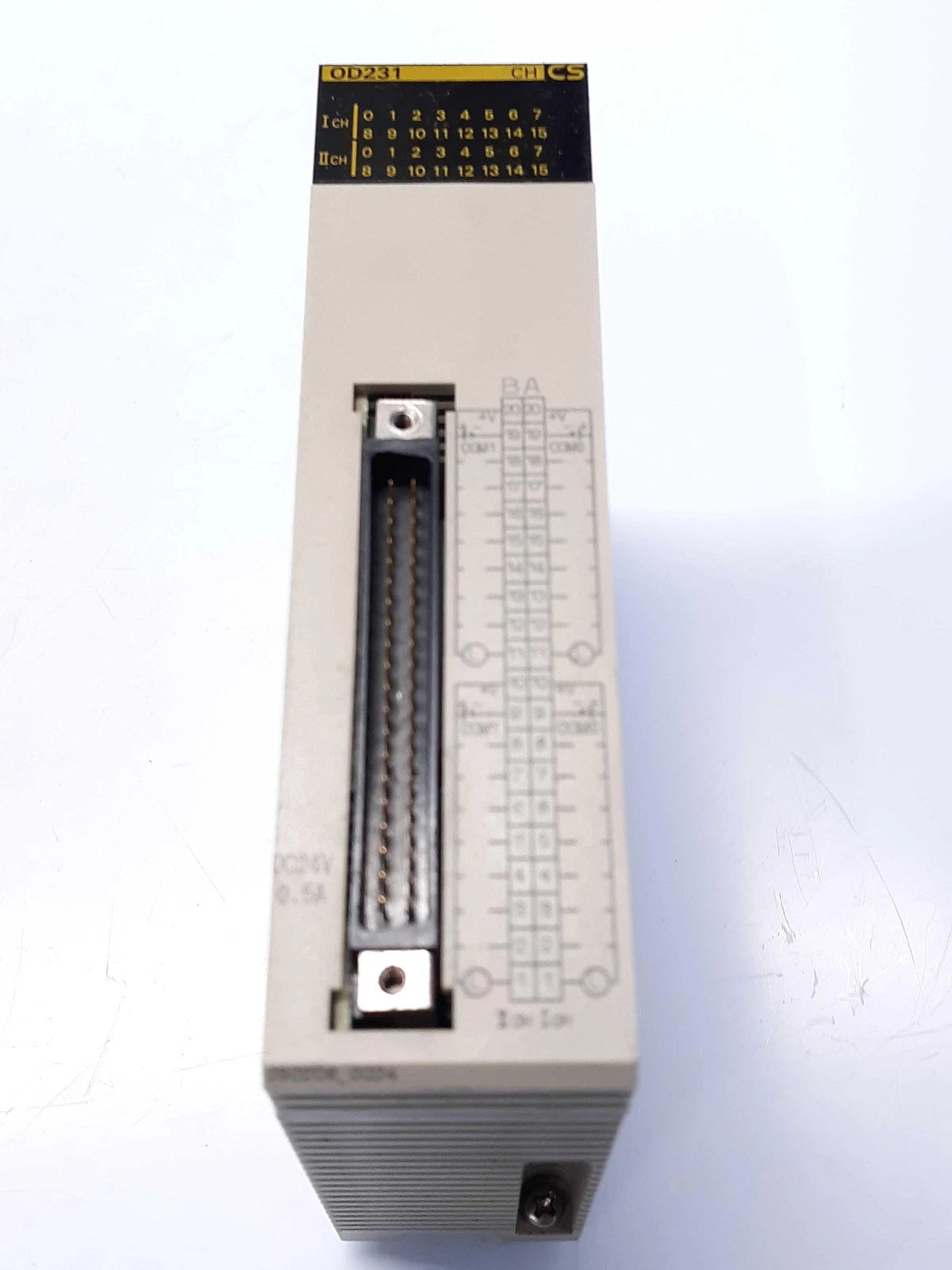

CS1W-OD231 | Omron 32-Point NPN Transistor Output Module 12–24VDC
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CS1W-OD231
Description
The Omron CS1W-OD231 is a 32-point digital output module designed for the SYSMAC CS1 Series PLC platform. It provides NPN transistor (sinking) outputs operating at 12–24 VDC for high-speed and reliable control of field devices. The Omron CS1W-OD231 is engineered for precise switching of DC loads in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | PLCs/Machine Control |
| Part Number | CS1W-OD231 |
| Subcategory | PLC Module/Rack |
| Product Type | Digital Output Module |
| Series | SYSMAC CS1 |
| Output Type | NPN Transistor (Sinking) |
| Number of Outputs | 32 Points |
| Operating Voltage | 12–24 VDC |
| Maximum Current Per Point | 0.5 A |
| Mounting | Backplane / Rack Mount |
| Operating Temperature | 0 to +55 °C |
| Compliance | cULus Class I Div 2, EC Directives, NK, Lloyd |
| Manufacturer | Omron |
| Part Aliases | CS1WOD231 |
| Weight | 200 g |
Information About CS1W-OD231
The CS1W-OD231 is a SYSMAC CS1 Series output module built for installation on CS1 PLC backplanes or racks. It features 32 NPN transistor outputs configured for sinking operation, allowing direct control of DC actuators, relays, and indicator devices. With a 12–24 VDC operating voltage range and up to 0.5 A per output point, it supports stable and efficient load switching in control panels. The module is certified to multiple industrial standards, including cULus Class I Div 2 and EC directives, ensuring suitability for demanding industrial environments.
Key Features:
- 32 Digital Outputs: Provides high-density DC output control in a single module.
- NPN Sinking Transistor Type: Designed for sinking configuration in DC control circuits.
- 12–24 VDC Operation: Compatible with common industrial DC voltage systems.
- 0.5 A Per Output: Supports reliable switching of medium-current loads.
- CS1 Series Integration: Mounts directly to SYSMAC CS1 PLC backplanes or racks.
- Industrial Compliance: Certified to cULus Class I Div 2 and EC standards.
- Wide Operating Temperature Range: Rated for operation from 0 to +55 °C.
The CS1W-OD231 delivers the reliability and precision required for high-density DC output control in PLC-based automation systems.
